(5.652[22]) - WINDSHIELD WASHER - FRONT WINDSCREEN WIPER (87442843)

Запчасти Case 325 (5.652[22]) - WINDSHIELD WASHER - FRONT WINDSCREEN WIPER (87442843) (10) - Cab/Cowlings

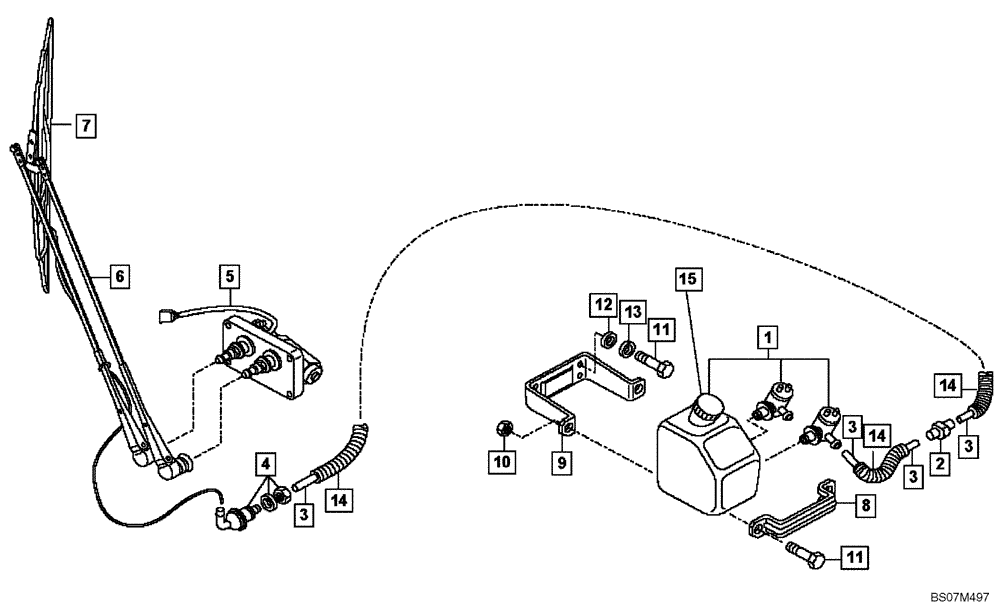

Схема запчастей Case 325 - (5.652[22]) - WINDSHIELD WASHER - FRONT WINDSCREEN WIPER (87442843) (10) - Cab/Cowlings
2
14
11
3
4
14
15
11
3
6
1
9
5
14
8
13
3
7
3
12
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900195431

RESERVOIR, WINDSHIEL

1шт.

2

8900195432

HYDRAULIC VALVE

2шт.

3

8900095169

HOSE

1шт.

4

8900127250

HYD CONNECTOR

1шт.

5

8900127244

WIPER MOTOR

CENTER

1шт.

5

8900127244R

REMAN-WIPER MOTOR

325 ARTICULATED TRUCK, CENTER (1/01-)

1шт.

5

8900127244C

CORE-WIPER MOTOR

Return Number

1шт.

6

8900127239

WIPER ARM

1шт.

8998340707

HOLDER

Wiper Arm Extension

1шт.

7

8900127240

WIPER BLADE

1шт.

8

8900113951

BRACKET

1шт.

9

8900174974

SUPPORT

1шт.

10

8917512731

LOCK NUT

Replaces 8900101322 Nut, S.L. Used On Some Models

2шт.

11

8900140610

BOLT

M6 x 20

6шт.

12

8900141689

COLLAR

COLLAR; Replaces 8900103132 Washer, Spring Used On Some Models

4шт.

13

8900140614

WASHER

M6; Replaces 8900140731 Washer, Flat

4шт.

14

8900095153

FLEXIBLE SHEATH

1шт.

15

8998340606

CAP

1шт.
