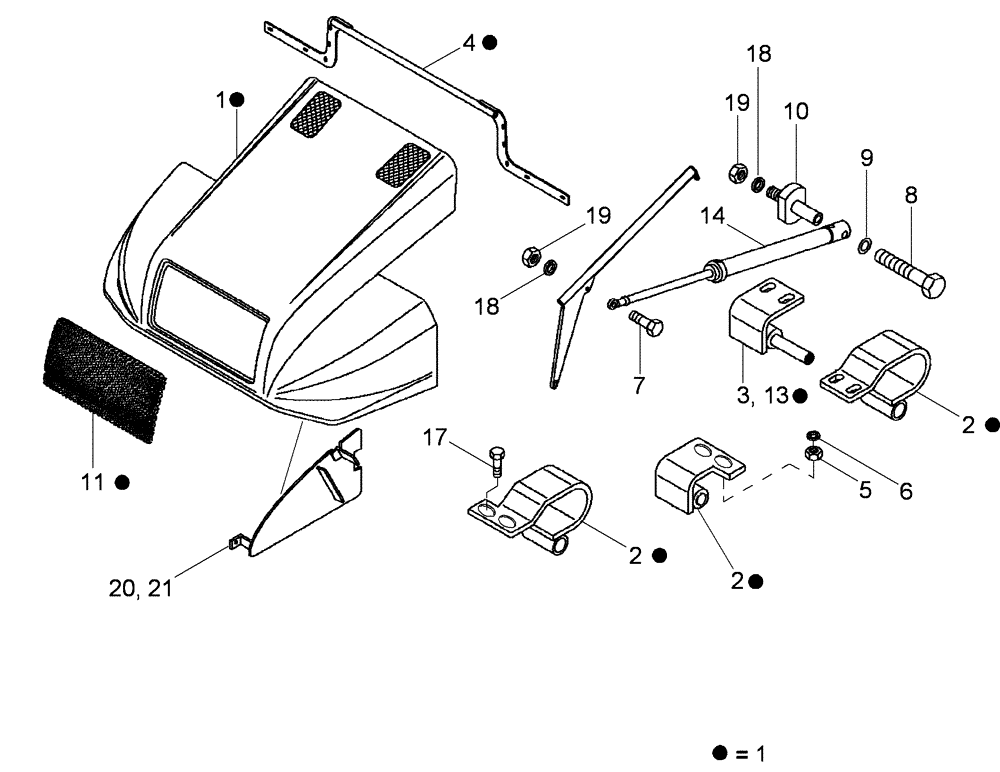

Запчасти Case 325 (5.601C[01]) - HOODS (10) - Cab/Cowlings

1

8900195364

ENGINE HOOD

1шт.

2

8900191643

HINGE

Prior to SN HHD000241: If Used; Interchangeable Side To Side - Reference Service Bulletin NAT SB 002 05 To Correctly Identify

2шт.

2

8900132107

HINGE

RH: prior to SN HHD000241: If Used - Reference Service Bulletin NAT SB 002 05 To Correctly Identify

1шт.

2

8900132108

HINGE

LH; prior to SN HHD000241: If Used - Reference Service Bulletin NAT SB 002 05 To Correctly Identify

1шт.

3

8900191645

HINGE

1шт.

4

8900191647

ROD

1шт.

5

8900025351

NUT

M12

4шт.

6

8900113173

WASHER

M12 x 24

4шт.

7

8900140406

BOLT

M12 x 1.5 x 30

2шт.

8

8900001826

BOLT

M8 x 16

2шт.

9

8900141697

WASHER

2шт.

10

8900193019

PIN

2шт.

11

8900127720

GRILLE

1шт.

13

8900127717

HINGE

Right

1шт.

14

8900195571

GAS STRUT

2шт.

15

8900127718

BRACKET

Left

1шт.

16

8900127719

BRACKET

Right

1шт.

17

8900001048

BOLT

4шт.

18

8900001398

WASHER

4шт.

19

8900055100

SPECIAL NUT

4шт.

20

8998198165

SHIELD

Left

1шт.

21

8998198166

SHIELD

Right

1шт.
