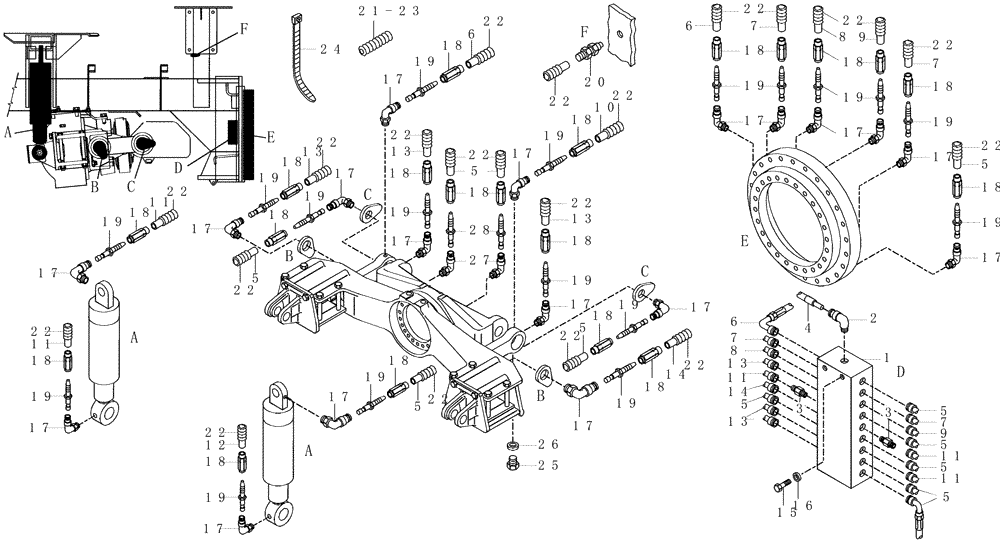

Запчасти Case 325 (6.758A[01]) - CENTRALIZED LUBRICATION - FRONT FRAME (09) - Implement / Hydraulics / Frame / Brakes

1

8900190689

CONTROL VALVE

1шт.

2

8900190690

HYD CONNECTOR

1шт.

3

8900190691

HYDRAULIC VALVE

18шт.

4

8900190776

FLEXIBLE HOSE

1шт.

5

8900190763

FLEXIBLE HOSE

6шт.

6

8900190762

FLEXIBLE HOSE

2шт.

7

8900190761

FLEXIBLE HOSE

2шт.

8

8900190759

FLEXIBLE HOSE

1шт.

9

8900190760

FLEXIBLE HOSE

1шт.

11

8900190767

FLEXIBLE HOSE

2шт.

13

8900190765

FLEXIBLE HOSE

2шт.

14

8900190764

FLEXIBLE HOSE

1шт.

15

8900010369

BOLT

M6 x 40

2шт.

16

8900955275

LOCK WASHER

2шт.

17

8900190692

HYD CONNECTOR

16шт.

18

8900190694

BUSHING

18шт.

19

8900190695

HYD CONNECTOR

16шт.

20

8900190697

LUBE NIPPLE

1шт.

21

8900095181

FLEXIBLE SHEATH

DIA. 25.4 x 21.3

1шт.

Order Length

1шт.

22

8900095195

FLEXIBLE SHEATH

DIA. 13 x 9.9

1шт.

Order Length

1шт.

23

8900095426

FLEXIBLE SHEATH

DIA. 34.5 x 29

1шт.

Order Length

1шт.

24

8900046313

COLLAR

1шт.

25

8900194277

PLUG

2шт.

26

8900115474

COPPER SEAL

2шт.

27

8998197808

HYD CONNECTOR

2шт.

28

8900190696

HYD CONNECTOR

2шт.
