(3.414A[02A]) - STEERING CYLINDER - COMPONENTS (89500414549)

Запчасти Case 325 (3.414A[02A]) - STEERING CYLINDER - COMPONENTS (89500414549) (09) - Implement / Hydraulics / Frame / Brakes

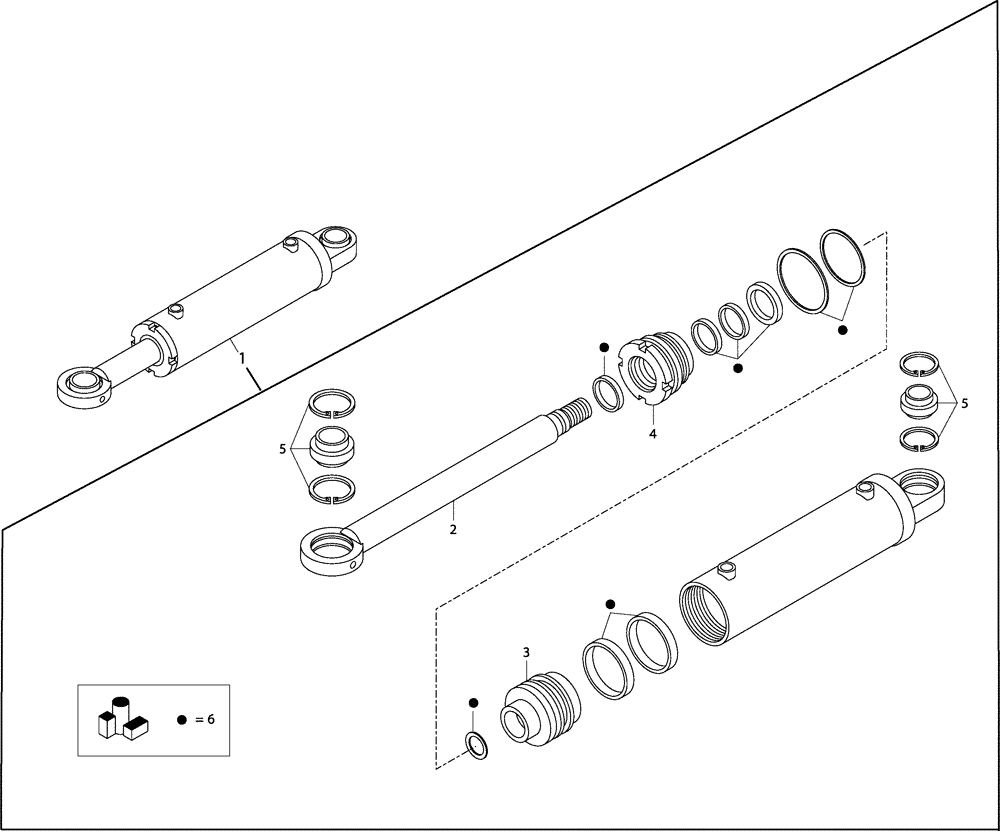

Схема запчастей Case 325 - (3.414A[02A]) - STEERING CYLINDER - COMPONENTS (89500414549) (09) - Implement / Hydraulics / Frame / Brakes
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500414549

CYLINDER

Include(s) 2 - 6

1шт.

2

8998340190

PISTON ROD

Replaces 8900132109 Rod, Piston

1шт.

3

8900132110

PISTON

1шт.

4

8900132111

GLAND

RETAINER

1шт.

5

8900134931

BALL JOINT

Replaces 8900130605 Ball Joint Used On Some Models; Secured With 1 Retaining Ring

2шт.

6

8900134932

SEAL KIT

Replaces 8900127721 Kit, Seals Used On Some Models

1шт.

7

8900010474

ROLL PIN

No Longer Required; Not Illustrated

2шт.
