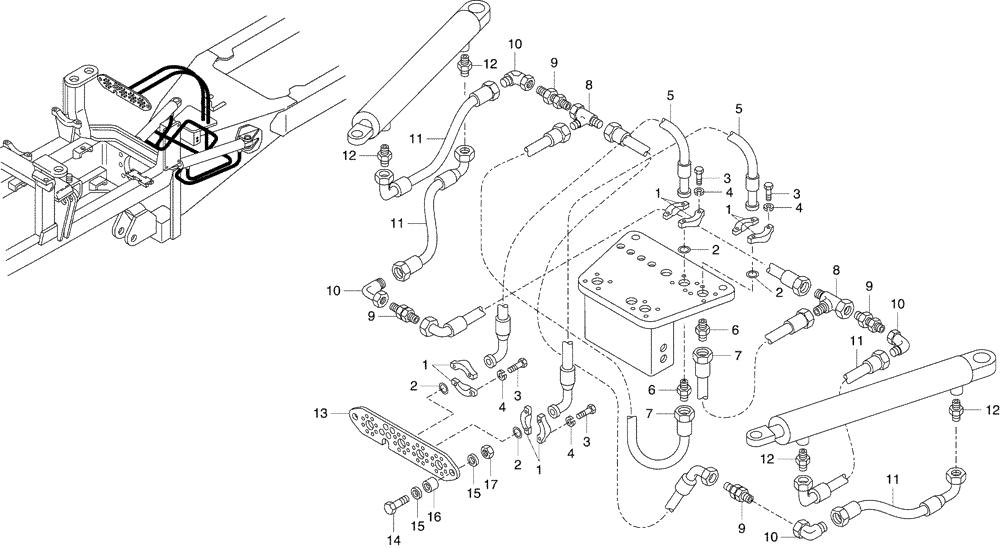

Запчасти Case 325 (3.413[07A]) - POWER STEERING - HYDRAULIC SYSTEM (325 EU / PIN 455275 AND AFTER)(325 NA / PIN HHD000108 AND AFTER)(330 EU / PIN HHD0000243 AND AFTER) (09) - Implement / Hydraulics / Frame / Brakes

1

8900191134

FLANGE

8шт.

2

8900005743

SEALING RING

SEALRING

4шт.

3

8900103551

BOLT

M8 x 30

16шт.

4

8900956220

LOCK WASHER

16шт.

5

8900190960

FLEXIBLE HOSE

2шт.

6

8900191010

HYD CONNECTOR

2шт.

7

8900190991

FLEXIBLE HOSE

4шт.

8

8900192526

HYD CONNECTOR

2шт.

9

8900191093

HYD CONNECTOR

4шт.

10

89500401762

FLEXIBLE HOSE

2шт.

11

89500401763

FLEXIBLE HOSE

1шт.

12

8960750121

HYD CONNECTOR

1шт.

13

8960530206

PLATE

1шт.

14

8900125724

BOLT

M12 x 70

1шт.

15

8900001398

WASHER

1шт.

16

8960320011

BUSHING

1шт.

17

8900056764

NUT

M12

1шт.
