(3.413[03]) - POWER STEERING - COMPONENTS (87442805)

Запчасти Case 325 (3.413[03]) - POWER STEERING - COMPONENTS (87442805) (09) - Implement / Hydraulics / Frame / Brakes

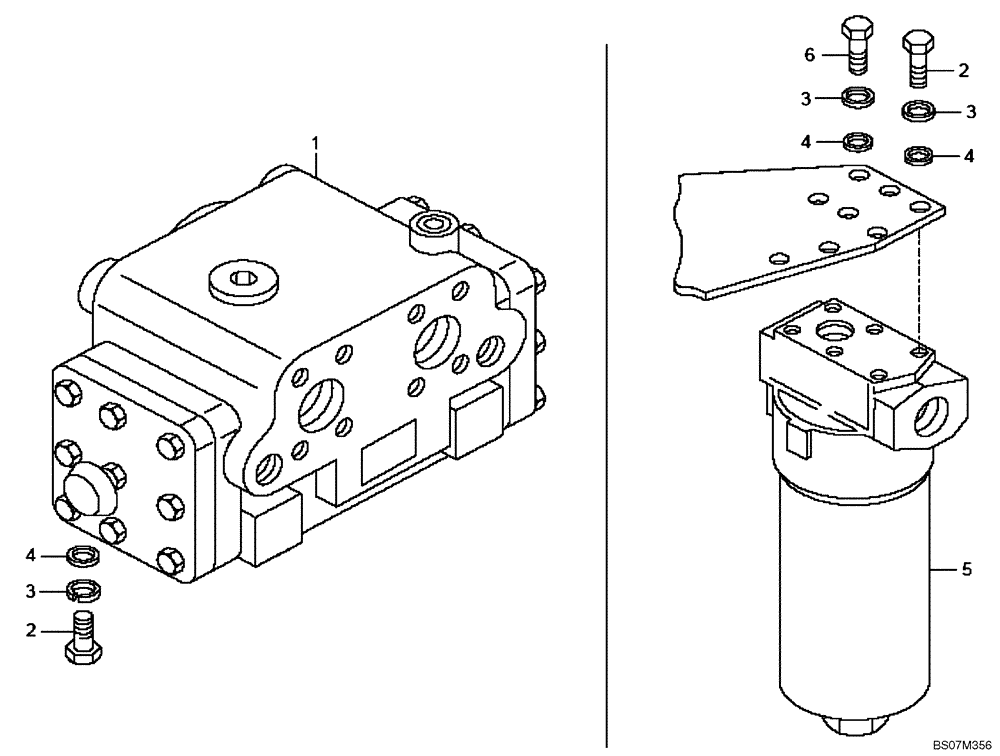

Схема запчастей Case 325 - (3.413[03]) - POWER STEERING - COMPONENTS (87442805) (09) - Implement / Hydraulics / Frame / Brakes
2
4
3
3
2
5
6
4
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900194527

CONTROL VALVE

1шт.

See Page : 3.413 10

1шт.

Serial Number : 325 EU Until 455229, 455231 To 455274 / 325 NA Until HHD0000107 / 330 EU Until 455175, 455177 To 455246

1шт.

1

89500404277

CONTROL VALVE

1шт.

See Page : 3.413 10A

1шт.

Serial Number : 325 EU 455230, 455275 And After / 325 NA HHD0000108 And After / 330 EU 455176, 455247 And After

1шт.

2

8900140488

BOLT

M10 x 1,5 x 25

5шт.

3

8900001049

LOCK WASHER

Qty Was 5

5-9шт.

4

8900113173

WASHER

Qty Was 5

5-9шт.

5

8960940013

FILTER ASSY

1шт.

See Page : 3.413 08

1шт.

6

8900001048

BOLT

M10 x 1.5 x 25; If Used

4шт.
