(3.400A[13]) - BRAKE SYSTEM - HYDRAULIC OIL FILTER (89500401670)

Запчасти Case 325 (3.400A[13]) - BRAKE SYSTEM - HYDRAULIC OIL FILTER (89500401670) (09) - Implement / Hydraulics / Frame / Brakes

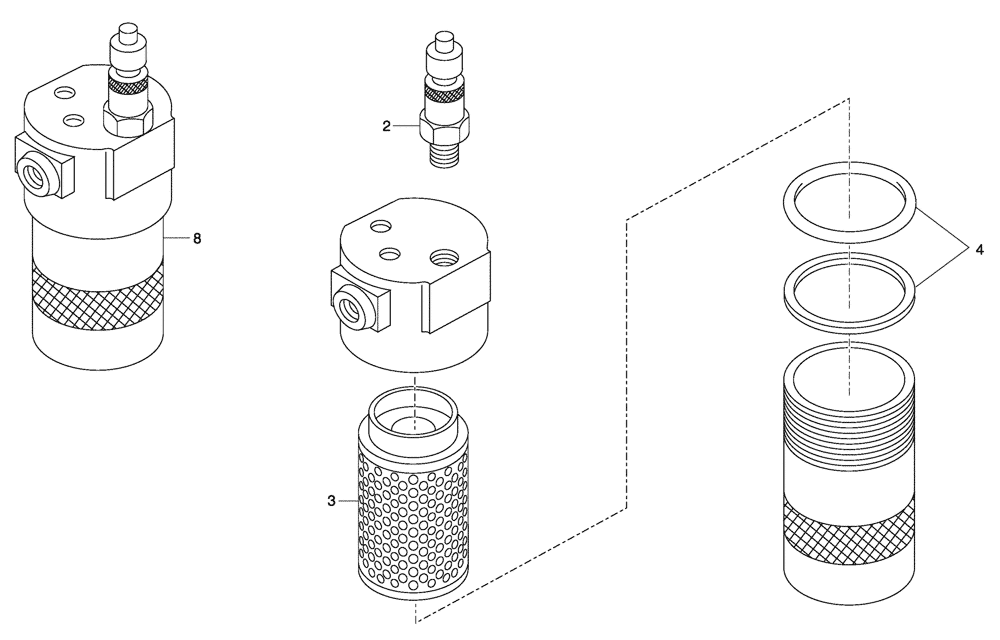

Схема запчастей Case 325 - (3.400A[13]) - BRAKE SYSTEM - HYDRAULIC OIL FILTER (89500401670) (09) - Implement / Hydraulics / Frame / Brakes
8
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

8

89500401670

FILTER ASSY

1шт.

Consists of 2, 3, 4

1шт.

2

8900129942

PRESSURE SWITCH

Brake, (Used for Brake Light)

1шт.

3

8900129941

HYDRAULIC OIL FILTER

1шт.

4

8900129943

SET OF GASKET

SET OF JOINTS

1шт.
