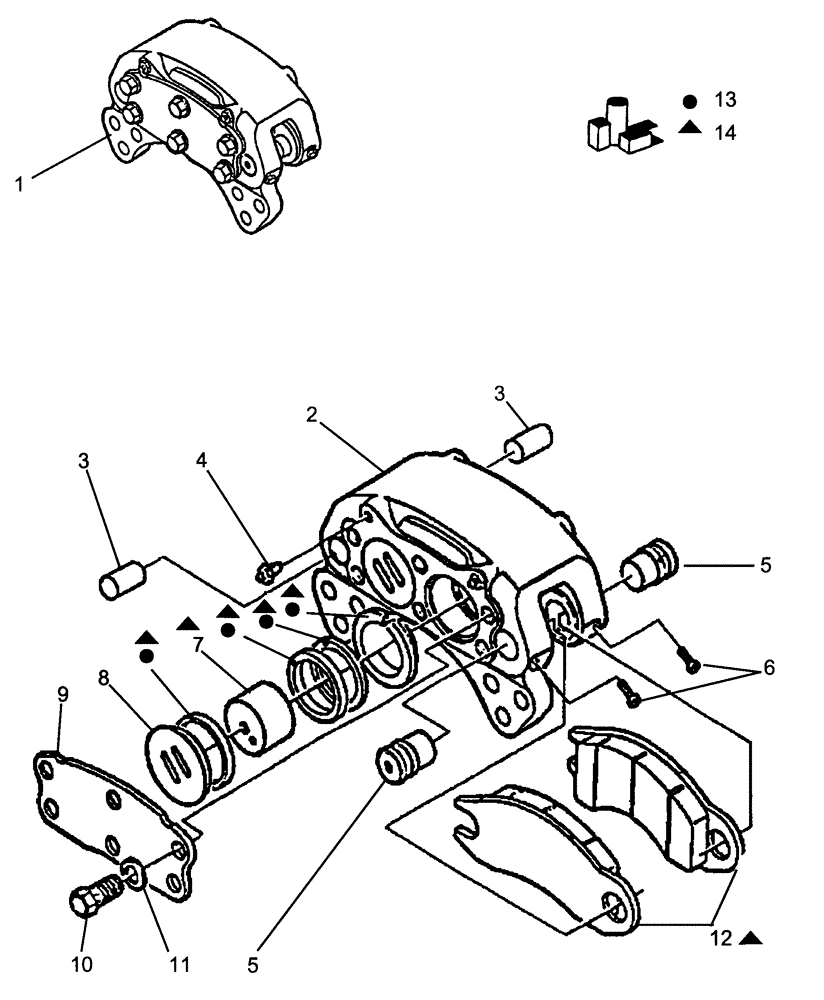

Запчасти Case 325 (3.400A[08A]) - BRAKE SYSTEM - BRAKE CALIPER (09) - Implement / Hydraulics / Frame / Brakes

1

8900128694

BRAKE

Used On 325 N.A. Tier 1 thru S/N HHD0000107, Tier 2 S/N HHD0000108 & After; Used On 325 EU Tier 1 thru S/N 445274, Tier 2 S/N 455275 & After; Used On 330 Tier 1 thru S/N HHD0000242, Tier 2 S/N HHD0000243 & After

1шт.

Consists of 2 to14

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

8900128698

BUSHING

2шт.

4

8900128695

BREATHER

2шт.

5

8900128697

BUSHING

2шт.

6

8900128696

BOLT

4шт.

7

8900128904

JACK PISTON

4шт.

8

8900128903

GASKET

2шт.

9

8900128902

PLATE

1шт.

10

8900128700

BOLT

6шт.

11

8900128901

WASHER

6шт.

12

8900130362

BRAKE PAD

1шт.

13

8900128905

SEAL KIT

1шт.

14

8900128906

BRAKE PAD

1шт.
