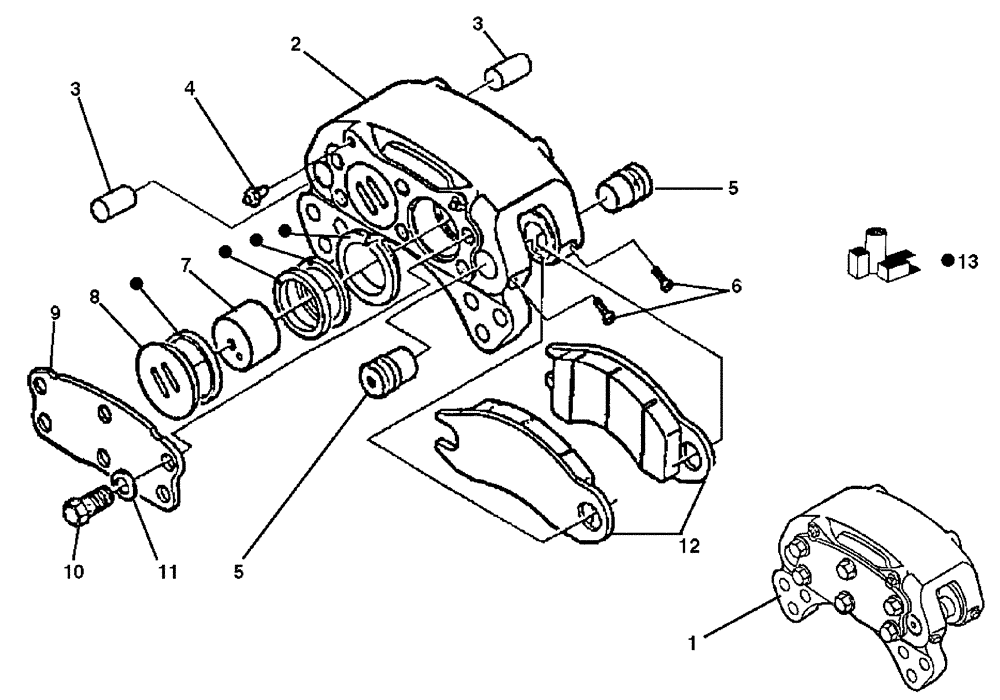

Запчасти Case 325 (3.400A[08]) - BRAKE SYSTEM - BRAKE CALIPER (09) - Implement / Hydraulics / Frame / Brakes

1

8960830004

BRAKE CALIPER

Not Used On 330 280hp or 330 300hp Models; See Figure 3.400A{08A} for Caliper Used On the 330; 325 Until 455274; 325 until HHD0000107

1шт.

Consists of 2 to13

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

8963100230

PIN

2шт.

4

8900112775

HYDRAULIC VALVE

6шт.

5

8900112773

PIN

2шт.

6

8900112774

BOLT

4шт.

7

8900112776

PLUNGER

4шт.

8

8900112772

PLUG

2шт.

9

8963100229

PLATE

1шт.

10

8900112769

BOLT

6шт.

11

8900112770

WASHER

6шт.

12

8960830032

BRAKE PAD

1шт.

13

8900124955

SEAL KIT

1шт.
