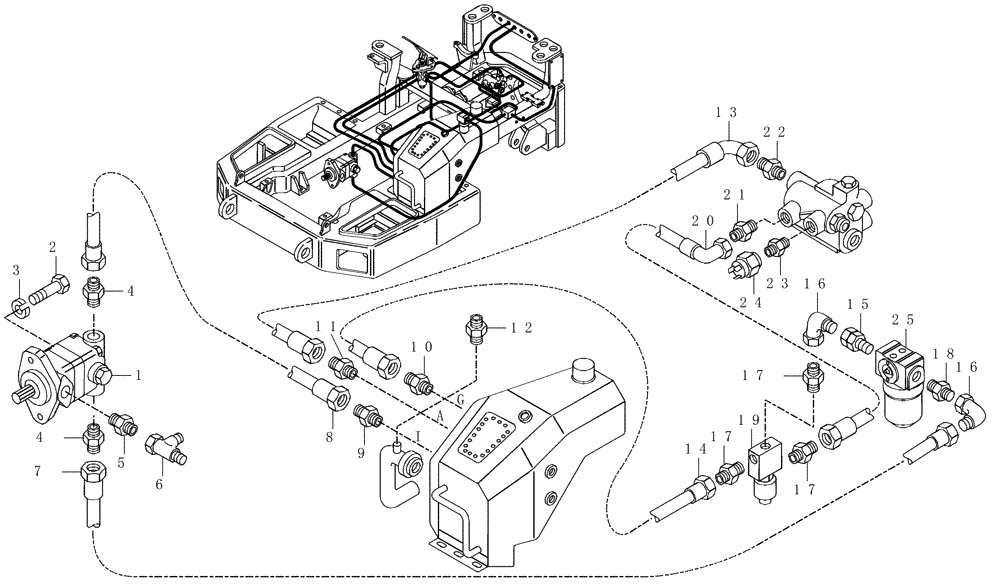

Запчасти Case 325 (3.400[05]) - HYDRAULIC CIRCUIT BRAKE SYSTEM - FRAME PART (09) - Implement / Hydraulics / Frame / Brakes

1

8900194251

HYDRAULIC PUMP

1шт.

2

8900001048

BOLT

M10 x 30

2шт.

3

8900001049

LOCK WASHER

2шт.

4

8900191171

HYD CONNECTOR

2шт.

5

8900194250

HYD CONNECTOR

1шт.

6

8900191128

HYD CONNECTOR

1шт.

7

8900195696

FLEXIBLE HOSE

1шт.

8

8900193878

FLEXIBLE HOSE

1шт.

9

8900191069

HYD CONNECTOR

1шт.

10

8900191014

HYD CONNECTOR

1шт.

11

8900191067

HYD CONNECTOR

1шт.

12

8900193899

FLEXIBLE HOSE

1шт.

13

8900194940

FLEXIBLE HOSE

1шт.

14

8900193878

FLEXIBLE HOSE

1шт.

15

8900195231

HYD CONNECTOR

1шт.

16

8960750228

HYD CONNECTOR

2шт.

17

8900191068

HYD CONNECTOR

3шт.

18

8900191069

HYD CONNECTOR

1шт.

19

8960700358

ELECTRO-VALVE

1шт.

20

8900193878

FLEXIBLE HOSE

1шт.

21

8900193939

HYD CONNECTOR

1шт.

22

89500400145

SWIVEL CONNECTION

1шт.

23

89500400140

SWIVEL CONNECTION

1шт.

24

8900194425

PRESSURE SWITCH

Brake

1шт.

25

8998198295

HYDRAULIC OIL FILTER

1шт.

See Page : 3.400A 12

1шт.
