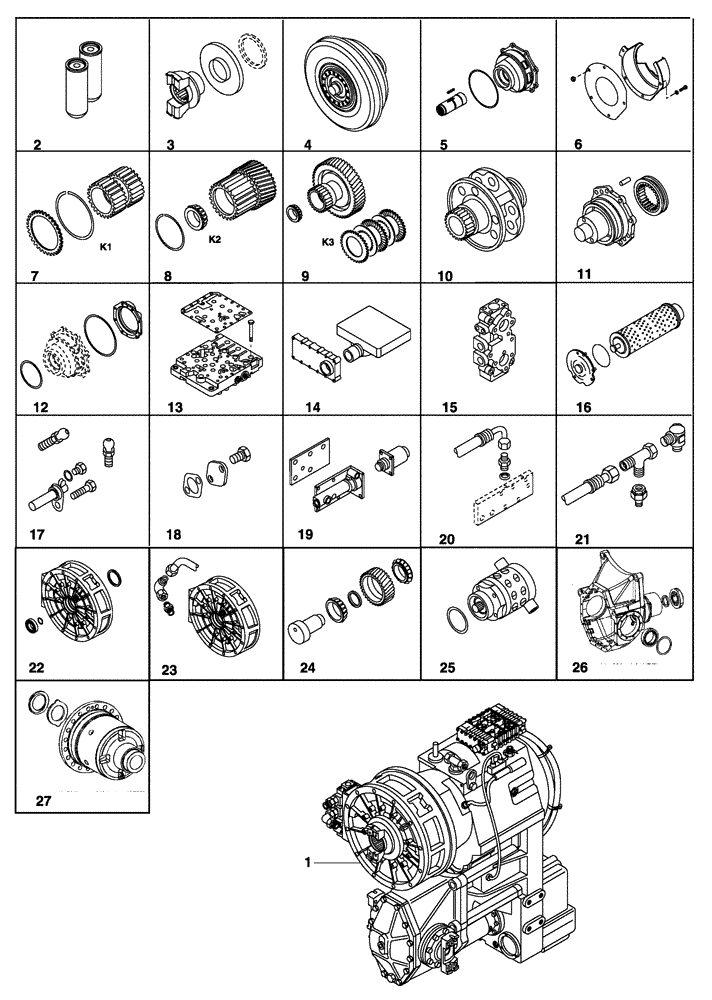

Запчасти Case 340B (18A00000059[001]) - SECTION INDEX, AUTOMATIC GEARBOX (89500407978) (03) - Converter / Transmission

1

89500407978

TRANSMISSION

ASSY; Include(s) Ref Items 2 Thru 27

1шт.

1

87316296

REMAN-TRANSMISSION

REMAN Transmission, w/Retarder, Remanufactured, Component Parts Not Serviced Separately

1шт.

1

87316297

CORE-TRANSMISSION

RETURN NUMBER, Use To Return Core For Credit When Using a Remanufactured Assembly

1шт.

2

REF

INSTRUCTION

Hydraulic Oil Filter (87453818)

1шт.

See Figure(s) 18A00000591

1шт.

2

REF

INSTRUCTION

Transmission Fill Tube (87453823)

1шт.

See Figure(s) 18A00000596

1шт.

2

REF

INSTRUCTION

Selector - Control Unit (87453829)

1шт.

See Figure(s) 18A00000603

1шт.

3

REF

INSTRUCTION

Input Flange (87453799)

1шт.

See Figure(s) 18A00000575

1шт.

4

REF

INSTRUCTION

Converter (87453797)

1шт.

See Figure(s) 18A00000573

1шт.

4

REF

INSTRUCTION

Input Shaft (87453798)

1шт.

See Figure(s) 18A00000574

1шт.

4

REF

INSTRUCTION

Temp Sensor (87453821)

1шт.

See Figure(s) 18A00000594

1шт.

5

REF

INSTRUCTION

Oil Pump (87453815)

1шт.

See Figure(s) 18A00000588

1шт.

6

REF

INSTRUCTION

Housing (87453800)

1шт.

See Figure(s) 18A00000576

1шт.

7

REF

INSTRUCTION

Coupling K1 - KV (87453802 - 87453803)

1шт.

See Figure(s) 18A00000578

1шт.

8

REF

INSTRUCTION

Coupling K2 - KR (87453804 - 87453805)

1шт.

See Figure(s) 18A00000579

1шт.

9

REF

INSTRUCTION

Coupling K3 - K4 (87453806 - 87453807)

1шт.

See Figure(s) 18A00000580

1шт.

10

REF

INSTRUCTION

Differential (87453808 - 87453809)

1шт.

See Figure(s) 18A00000581, 18A00000582

1шт.

11

REF

INSTRUCTION

Power Take Off (87453810 - 87453811) See Figure(s) 18A00000583

1шт.

12

REF

INSTRUCTION

Power Take Off (87453812)

1шт.

See Figure(s) 18A00000584

1шт.

13

REF

INSTRUCTION

Gearshift System (87453813)

1шт.

See Figure(s) 18A00000585

1шт.

14

REF

INSTRUCTION

Gearshift System (87453814)

1шт.

See Figure(s) 18A00000586, 18A00000587

1шт.

15

REF

INSTRUCTION

Pressure Regulator (87453816)

1шт.

See Figure(s) 18A00000589

1шт.

16

REF

INSTRUCTION

Filter (87453817)

1шт.

See Figure(s) 18A00000590

1шт.

17

REF

INSTRUCTION

Transmitters (87453819)

1шт.

See Figure(s) 18A00000592

1шт.

18

REF

INSTRUCTION

Filler Neck (87453823)

1шт.

See Figure(s) 18A00000596

1шт.

19

REF

INSTRUCTION

Control Unit (87453824)

1шт.

See Figure(s) 18A00000597

1шт.

20

REF

INSTRUCTION

Control Unit (87453824)

1шт.

See Figure(s) 18A00000598

1шт.

21

REF

INSTRUCTION

Oil Pipe (87453825 - 87453826)

1шт.

See Figure(s) 18A00000599

1шт.

22

REF

INSTRUCTION

Retarder (87453795)

1шт.

See Figure(s) 18A00000571

1шт.

23

REF

INSTRUCTION

Oil Lines (87453796)

1шт.

See Figure(s) 18A00000572

1шт.

24

REF

INSTRUCTION

Layshaft (87453801)

1шт.

See Figure(s) 18A00000577

1шт.

25

REF

INSTRUCTION

Emergency Steering Pump (87453820)

1шт.

See Figure(s) 18A00000593

1шт.

26

REF

INSTRUCTION

Differential Carrier - Connection Parts (87453828)

1шт.

See Figure(s) 18A00000602

1шт.

26

REF

INSTRUCTION

Differential Carrier (87453827)

1шт.

See Figure(s) 18A00000600

1шт.

27

REF

INSTRUCTION

Differential Carrier (87453827)

1шт.

See Figure(s) 18A00000601

1шт.
