(04B00000044[001]) - RADIATOR ASSY (P.I.N. HHD0340BN7PG58147 AND AFTER) (89500426229)

Запчасти Case 340B (04B00000044[001]) - RADIATOR ASSY (P.I.N. HHD0340BN7PG58147 AND AFTER) (89500426229) (01) - ENGINE

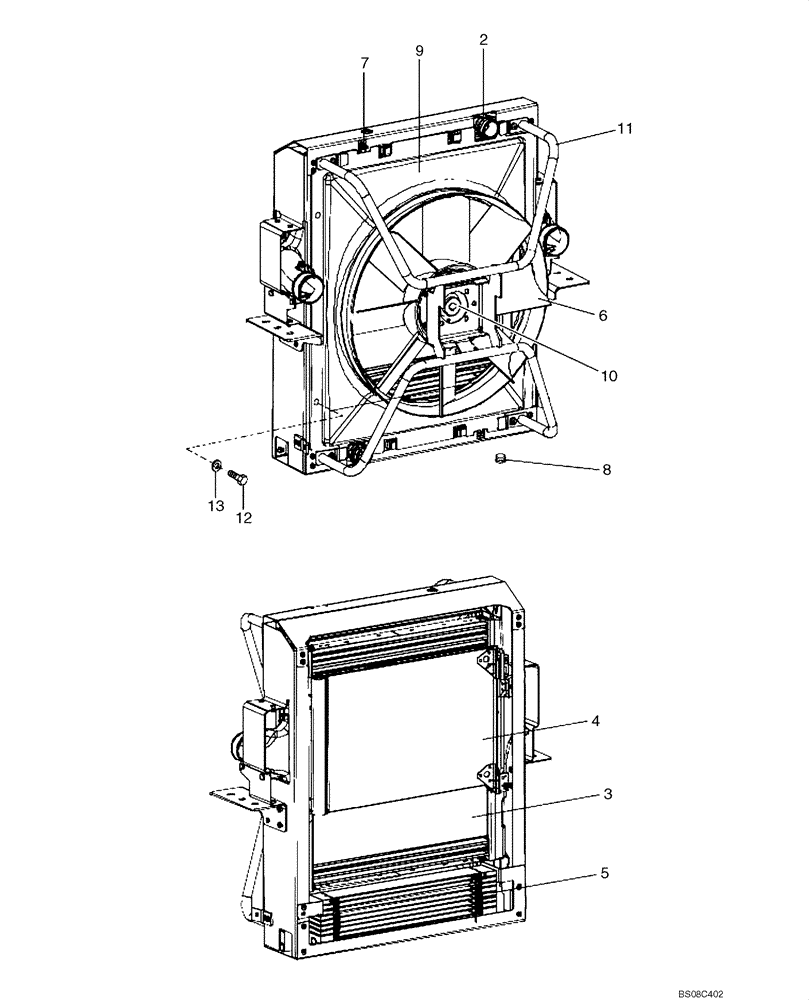

Схема запчастей Case 340B - (04B00000044[001]) - RADIATOR ASSY (P.I.N. HHD0340BN7PG58147 AND AFTER) (89500426229) (01) - ENGINE
3
13
7
12
5
10
11
9
8
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Radiator (89500426229), Start Serial: 458147

1шт.

2

8900133522

RADIATOR

Engine

1шт.

3

8900133523

INTERCOOLER

1шт.

4

8941214450

CONDENSER

Includes Receiver-Dryer

1шт.

5

89500427936

RADIATOR

LOWER

1шт.

6

8900133255

FAN

1шт.

7

8900134870

RETAINER

1шт.

8

8900134871

PLUG

1шт.

9

8900134879

SHROUD

Fan; Replaces 8998340556 Shroud, Fan

1шт.

10

8900133256

SUPPORT

FAN

1шт.

11

8900134893

SUPPORT

FAN MOTOR

1шт.

12

8900121098

BOLT,M8 x 16mm

4шт.

13

8900048181

WASHER

4шт.
