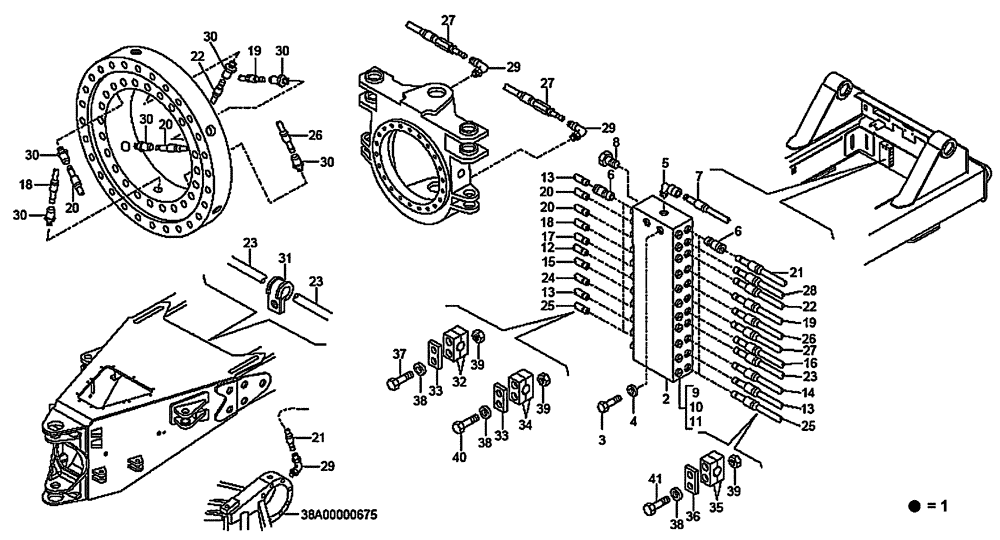

Запчасти Case 340B (94A01000526[001]) - CIRCUIT OF AUTOMATIC GREASING - REAR FRAME (87613508 REV A/B) (19) - OPTIONS

1

89500420444

HYD CONNECTOR

1шт.

2

89500419160

HYD CONNECTOR

1шт.

3

8900033168

BOLT

2шт.

4

8900955275

LOCK WASHER

2шт.

5

8900190690

HYD CONNECTOR

1шт.

6

8900190691

HYDRAULIC VALVE

21шт.

7

89500424523

HOSE ASSY.

HOSE ASSY, Replaces 89500420442 Hose

1шт.

8

8900194277

PLUG

1шт.

9

89500414390

PLUG

7шт.

10

89500414391

PLUG

2шт.

11

89500414392

PLUG

2шт.

12

89500424525

HOSE ASSY.

HOSE ASSY, Replaces 89500420435 Hose Used On Some Models

1шт.

13

89500420433

HOSE

3шт.

14

89500424524

HOSE ASSY.

HOSE ASSY, Replaces 89500420434 Hose

1шт.

15

89500423154

HOSE

1шт.

16

89500424526

HOSE ASSY.

HOSE ASSY, Replaces 89500420436 Hose Used On Some Models

1шт.

17

89500424527

HOSE ASSY.

HOSE ASSY, Replaces 89500420437 Hose Used On Some Models

1шт.

18

89500424529

HOSE ASSY.

HOSE ASSY, Replaces 89500420439 Hose Used On Some Models

1шт.

19

89500424530

HOSE ASSY.

HOSE ASSY, Replaces 89500420440 Hose Used On Some Models

1шт.

20

89500424531

HOSE ASSY.

HOSE ASSY

2шт.

21

89500424528

HOSE ASSY.

HOSE ASSY, Replaces 89500420438 Hose Used On Some Models

1шт.

22

89500422925

HOSE

1шт.

23

89500422922

HOSE,6600.00 mm

1шт.

24

89500422923

HOSE

1шт.

25

89500423155

HOSE

2шт.

26

89500420441

HOSE

Replaces 89500422926 Hose

1шт.

27

89500422927

HOSE

1шт.

28

89500422924

HOSE

1шт.

29

8900190693

HYD CONNECTOR

3шт.

30

8998197808

HYD CONNECTOR

6шт.

31

8900033482

COLLAR

1шт.

32

8900107959

COLLAR

2шт.

33

89500407426

PLATE

2шт.

34

8900194914

CLAMP BRACKET

2шт.

35

8900108880

CLAMP

2шт.

36

89500407423

PLATE

1шт.

37

8900101632

BOLT

2шт.

38

8900955275

LOCK WASHER

6шт.

39

8900108842

NUT

6шт.

40

8900020291

BOLT,M6 x 65mm

2шт.

41

8900008390

BOLT,M6 x 45mm

2шт.
