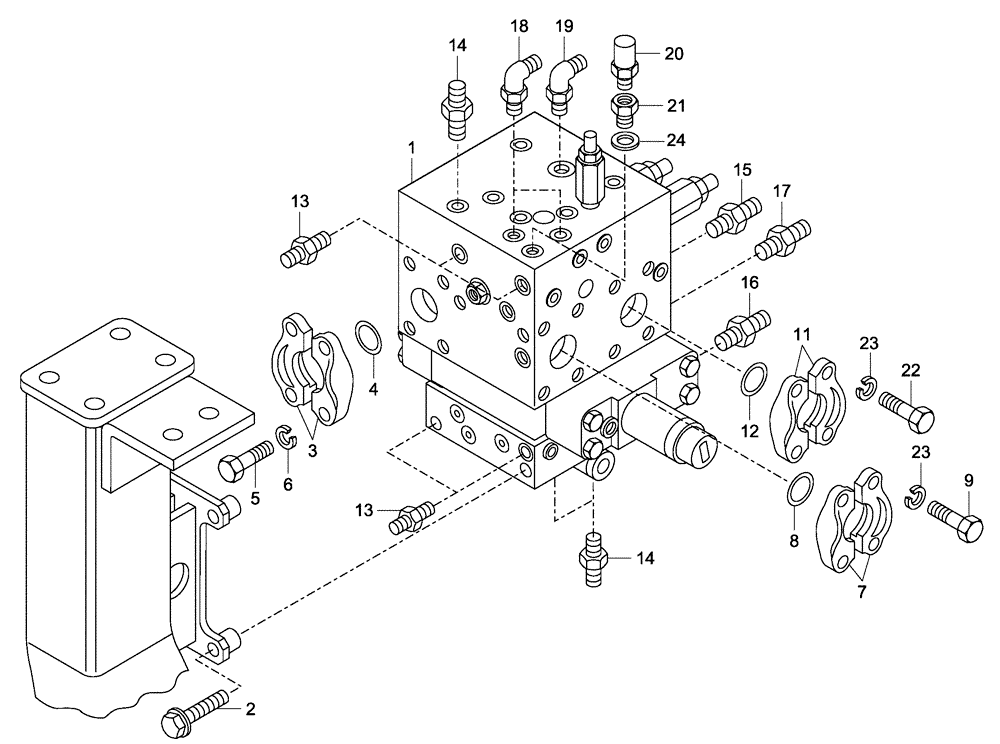

Запчасти Case 340B (72A00030721[001]) - DISTRIBUTOR, DUMP HYDRAULICS (87603053) (19) - OPTIONS

1

89500411534

DISTRIBUTOR

1шт.

See Figure(s) 72H00000002

1шт.

2

8900127578

BOLT

4шт.

3

8900191135

FLANGE

2шт.

4

8900125073

SEALING RING

SEALRING

1шт.

5

8916710435

BOLT

M12 x 30; Replaces 8916710434 Screw Used On Some Models

4шт.

6

8900115529

LOCK WASHER

12

4шт.

7

8900191133

FLANGE

2шт.

8

8917289480

O-RING

SEALRING

1шт.

9

8900125707

BOLT,M10 x 30mm

M10 x 30

4шт.

11

8900191136

FLANGE

2шт.

12

8917289180

O-RING

1шт.

13

89500407467

CONNECTION

4шт.

14

89500408181

CONNECTION

3шт.

15

89500410773

HYD CONNECTOR

1шт.

16

89500403720

CONNECTION

1шт.

17

89500407730

CONNECTION

1шт.

18

89500406102

CONNECTION

2шт.

19

89500406103

CONNECTION

1шт.

20

8900183360

SWIVEL CONNECTION

1шт.

21

89500429587

ADAPTER

Replaces 89500408959 Adapter; Used On Some Models

1шт.

22

8916627634

BOLT

M10 x 30

4шт.

23

8900001049

LOCK WASHER

8шт.

24

89500413896

SEALING WASHER

1шт.
