(67A00002137[001]) - ELECTRIC HOOD SWITCH AND MOUNTING (P.I.N. HHD0340BN7PG58147 AND AFTER) (84242995)

Запчасти Case 340B (67A00002137[001]) - ELECTRIC HOOD SWITCH AND MOUNTING (P.I.N. HHD0340BN7PG58147 AND AFTER) (84242995) (13) - Electrical System / Decals

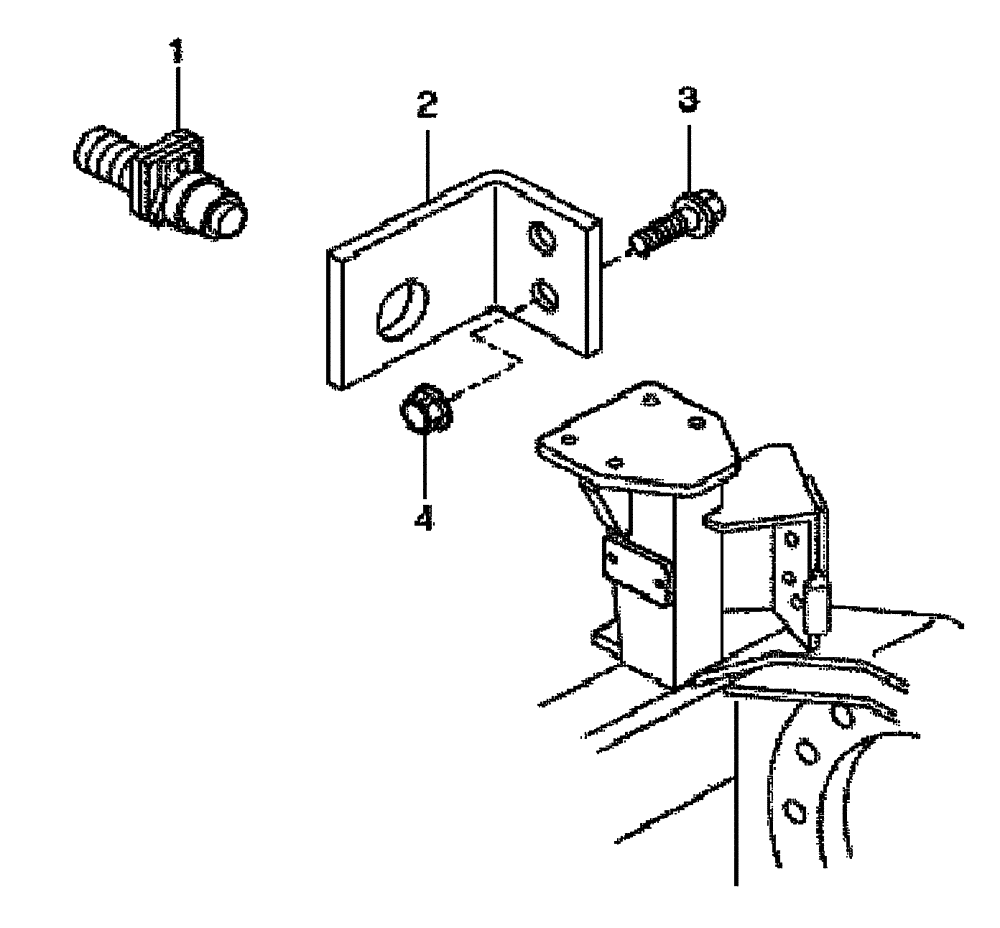

Схема запчастей Case 340B - (67A00002137[001]) - ELECTRIC HOOD SWITCH AND MOUNTING (P.I.N. HHD0340BN7PG58147 AND AFTER) (84242995) (13) - Electrical System / Decals
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Electric Hood Switch and Mounting - Optional (84242995)

1шт.

1

8900115156

BUTTON

1шт.

2

89500430453

BRACKET

1шт.

3

8900115555

BOLT,M8 x 30mm

2шт.

4

8900115122

NUT

2шт.

5

89500437912

ELECTRIC CABLE

(Not Shown)

1шт.

Выбрано товаров: 6
