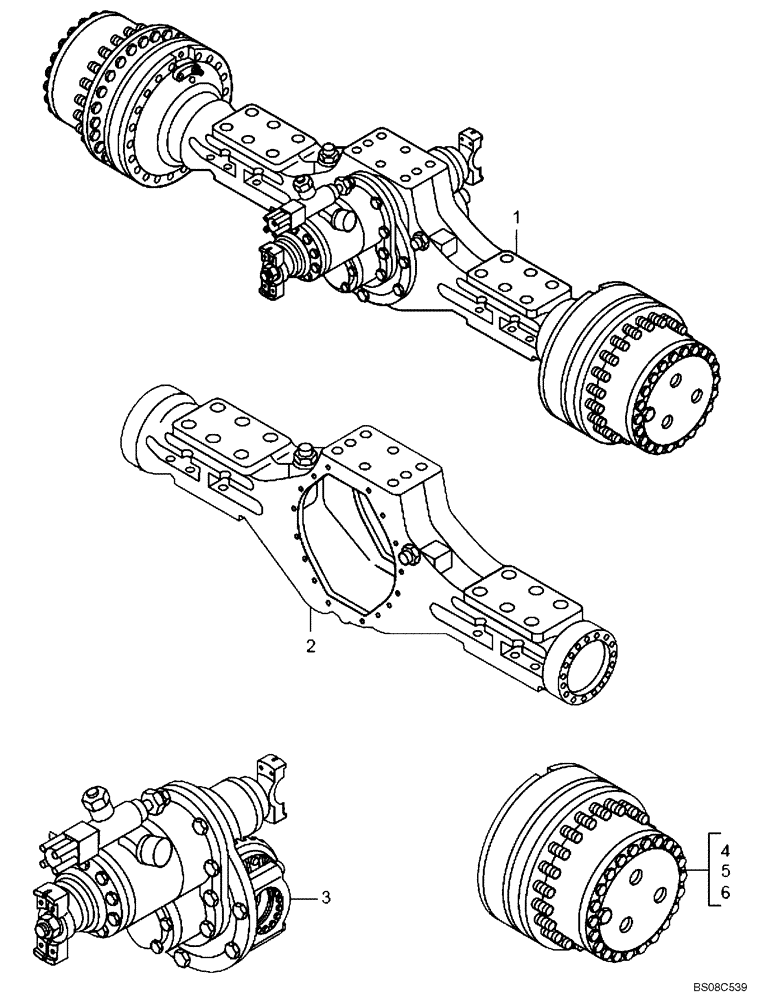

Запчасти Case 340B (32A00010057[001]) - SECTION INDEX, INTERMEDIATE AXLE (89500423517) (11) - AXLES/WHEELS

1

89500423517

DRIVE AXLE

ASSY; Include(s) 2 - 6 See Figures Listed Below For Assembly Breakdown

1шт.

2

REF

INSTRUCTION

Axle Housing, Intermediate (87757844) See Figure 32A00010649

1шт.

3

REF

INSTRUCTION

Differential Assembly, Intermediate (8900133682) See Figure 32A00000650

1шт.

4

REF

INSTRUCTION

Differential Carrier Limited Slip, Intermediate (87454878) See Figure 32A00000651

2шт.

5

REF

INSTRUCTION

Wheel Reduction Gear, Intermediate (87758159) See Figure 32A00010652

2шт.

6

REF

INSTRUCTION

Wheel Hub Wet Brake Parts, Intermediate (87758247) See Figure 32A00010653

2шт.
