(30A00010059[001]) - SECTION INDEX, FRONT WHEEL HUB (89500423516) - AFTER JAN 2008

Запчасти Case 340B (30A00010059[001]) - SECTION INDEX, FRONT WHEEL HUB (89500423516) - AFTER JAN 2008 (11) - AXLES/WHEELS

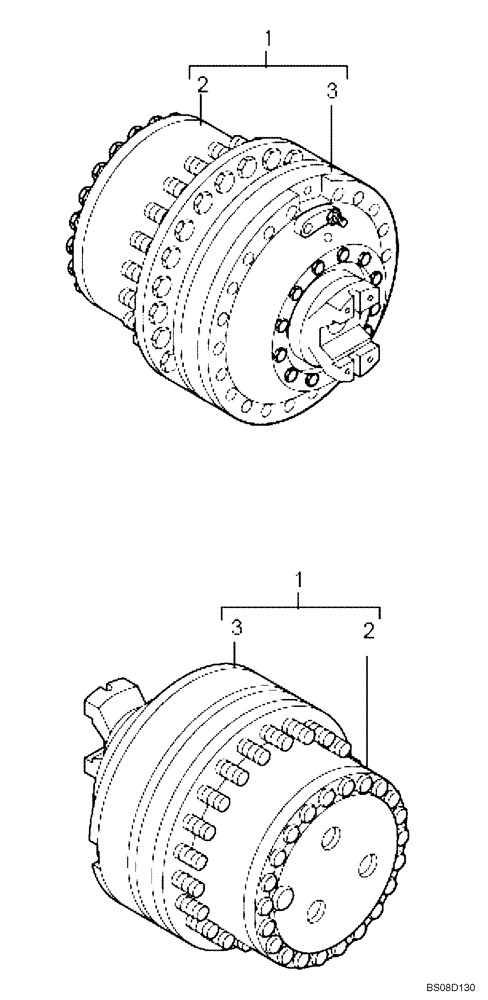

Схема запчастей Case 340B - (30A00010059[001]) - SECTION INDEX, FRONT WHEEL HUB (89500423516) - AFTER JAN 2008 (11) - AXLES/WHEELS
1
2
3
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500423516

HUB

ASSY; Includes 2, 3 - See Figure(s) Listed Below For Service Breakdown, Start Year: 01-JAN-08

1шт.

2

REF

INSTRUCTION

Reduction Gear, Front Wheel Hub (87755390) See Figure 30A00010658

1шт.

3

REF

INSTRUCTION

Brake Mounting, Front Wheel Hub (87755434) See Figure 30A00010659

1шт.

Выбрано товаров: 3
