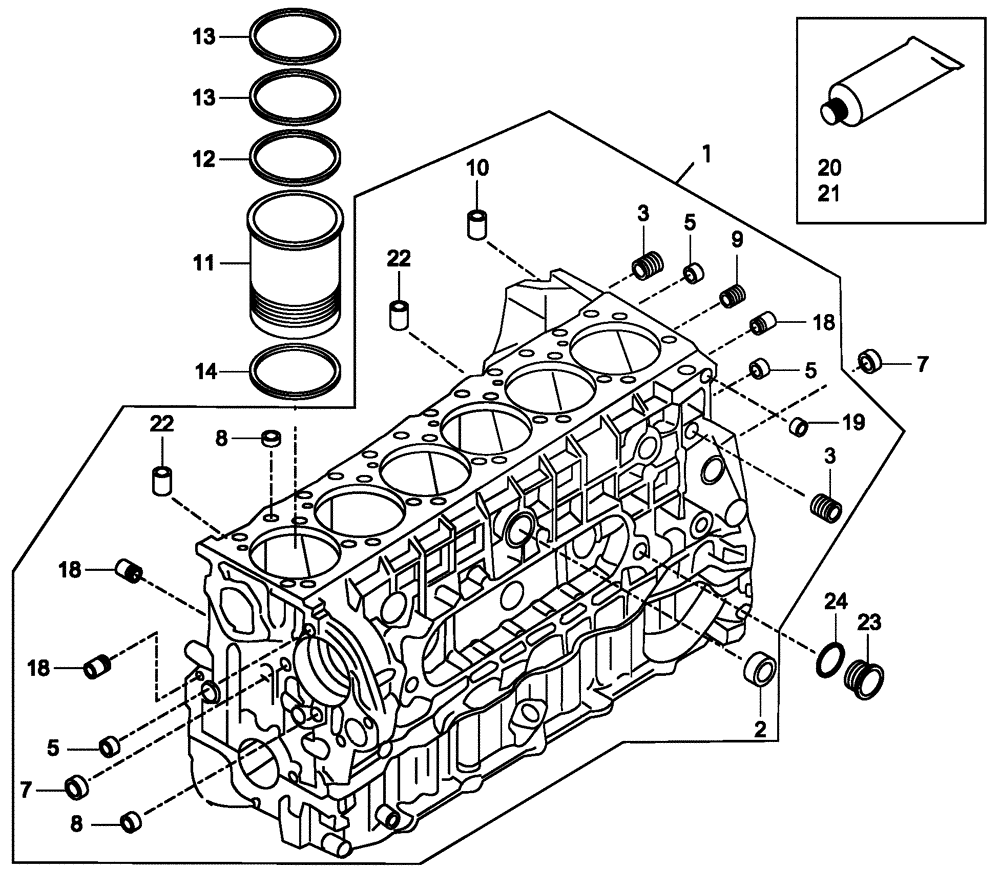

Запчасти Case 340B (01A00020252[001]) - CYLINDER BLOCK (87584839) (01) - ENGINE

1

504171670

ENGINE

ASSY

1шт.

2

16991370

PLUG

2шт.

Include(s) 2, 3, 5, 7, 8, 9, 10, 18, 19, 22

1шт.

3

98472271

PLUG

1шт.

5

16990870

PLUG

3шт.

7

16990670

PLUG,Lock, 22mm Dia

6шт.

8

504120669

PLUG

2шт.

9

99433597

SCREW

3шт.

10

500368916

DOWEL

1шт.

11

500337911

LINER, ENGINE CYLIND

6шт.

12

99455400

SEALING RING

SEALRING

6шт.

13

99455401

SEALING RING

SEALRING

12шт.

14

99448193

SHIM,0.08mm Thk

6шт.

14

99448192

SHIM,0.10mm Thk

6шт.

14

99448190

SHIM,0.12mm Thk

6шт.

14

500378983

SHIM,0.14mm Thk

6шт.

18

98471181

PLUG

PLUG

3шт.

19

504138062

PLUG

2шт.

20

BER1905682

MAT

SEALER

1шт.

21

1903673

SEALANT

1шт.

22

99467554

DOWEL

4шт.

23

10300714

PLUG,M16 x 1.5 x 14

1шт.

24

99489019

SEALING WASHER

1шт.
