Запчасти Case 340B (01A00000292[001]) - ENGINE SENSORS AND SENDER UNITS (87522847) (01) - ENGINE

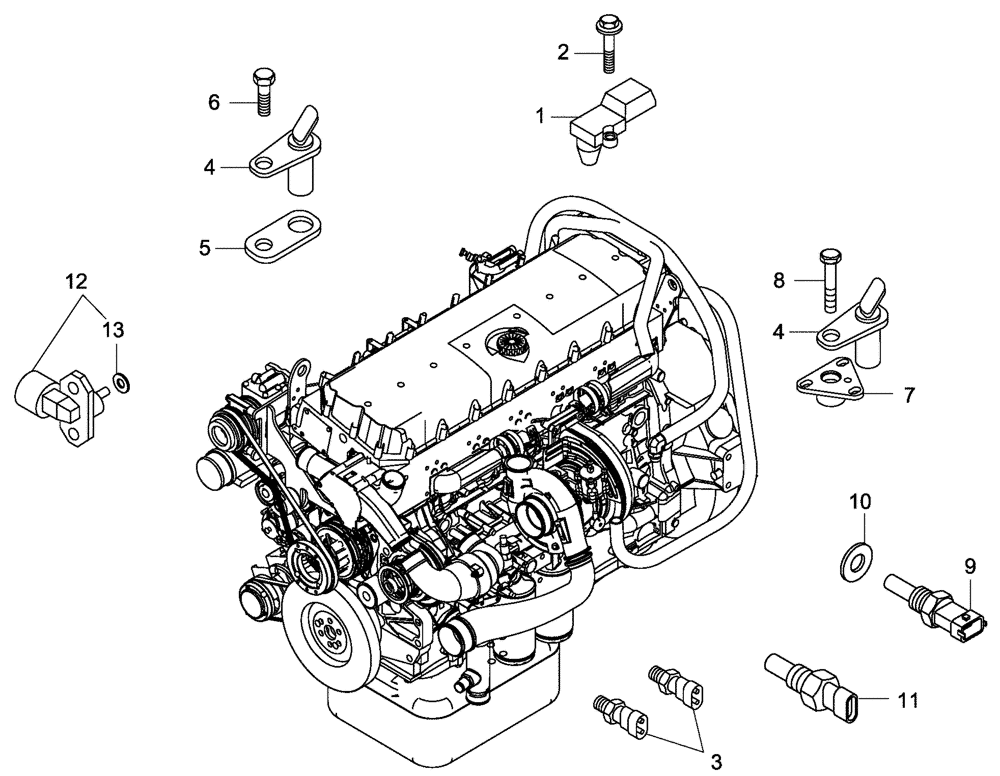

Схема запчастей Case 340B - (01A00000292[001]) - ENGINE SENSORS AND SENDER UNITS (87522847) (01) - ENGINE
10
1
3
2
9
6
12
13
11
4
7
8
5
4

Артикул

Название

Примечание

Количество

1

504073323

SENSOR

Temperature and Pressure, 4 wire

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.

3

89500382599

SENSOR

Coolant Temperature

2шт.

4

504096645

TRANSMITTER

Crankshaft & Camshaft Speed Sensor, 2 wire

2шт.

5

504163664

SPACER

1шт.

6

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

1шт.

7

504113483

MOUNTING PLATE

1шт.

8

16689134

SCREW

M6 X 16

1шт.

9

500377533

SENDER UNIT

Turbocharger Pressure Sensor; Located On The Opposite Side Of The Engine From Where The Turbocharger Is Mounted - Located At The Point Where The Intercooler Hose Goes Into The Intake Manifold.

1шт.

10

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

11

89500382599

SENSOR

1шт.

12

4890193

SENSOR

ASSY_PRS; Temperature

1шт.

13

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

Выбрано товаров: 13
