/ / / / / / / / (49A00001027[001]) - PNEUMATICS, FRONT FRAME (87612816)

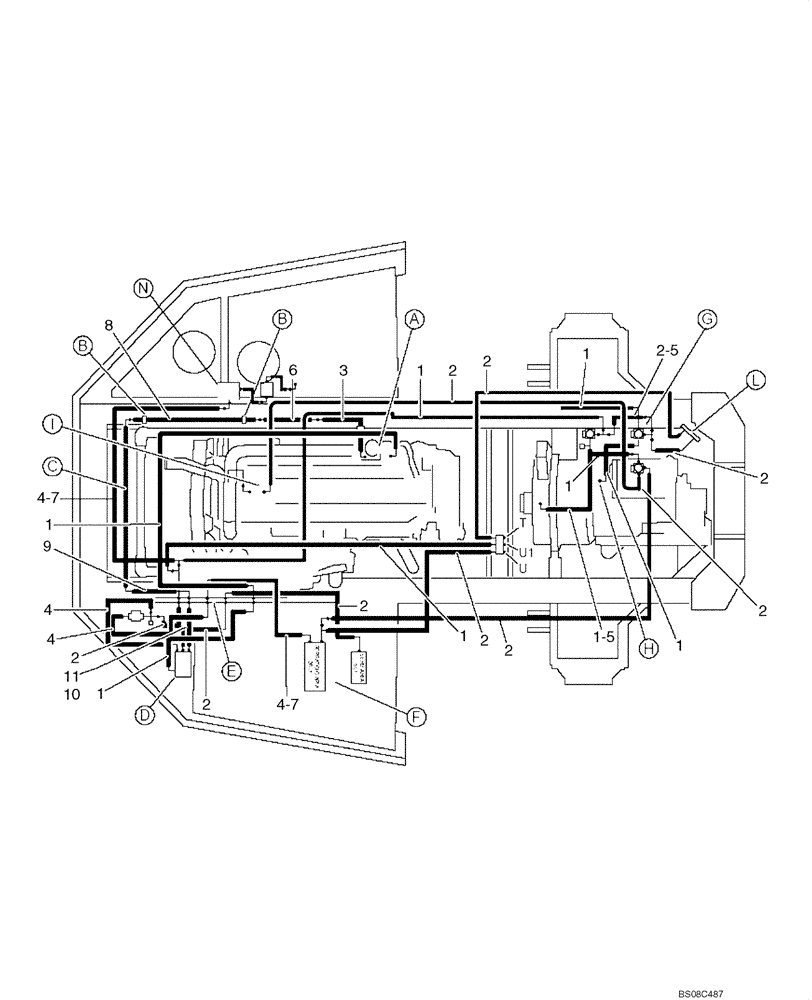

Запчасти Case 340B (49A00001027[001]) - PNEUMATICS, FRONT FRAME (87612816) (09) - Implement / Hydraulics / Frame / Brakes
![Схема запчастей Case 340B - (49A00001027[001]) - PNEUMATICS, FRONT FRAME (87612816) (09) - Implement / Hydraulics / Frame / Brakes](https://partsell.ru/storage/images/casece/1060417.png)
2
1
2
6
2
a
8
2
2-5
1-5
4
b
1
9
2
1
u
2
n
f
c
b
1
10
2
t
d
h
1
i
1
4-7
l
4-7
2
1
3
e
4
2
u1
g
11
1
8900095210
PLASTIC-RUBBER TUBE
D.4 x 6
1шт.
Use As Required
1шт.
2
8900095211
HOSE
D.6 x 8
1шт.
Use As Required
1шт.
3
89500407804
PIPE
1шт.
4
8900095213
PLASTIC-RUBBER TUBE
D.9 x 12
1шт.
Use As Required
1шт.
5
8900095153
FLEXIBLE SHEATH
D.8.4 x 11.7
1шт.
Use As Required
1шт.
6
8900110455
HOSE
1шт.
7
8900095201
TUBE
D.12.7X15.8
1шт.
Use As Required
1шт.
8
89500407807
PIPE
1шт.
9
89500407806
PIPE
1шт.
10
89500422950
TUBE
1шт.
11
89500413887
HOSE ASSY.
If Used
1шт.
