(43N00000002[001]) - VALVE ASSEMBLY, STEERING (8900134883)

Запчасти Case 340B (43N00000002[001]) - VALVE ASSEMBLY, STEERING (8900134883) (09) - Implement / Hydraulics / Frame / Brakes

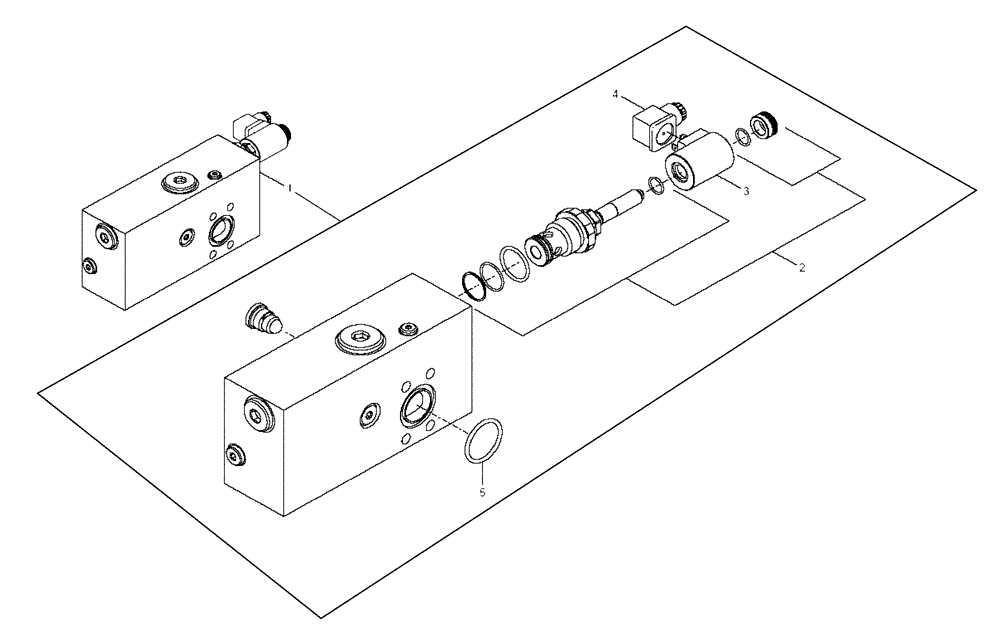

Схема запчастей Case 340B - (43N00000002[001]) - VALVE ASSEMBLY, STEERING (8900134883) (09) - Implement / Hydraulics / Frame / Brakes
4
5
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Assy 8900134833 Not Serviced Separately; Order Individual Components From Breakdown Kisted

1шт.

2

8998340314

VALVE

Replaces 8998340020 Valve

1шт.

3

8998340315

COIL

Replaces 8900133173 Coil

1шт.

4

8998340021

ELEC CONNECTOR

1шт.

5

8998340316

O-RING

Replaces 8998340167 Seal Ring

1шт.
