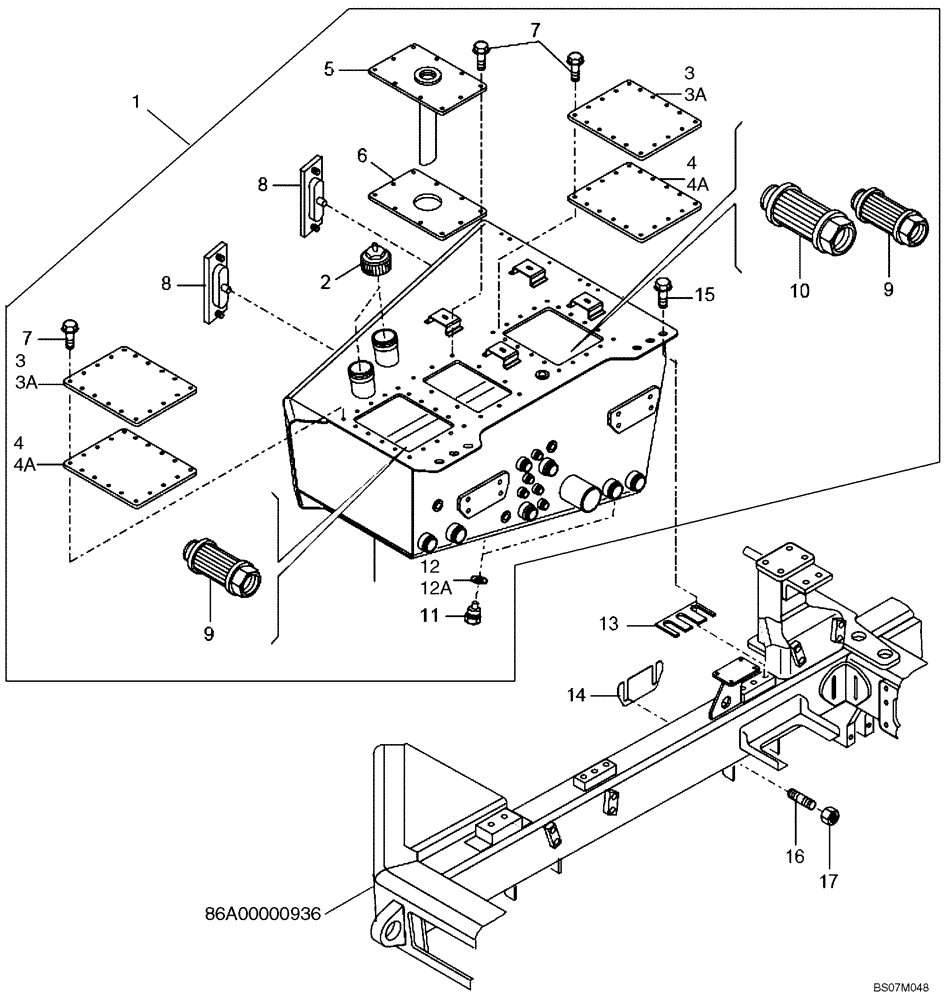

Запчасти Case 340B (43A00030802[001]) - FILTERS, HYDRAULIC TANK (87585906) (09) - Implement / Hydraulics / Frame / Brakes

1

89500420561

TANK, HYDRAULIC OIL

Include(s) 2 - 12

1шт.

2

89500424556

CAP

CAP, Replaces 89500420550 Cap

2шт.

3

89500420579

COVER

If Used; 10 Mounting Holes

2шт.

3a

89500424406

COVER

COVER, If Used; 18 Mounting Holes

2шт.

4

89500420578

GASKET

If Used; 10 Mounting Holes

2шт.

4a

89500424407

GASKET

GASKET, If Used; 18 Mounting Holes

2шт.

5

89500420556

COVER

1шт.

6

89500424409

GASKET

GASKET, Replaces 89500418937 Gasket

1шт.

7

8900116549

BOLT

Qty Was 30

30-46шт.

8

89500419517

INDICATOR

2шт.

9

89500420587

HYDRAULIC OIL FILTER

2шт.

10

89500415517

HYDRAULIC OIL FILTER

1шт.

11

8900008638

MAGNETIC PLUG

2шт.

12

8900005327

COPPER SEAL

If Used

2шт.

12a

89500402288

GASKET

If Used

2шт.

13

89500420581

SHIM

6шт.

14

89500420582

SHIM

6шт.

15

8900124156

BOLT

M14 x 50

6шт.

16

89500423416

STUD

M16 x 1.5 x 35; Replaces 8900055764 Stud M16 x 1.5 x 30

8шт.

17

8941021376

NUT

8шт.
