(43A00020872[001]) - MOUNTING, HOSE / HYDRAULIC STEERING FILTER (SIMPLE MUX P.I.N. HHD0340BN7PG58072 AND AFTER) (87756279)

Запчасти Case 340B (43A00020872[001]) - MOUNTING, HOSE / HYDRAULIC STEERING FILTER (SIMPLE MUX P.I.N. HHD0340BN7PG58072 AND AFTER) (87756279) (09) - Implement / Hydraulics / Frame / Brakes

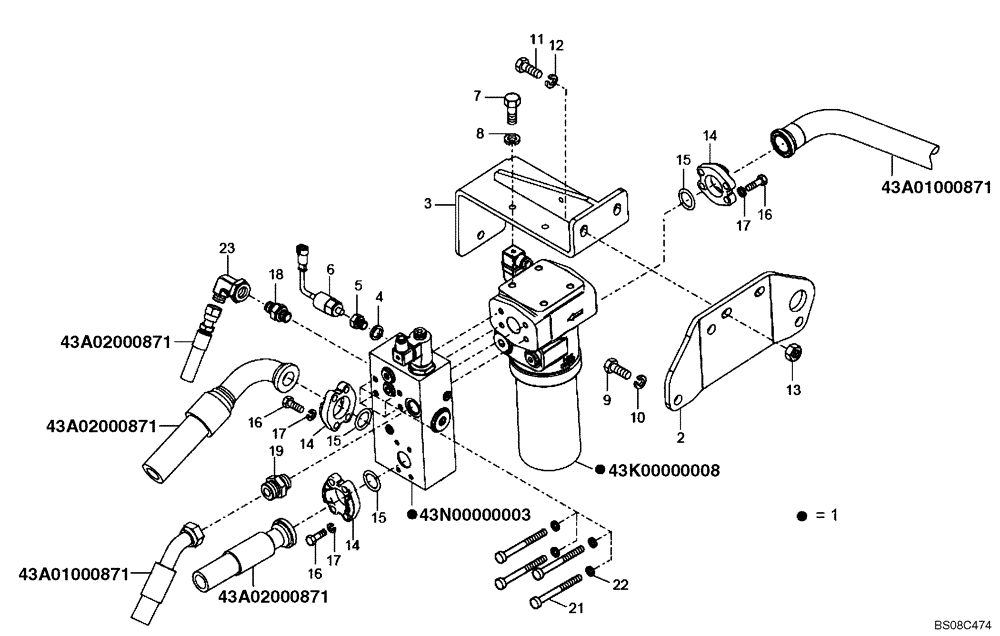

Схема запчастей Case 340B - (43A00020872[001]) - MOUNTING, HOSE / HYDRAULIC STEERING FILTER (SIMPLE MUX P.I.N. HHD0340BN7PG58072 AND AFTER) (87756279) (09) - Implement / Hydraulics / Frame / Brakes
23
11
3
14
15
16
43a02000871
6
9
12
17
43a01000871
17
16
10
16
1
13
16
15
15
43n00000003
14
19
4
43k00000008
2
14
21
5
43a01000871
18
17
7
22
43a02000871
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8998341351

FILTER ASSY

Incl Valve Block Assy - Replaces 8998340166 NSS Filter Assembly

1шт.

2

89500417389

PLATE

1шт.

3

89500417390

SUPPORT

1шт.

4

89500413896

SEALING WASHER

1шт.

5

89500408623

ADAPTER

1шт.

6

89500409101

SWITCH

1шт.

7

8916629734

BOLT,M12 x 25mm

M12 x 25

4шт.

8

8900140473

WASHER

4шт.

9

8900116825

BOLT

M16 x 40

2шт.

10

8900110597

WASHER

BEVEL

2шт.

11

8900102200

BOLT,M14 x 40mm

M14 x 40

2шт.

12

8900141457

COLLAR

2шт.

13

8900124155

NUT

2шт.

14

8900191133

FLANGE

SPLIT

6шт.

15

8917289480

O-RING

SEALRING

3шт.

16

8900125707

BOLT,M10 x 30mm

M10 X 30

12шт.

17

8900001049

LOCK WASHER

12шт.

18

89500408432

HYD CONNECTOR

1шт.

19

89500406117

HYD CONNECTOR

1шт.

20

NSS

NOT SOLD SEPARAT

VALVE BLOCK ASSY; PN 8998340959 If Used - Not Illustrated - Ref Figure 43N00000003 for Service Breakdown

1шт.

21

8900134882

SCREW,M10 x 90mm

M10 x 90

4шт.

22

8900134881

COLLAR

4шт.

23

89500406108

CONNECTION

ELBOW

1шт.
