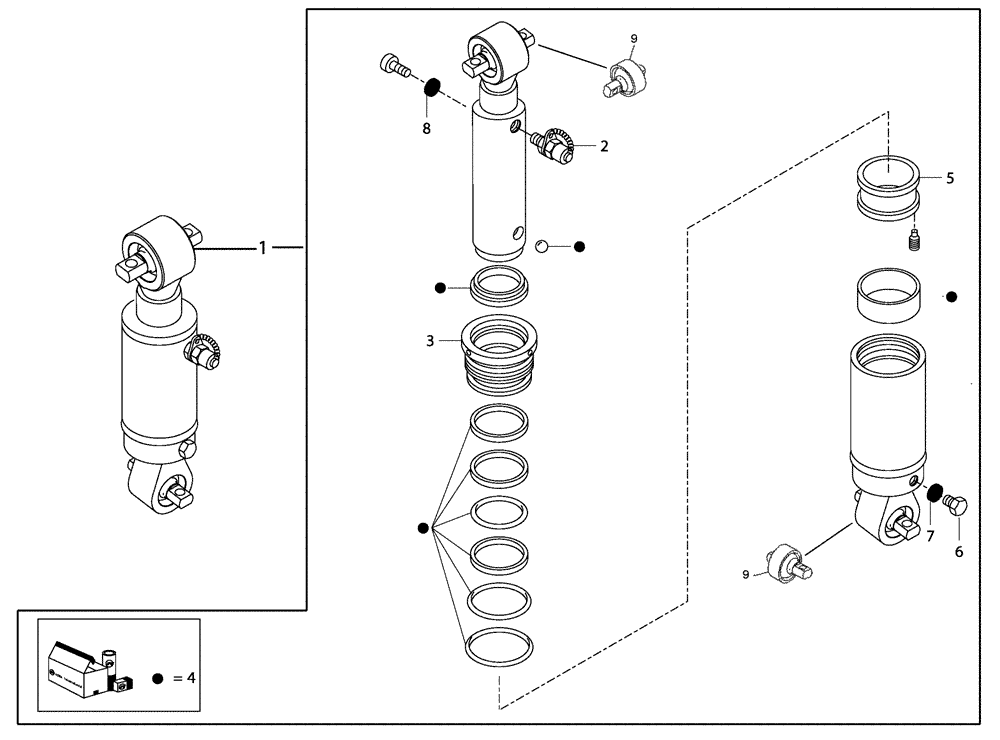

Запчасти Case 340B (38D00000017[001]) - CYLINDER ASSY, FRONT SUSPENSION (89500415397) (09) - Implement / Hydraulics / Frame / Brakes

1

89500415397

CYLINDER ASSY.,Double Acting, 100mm Rod, 120mm Stroke

1шт.

Include(s) 2 - 9

1шт.

2

8900132337

VALVE

1шт.

3

8998340057

RING

1шт.

4

8998340058

SEAL KIT

1шт.

5

8998340059

PISTON

2шт.

6

8998340060

PLUG

1шт.

7

8998340061

SEALING WASHER

1шт.

8

8998340062

SEALING WASHER

1шт.

9

8998340197

RUBBER JOINT

If Used

1шт.
