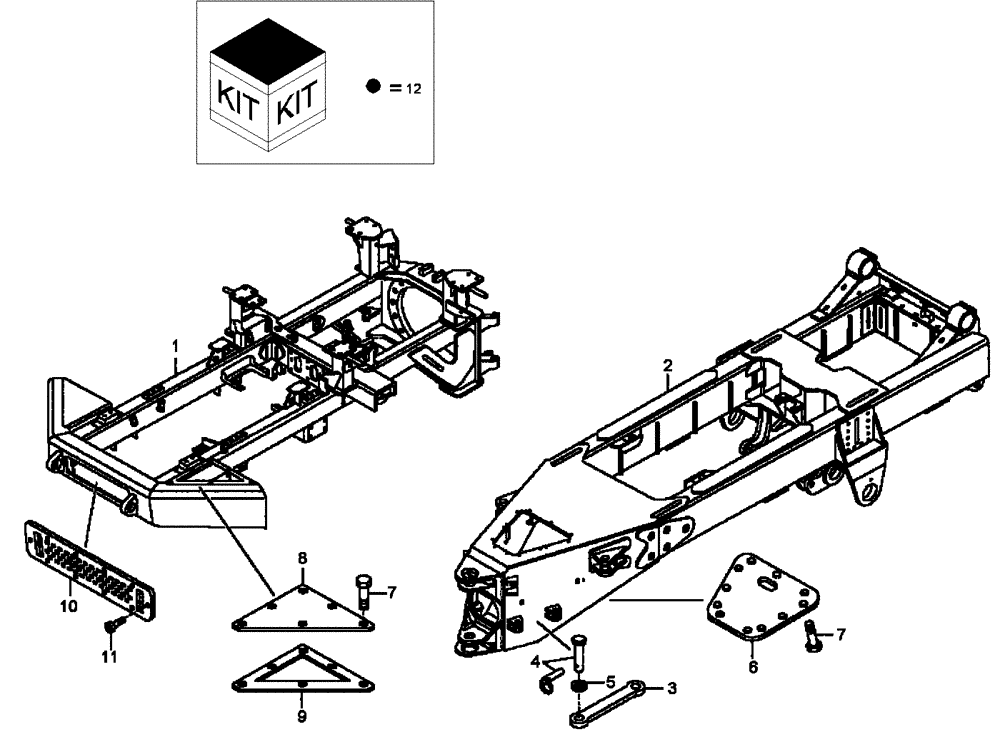

Запчасти Case 340B (36A00000936[001]) - FRAME PARTS (87585236) (09) - Implement / Hydraulics / Frame / Brakes

1

8900136207

FRAME

FRONT

1шт.

2

8900136209

FRAME

REAR; Until HHD0340BN6PG58071

1шт.

2-1

8900136529

FRAME

FRAME, REAR; P.I.N.HHD0340BN6PG58072 And After Not Illustrated

1шт.

3

89500404848

CONNECTING ROD

1шт.

4

89500407889

PIN

2шт.

5

8900100333

WASHER

2шт.

6

89500407764

COVER

1шт.

7

8900001048

BOLT

M10 x 1.5 x 30

11шт.

8

89500420705

COVER

1шт.

9

89500420694

GASKET

1шт.

10

89500418528

GRILLE

1шт.

11

8917032877

SCREW,M6 x 25mm

M6 x 25

10шт.

12

8998343188

KIT

Rear Frame Reinforcement , From Serial Number 58001 Thru 58141

1шт.
