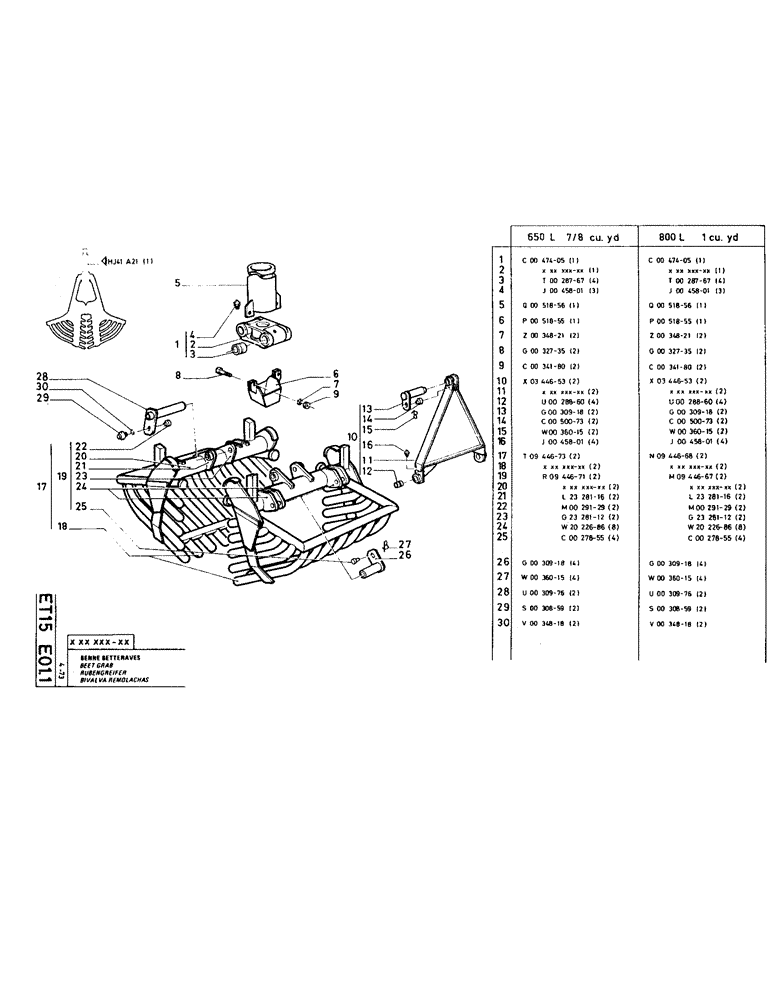

Запчасти Case TC45 (145) - BEET GRAB, 650L, - 7/8 CU. YD., 800L, - 1 CU. YD.

1

P47405

LINKAGE YOKE

1шт.

3

P28767

BUSHING

40 x 55 x 45

4шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

3шт.

5

P51856

PROTECTOR

1шт.

6

P51855

PROTECTOR

1шт.

7

P34821

WASHER

2шт.

8

P32735

SCREW

2шт.

9

825-1418

NUT,M18, Cl 8

2шт.

10

P344653

ARM

2шт.

12

P28860

BUSHING

4шт.

13

P30918

HEADED PIN

PIN, HEADED

2шт.

14

P50073

SHAFT LOCK

2шт.

15

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

16

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

17

P944373

2шт.

19

P944671

2шт.

21

P2328116

WELDABLE LUG

2шт.

22

P29129

SHAFT LOCK

2шт.

23

P2328112

WELDABLE LUG

2шт.

24

P2022686

WELDABLE LUG

8шт.

25

P27855

SHAFT LOCK

4шт.

26

P30918

HEADED PIN

PIN, HEADED

4шт.

27

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

4шт.

28

P30976

HEADED PIN

PIN, HEADED

2шт.

29

P30859

BOLT

SCREW/BOLT

2шт.

30

P34818

WASHER

2шт.

1

P47405

LINKAGE YOKE

1шт.

3

P28767

BUSHING

40 x 55 x 45

4шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

3шт.

5

P51856

PROTECTOR

1шт.

6

P51855

PROTECTOR

1шт.

7

P34821

WASHER

2шт.

8

P32735

SCREW

2шт.

9

825-1418

NUT,M18, Cl 8

2шт.

10

P344653

ARM

2шт.

12

P28860

BUSHING

4шт.

13

P30918

HEADED PIN

PIN, HEADED

2шт.

14

P50073

SHAFT LOCK

2шт.

15

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

16

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

17

P944668

2шт.

19

P944667

BEAM

2шт.

21

P2328116

WELDABLE LUG

2шт.

22

P29129

SHAFT LOCK

2шт.

23

P2328112

WELDABLE LUG

2шт.

24

P2022686

WELDABLE LUG

8шт.

25

P27855

SHAFT LOCK

4шт.

26

P30918

HEADED PIN

PIN, HEADED

4шт.

27

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

4шт.

28

P30976

HEADED PIN

PIN, HEADED

2шт.

29

P30859

BOLT

SCREW/BOLT

2шт.

30

P34818

WASHER

2шт.
