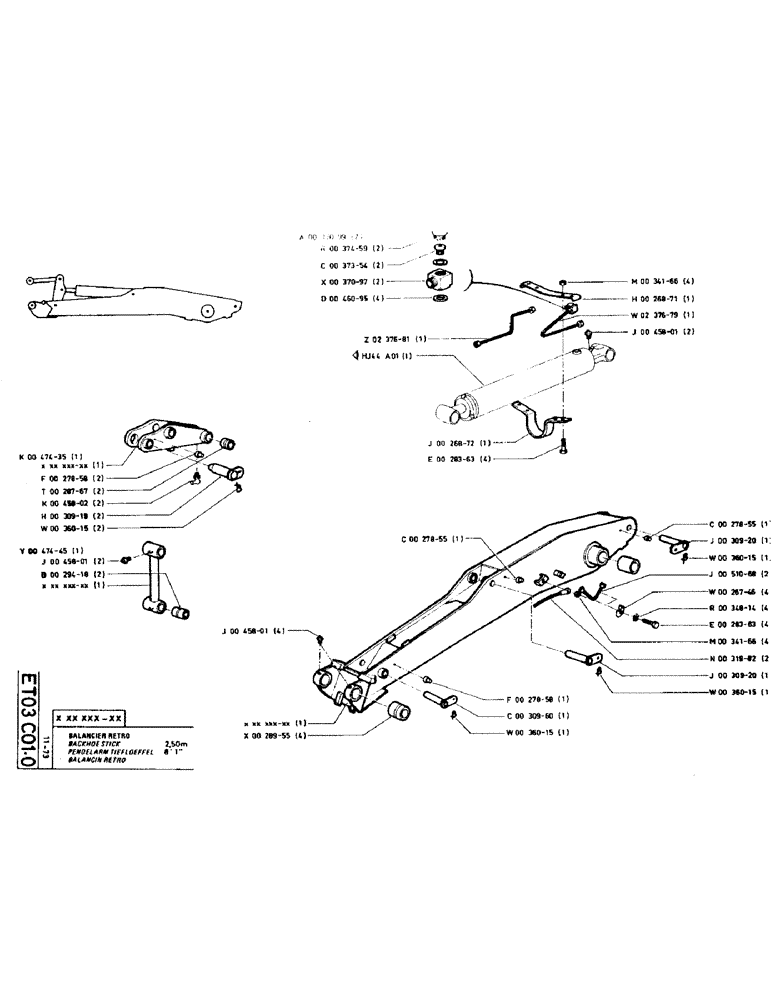

Запчасти Case TC45 (101) - BACKHOE STICK

P47435

LINKAGE YOKE

1шт.

P27858

SHAFT LOCK

2шт.

P28767

BUSHING

40 x 55 x 45

2шт.

K45802

LUBE NIPPLE

2шт.

P30919

HEADED PIN

PIN, HEADED

2шт.

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

P47445

ROD, CONNECTING

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P29418

BUSHING

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

P28955

BUSHING, 55 x 75 x 65

4шт.

P37099

ANGLE

2шт.

P37459

PLUG

D27 x 1.5

2шт.

P37354

END FITTING

2шт.

P37097

FITTING

CONNECTION

2шт.

P46095

BUSHING

4шт.

P237681

1шт.

PJ44A01

1шт.

P26872

1шт.

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

P27855

SHAFT LOCK

1шт.

P27858

SHAFT LOCK

1шт.

P30960

1шт.

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

1шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P26871

1шт.

P237679

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P27855

SHAFT LOCK

1шт.

P30920

HEADED PIN

PIN, HEADED

1шт.

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

1шт.

P51068

2шт.

P26746

PIPE CLAMP

4шт.

P34814

WASHER

4шт.

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P31982

HOSE

2шт.

P30920

HEADED PIN

PIN, HEADED

1шт.

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

1шт.
