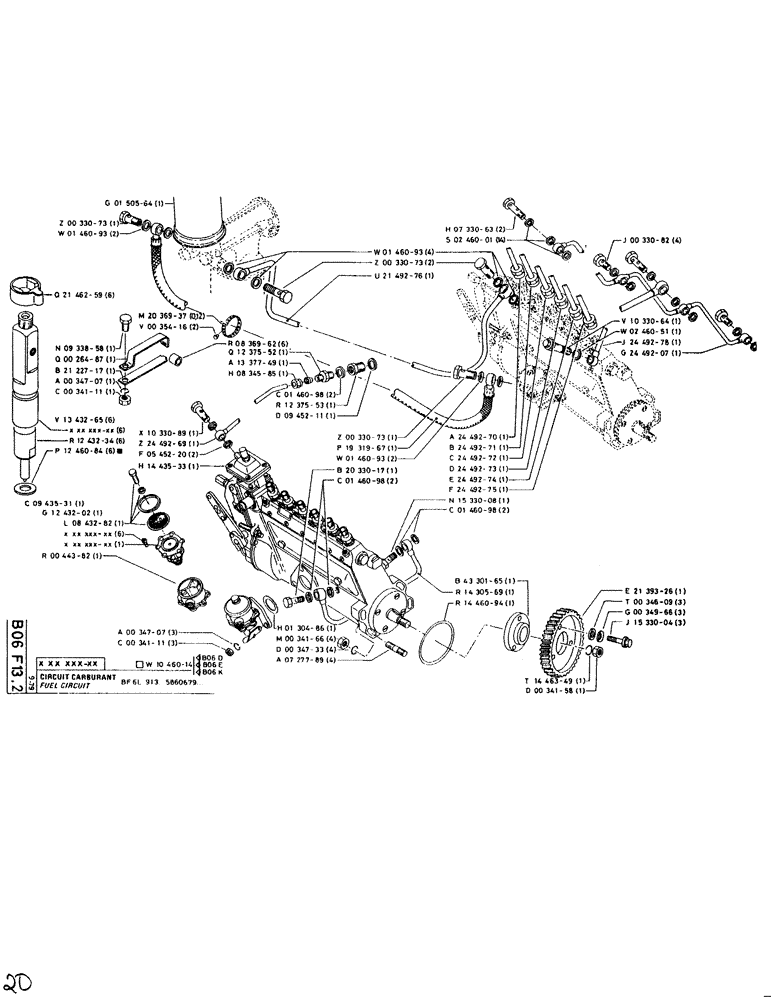

Запчасти Case SC150L (020) - FUEL CIRCUIT

P150564

CARTRIDGE

1шт.

P33073

BOLT

FEMALE SCREW

1шт.

P146093

WASHER, SEALING

SEAL

2шт.

P2146259

DEUTZ PART

SLEEVE

6шт.

P933858

SCREW

/BOLT, M6 x 12

1шт.

P26487

DEUTZ PART

BRACKET

1шт.

P2122717

DEUTZ PART

PLATE

1шт.

P34707

WASHER

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

P1343265

DEUTZ PART

INJECTOR

6шт.

P1243234

DEUTZ PART

NOZZLE

6шт.

P1246084

GASKET

SEAL

6шт.

P943531

PUMP

1шт.

P1243202

DEUTZ PART

SET

1шт.

P843282

DEUTZ PART

RESTRICTOR

1шт.

P44382

DEUTZ PART

BODY

1шт.

P2036937

DEUTZ PART

COLLAR

1шт.

P35416

DEUTZ PART

RIVET

2шт.

P1033089

BOLT

FEMALE SCREW

1шт.

P2449269

DEUTZ PART

PIPELINE

1шт.

P545220

DEUTZ PART

COPPER SEAL

2шт.

P1443533

PUMP

1шт.

P34707

WASHER

3шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

P1046014

DEUTZ PART

SET OF SEALS

1шт.

P836962

DEUTZ PART

CONNECTING STRI

6шт.

P1237552

DEUTZ PART

CONNECTION

1шт.

P1337749

DEUTZ PART

SEAL RING

1шт.

P834585

DEUTZ PART

NUT

1шт.

P146098

WASHER, SEALING

SEAL WASHER, 10.3 x 13.4 x 1

2шт.

P1237553

DEUTZ PART

CONNECTION

1шт.

P945211

DEUTZ PART

COPPER SEAL

1шт.

P146093

WASHER, SEALING

SEAL

4шт.

P33073

BOLT

FEMALE SCREW

2шт.

P2149276

DEUTZ PART

PIPELINE

1шт.

P33073

BOLT

FEMALE SCREW

1шт.

P1931967

HOSE

1шт.

P146093

WASHER, SEALING

SEAL

2шт.

P2033017

BOLT

SCREW/BOLT

1шт.

P146098

WASHER, SEALING

SEAL WASHER, 10.3 x 13.4 x 1

2шт.

P130486

O-RING

SEAL, 2.62 x 34.59-80

1шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P34733

DEUTZ PART

WASHER

4шт.

P727789

STUD

4шт.

P733063

BOLT

FEMALE SCREW

2шт.

P246001

COPPER SEAL

8.2 x 11.4

14шт.

P2449270

DEUTZ PART

PIPELINE

1шт.

P2449271

DEUTZ PART

PIPELINE

1шт.

P2449272

DEUTZ PART

PIPELINE

1шт.

P2449273

DEUTZ PART

PIPELINE

1шт.

P2449274

DEUTZ PART

PIPELINE

1шт.

P2449275

DEUTZ PART

PIPELINE

1шт.

P1533008

BOLT

FEMALE SCREW

1шт.

P146098

WASHER, SEALING

SEAL WASHER, 10.3 x 13.4 x 1

2шт.

P4330165

DEUTZ PART

HUB

1шт.

P1430569

DEUTZ PART

PIPE

1шт.

P1446094

SEAL

1шт.

P33082

BOLT

FEMALE SCREW

4шт.

P1033064

DEUTZ PART

VALVE

1шт.

P246051

DEUTZ PART

SEAL

1шт.

P2449278

DEUTZ PART

PIPELINE

1шт.

P2449207

DEUTZ PART

PIPE

1шт.

P2139326

DEUTZ PART

PINION

1шт.

P34609

WASHER

3шт.

P34966

DEUTZ PART

SPRING WASHER

3шт.

P1533004

BOLT

SCREW/BOLT

3шт.

P1446349

DEUTZ PART

WASHER

1шт.

P34158

DEUTZ PART

NUT, M14 x 1.5

1шт.
