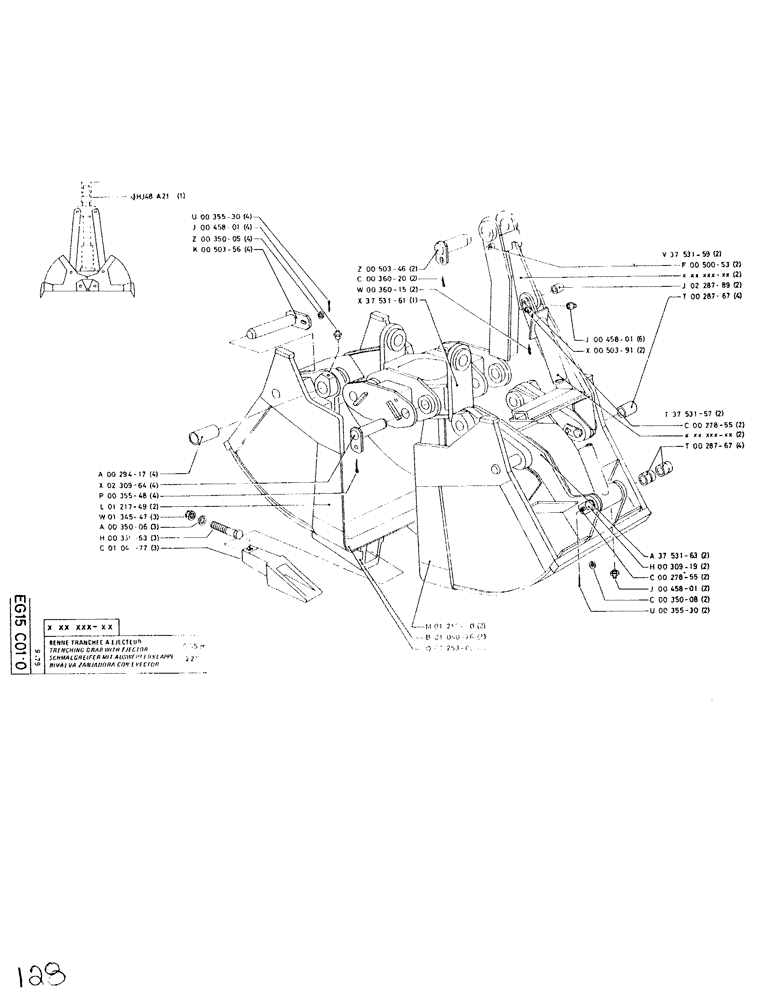

Запчасти Case SC150L (128) - TRENCHING GRAB WITH EJECTOR

PJ48A21

1шт.

P29417

BUSHING

40 x 50 x 70

4шт.

P230964

PIN

4шт.

P35548

SPLIT PIN/SAFETY PIN

SPLIT PIN, 6 x 70

4шт.

P121749

STIFFENER

REINFORCEMENT

2шт.

P134547

SAFETY NUT

3шт.

P35006

WASHER

3шт.

P104077

TOOTH

3шт.

P35530

SPLIT PIN

4 x 35

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

P35005

WASHER

4шт.

P50356

HEADED PIN

PIN

4шт.

P50346

HEADED PIN

PIN

2шт.

P36020

SPLIT PIN/SAFETY PIN

2шт.

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

P3753161

LINKAGE YOKE

YOKE

1шт.

P104076

CASE

BOX

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

6шт.

P50391

PIN

2шт.

P3753159

ARM

2шт.

P50053

SHAFT LOCK

2шт.

P228789

BUSHING, 16 x 25 x 35

2шт.

P28767

BUSHING

40 x 55 x 45

4шт.

P3753157

CONNECTING ROD

2шт.

P27855

SHAFT LOCK

2шт.

P28767

BUSHING

40 x 55 x 45

4шт.

P3753163

KNOCKER

EJECTOR

2шт.

P30919

HEADED PIN

PIN, HEADED

2шт.

P27855

SHAFT LOCK

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P35008

WASHER

2шт.

P35530

SPLIT PIN

4 x 35

2шт.
