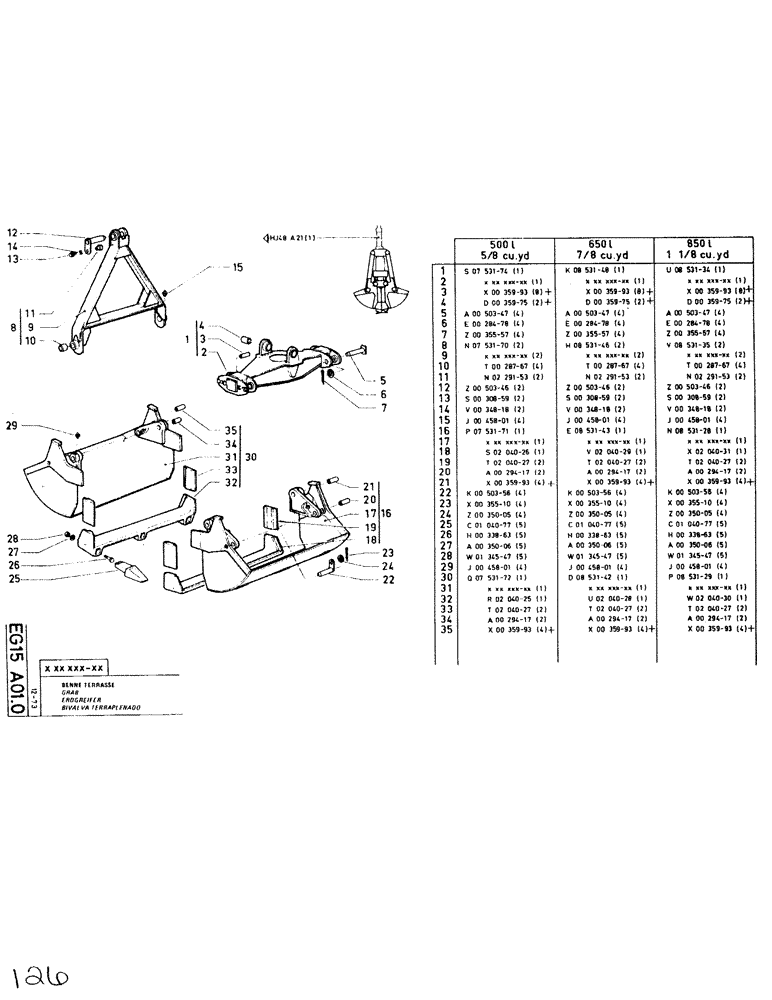

Запчасти Case SC150L (126) - GRAB, 500L, 5/8 CU. YD

1

P753174

LINKAGE YOKE

YOKE

1шт.

3

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

8шт.

4

P35975

BUSHING

55 x 70 x 48

2шт.

5

P50347

HANDLED SHAFT

PIN

4шт.

6

P28478

WASHER

65 x 41 x 4

4шт.

7

P35557

SPLIT PIN

8 x 80

4шт.

8

P753170

ARM

2шт.

10

P28767

BUSHING

40 x 55 x 45

4шт.

11

P229153

2шт.

12

P50346

HEADED PIN

PIN

2шт.

13

P30859

BOLT

SCREW/BOLT

2шт.

14

P34818

WASHER

2шт.

15

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

16

P753171

SHELL

1шт.

18

P204026

BLADE

1шт.

19

P204027

STIFFENER

REINFORCEMENT

2шт.

20

P29417

BUSHING

40 x 50 x 70

2шт.

21

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

4шт.

22

P50356

HEADED PIN

PIN

4шт.

23

P35510

SPLIT PIN

2 x 20

4шт.

24

P35005

WASHER

4шт.

25

P104077

TOOTH

5шт.

26

P33863

SCREW

/BOLT, M16 x 75

5шт.

27

P35006

WASHER

5шт.

28

P134547

SAFETY NUT

5шт.

29

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

30

P753172

SHELL

1шт.

32

P204025

BLADE

1шт.

33

P204027

STIFFENER

REINFORCEMENT

2шт.

34

P29417

BUSHING

40 x 50 x 70

2шт.

35

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

4шт.

1

P853148

LINKAGE YOKE

YOKE

1шт.

3

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

8шт.

4

P35975

BUSHING

55 x 70 x 48

2шт.

5

P50347

HANDLED SHAFT

PIN

4шт.

6

P28478

WASHER

65 x 41 x 4

4шт.

7

P35557

SPLIT PIN

8 x 80

4шт.

8

P853146

ARM

2шт.

10

P28767

BUSHING

40 x 55 x 45

4шт.

11

P229153

2шт.

12

P50346

HEADED PIN

PIN

2шт.

13

P30859

BOLT

SCREW/BOLT

2шт.

14

P34818

WASHER

2шт.

15

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

16

P853143

SHELL

1шт.

18

P204029

BLADE

1шт.

19

P204027

STIFFENER

REINFORCEMENT

2шт.

20

P29417

BUSHING

40 x 50 x 70

2шт.

21

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

4шт.

22

P50356

HEADED PIN

PIN

4шт.

23

P35510

SPLIT PIN

2 x 20

4шт.

24

P35005

WASHER

4шт.

25

P104077

TOOTH

5шт.

26

P33863

SCREW

/BOLT, M16 x 75

5шт.

27

P35006

WASHER

5шт.

28

P134547

SAFETY NUT

5шт.

29

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

30

P853142

SHELL

1шт.

32

P204028

BLADE

1шт.

33

P204027

STIFFENER

REINFORCEMENT

2шт.

34

P29417

BUSHING

40 x 50 x 70

2шт.

35

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

4шт.

1

P853134

LINKAGE YOKE

YOKE

1шт.

3

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

8шт.

4

P35975

BUSHING

55 x 70 x 48

2шт.

5

P50347

HANDLED SHAFT

PIN

4шт.

6

P28478

WASHER

65 x 41 x 4

4шт.

7

P35557

SPLIT PIN

8 x 80

4шт.

8

P853135

ARM

2шт.

10

P28767

BUSHING

40 x 55 x 45

4шт.

11

P229153

2шт.

12

P50346

HEADED PIN

PIN

2шт.

13

P30859

BOLT

SCREW/BOLT

2шт.

14

P34818

WASHER

2шт.

15

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

16

P853128

SHELL

1шт.

18

P204031

BLADE

1шт.

19

P204027

STIFFENER

REINFORCEMENT

2шт.

20

P29417

BUSHING

40 x 50 x 70

2шт.

21

P35953

4шт.

22

P50356

HEADED PIN

PIN

4шт.

23

P35510

SPLIT PIN

2 x 20

4шт.

24

P35005

WASHER

4шт.

25

P104077

TOOTH

5шт.

26

P33863

SCREW

/BOLT, M16 x 75

5шт.

27

P35006

WASHER

5шт.

28

P134547

SAFETY NUT

5шт.

29

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

30

P853129

SHELL

1шт.

32

P204030

BLADE

1шт.

33

P204027

STIFFENER

REINFORCEMENT

2шт.

34

P29417

BUSHING

40 x 50 x 70

2шт.

35

P35993

BUSHING,M40 x 50 x 28

40 x 50 x 28

4шт.
