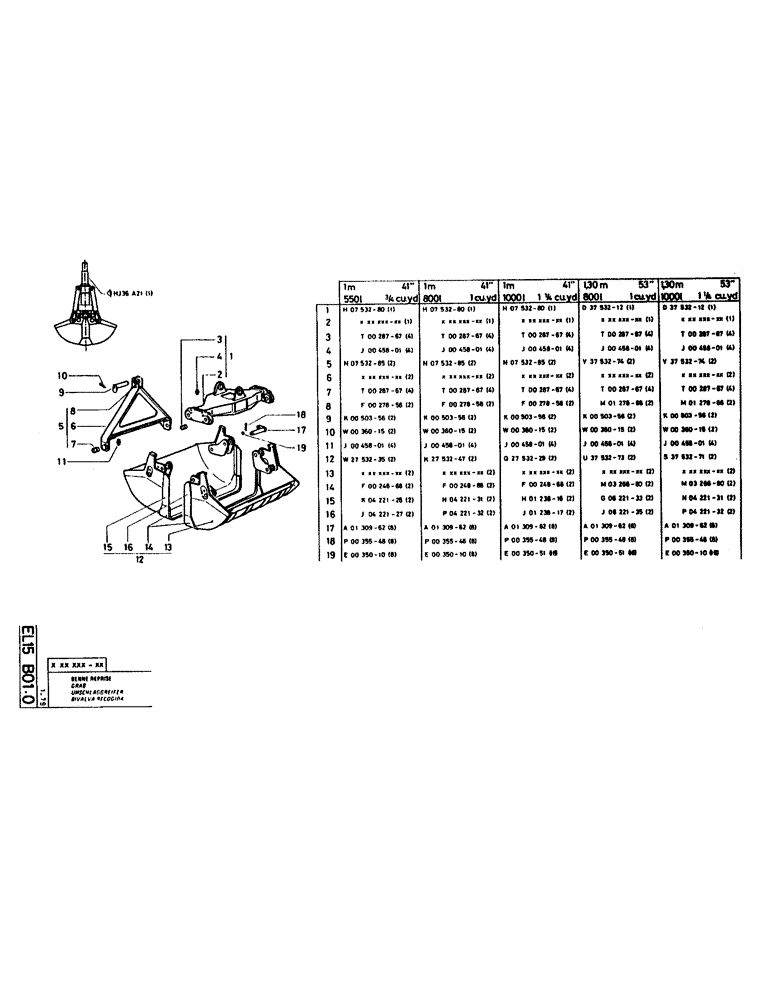

Запчасти Case LC80M (140[2]) - GRAB, 1M 1000L (41" 1 1/4 CU. YD.)

1

P753280

1шт.

3

P28767

BUSHING

40 x 55 x 45

4шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

5

P753285

ARM

2шт.

7

P28767

BUSHING

40 x 55 x 45

4шт.

8

P27858

SHAFT LOCK

2шт.

9

P50356

HEADED PIN

PIN

2шт.

10

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

11

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

12

P2753229

SHELL

2шт.

14

P24868

BLADE

2шт.

15

P123816

STIFFENER

2шт.

16

P123817

STIFFENER

2шт.

17

P130962

8шт.

18

P35548

SPLIT PIN/SAFETY PIN

SPLIT PIN, 6 x 70

8шт.

19

P35051

WASHER

16шт.
