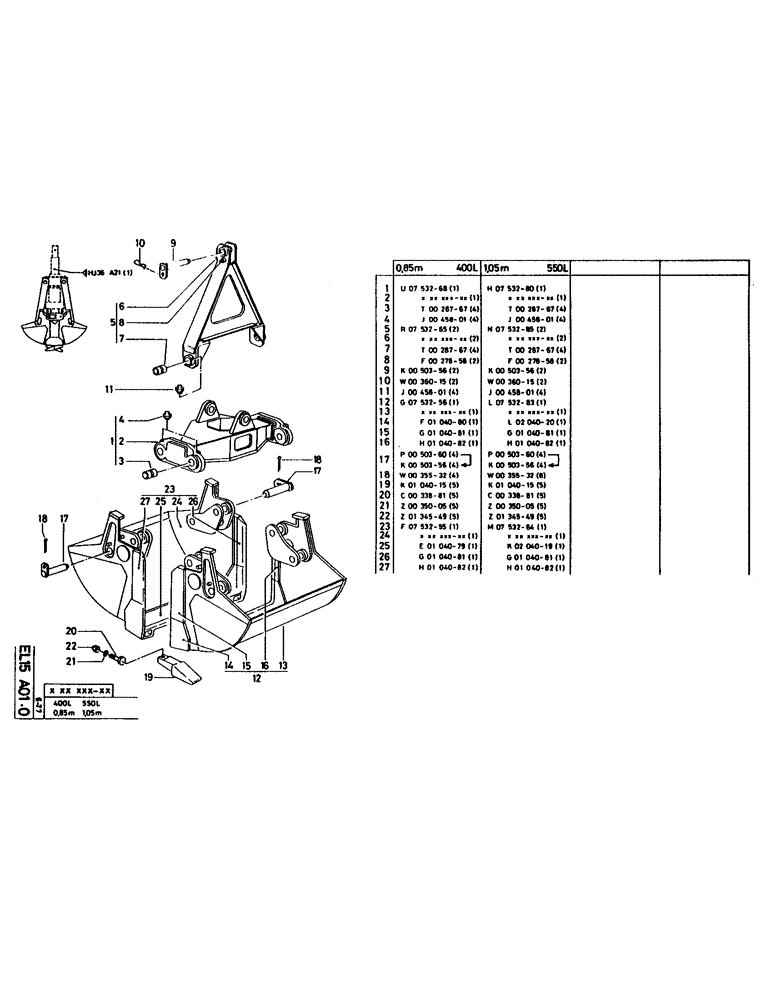

Запчасти Case LC80M (139) - 0,85M 400L

1

P753268

1шт.

3

P28767

BUSHING

40 x 55 x 45

4шт.

3

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

5

P753265

2шт.

7

P28767

BUSHING

40 x 55 x 45

4шт.

8

P27858

SHAFT LOCK

2шт.

9

P50356

HEADED PIN

PIN

2шт.

10

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

11

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

12

P753256

SHELL

1шт.

14

P104080

BLADE

1шт.

15

P104081

STIFFENER

1шт.

16

P104082

STIFFENER

1шт.

17

P50360

HEADED PIN

PIN, HEADED

4шт.

17

P50356

HEADED PIN

PIN

4шт.

18

P35532

SPLIT PIN

4 x 50

4шт.

19

P104015

TOOTH

5шт.

20

P33881

SCREW

/BOLT, M14 x 60

5шт.

21

P35005

WASHER

5шт.

22

P134549

SAFETY NUT

5шт.

23

P753255

SHELL

1шт.

25

P104079

BLADE

1шт.

26

P104081

STIFFENER

1шт.

27

P104082

STIFFENER

1шт.
