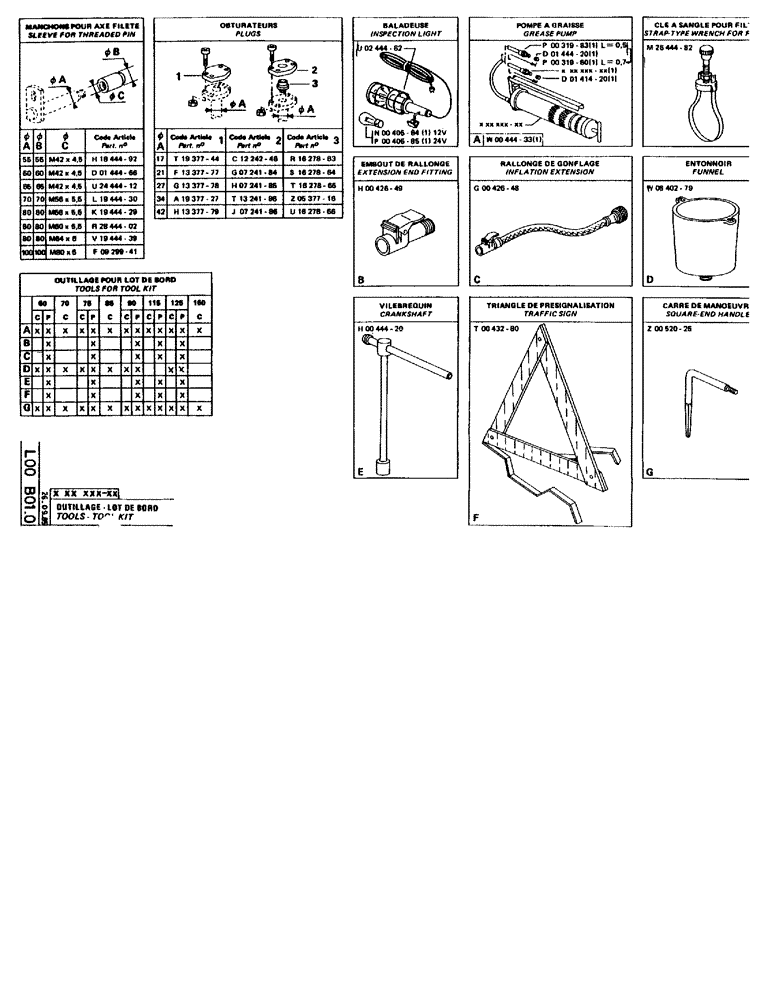

Запчасти Case 90BCL (391[08]) - FUNNEL (05) - UPPERSTRUCTURE CHASSIS

XXXXXXXX

1шт.

H1844492

TRANSMISSION SLEEVE

55, for threaded pin

1шт.

D144466

TRANSMISSION SLEEVE

60, for threaded pin

1шт.

U2444412

TRANSMISSION SLEEVE

65, for threaded pin

1шт.

L1944430

TRANSMISSION SLEEVE

70, for threaded pin

1шт.

K1944429

TRANSMISSION SLEEVE

80, for threaded pin

1шт.

R2844402

TRANSMISSION SLEEVE

80, for threaded pin

1шт.

V1944439

TRANSMISSION SLEEVE

80, for threaded pin

1шт.

F929941

CONE

100, sleeve for threaded pin

1шт.

17

T19377-44, plugs

1шт.

21

F13377-77, plugs

1шт.

27

G13377-78, plugs

1шт.

34

A19377-27, plugs

1шт.

42

H13377-79, plugs

1шт.

N40584

LAMP

12V, inspection light

1шт.

P40585

LAMP

24V, inspection light

1шт.

U244462

LAMP

inspection light

1шт.

a

W44433

PUMP

grease

1шт.

PP31983

HOSE

grease pump, L=0.5

1шт.

D151068

PIN

grease pump

1шт.

P31960

HOSE

grease pump, L=0.7

1шт.

XXXXXXXX

grease pump

1шт.

D141420

TUBE

grease pump

1шт.

XXXXXXXX

1шт.

M2644482

KEY

strap type wrench for filter

1шт.

b

H42649

END FITTING

strap type wrench for filter

1шт.

c

G42648

EXTENSION

inflation

1шт.

d

W840279

FUNNEL

crankshaft

1шт.

e

H44420

CRANKSHAFT

1шт.

f

T43280

TRAFFIC SIGN

1шт.

g

Z52025

PLATE,SMALL SQUARE

square end handle

1шт.
