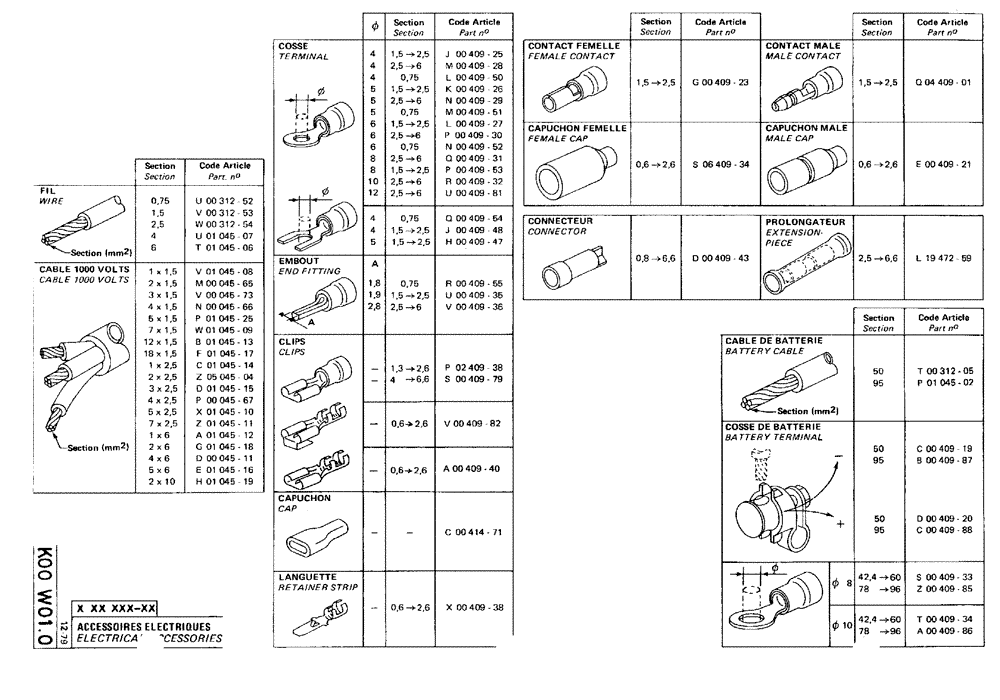

Запчасти Case 75C (K00 W01.0) - ELECTRICAL ACCESSORIES (06) - ELECTRICAL SYSTEMS

u00312-52

U31252

ELECTRICAL WIRE

WIRE 0,75 mm²

1шт.

v00312-53

P31253

ELECTRICAL WIRE

WIRE 1,5 mm²

1шт.

w00312-54

P31254

ELECTRICAL WIRE

WIRE 2,5 mm²

1шт.

u01045-07

P104507

CABLE

4 mm²

1шт.

t01045-06

P104506

CABLE

6 mm²

1шт.

v01045-08

P104508

CABLE

1 x 1,5 mm²

1шт.

m00045-65

P4565

CABLE

2 x 1,5 mm²

1шт.

v00045-73

P4573

CABLE

3 x 1,5 mm²

1шт.

n00045-66

P4566

CABLE

4 x 1,5 mm²

1шт.

p01045-25

P104525

CABLE

5 x 1,5 mm²

1шт.

w01045-09

P104509

CABLE

7 x 1,5 mm²

1шт.

b01045-13

P104513

CABLE

12 x 1,5 mm²

1шт.

f01045-17

P104517

SPARE PART 18 x 1,5 mm²

1шт.

c01045-14

P104514

CABLE

1 x 2,5 mm²

1шт.

z05045-04

P504504

CABLE

2 x 2,5 mm²

1шт.

d01045-15

P104515

CABLE

3 x 2,5 mm²

1шт.

p00045-67

P4567

CABLE

4 x 2,5 mm²

1шт.

x01045-10

P104510

CABLE

5 x 2,5 mm²

1шт.

z01045-11

P104511

CABLE

7 x 2,5 mm²

1шт.

a01045-12

P104512

CABLE

1 x 6 mm²

1шт.

g01045-18

P104518

CABLE

2 x 6 mm²

1шт.

d00045-11

P4511

CABLE

4 x 6 mm²

1шт.

e01045-16

P104516

CABLE

5 x 6 mm²

1шт.

h01045-19

P104519

CABLE

2 x 10 mm²

1шт.

j00409-25

P40925

TERMINAL CONNECTOR

Ø 4 mm, 1,5 to 2,5 mm²

1шт.

m00409-28

P40928

TERMINAL CONNECTOR

Ø 4 mm, 2,5 to 6 mm²

1шт.

l00409-50

P40950

TERMINAL CONNECTOR

Ø 4 mm, 0,75 mm²

1шт.

k00409-26

P40926

TERMINAL CONNECTOR

Ø 5 mm, 1,5 to 2,5 mm²

1шт.

n00409-29

P40929

TERMINAL CONNECTOR

Ø 5 mm, 2,5 to 6 mm²

1шт.

m00409-51

P40951

TERMINAL CONNECTOR

Ø 5 mm, 0,75 mm²

1шт.

l00409-27

P40927

TERMINAL CONNECTOR

Ø 6 mm, 1,5 to 2,5 mm²

1шт.

p00409-30

P40930

TERMINAL CONNECTOR

Ø 6 mm, 2,5 to 6 mm²

1шт.

n00409-52

P40952

TERMINAL CONNECTOR

Ø 6 mm, 0,75 mm²

1шт.

q00409-31

P40931

TERMINAL CONNECTOR

Ø 8 mm, 2,5 to 6 mm²

1шт.

p00409-53

P40953

TERMINAL CONNECTOR

Ø 8 mm, 1,5 to 2,5 mm²

1шт.

r00409-32

P40932

TERMINAL CONNECTOR

Ø 10 mm, 2,5 to 6 mm²

1шт.

u00409-81

P40981

TERMINAL CONNECTOR

Ø 12 mm, 2,5 to 6 mm²

1шт.

q00409-54

P40954

TERMINAL CONNECTOR

Ø 4 mm, 0,75 mm²

1шт.

j00409-48

P40948

TERMINAL CONNECTOR

Ø 4 mm, 1,5 to 2,5 mm²

1шт.

h00409-47

P40947

TERMINAL CONNECTOR

Ø 5 mm, 1,5 to 2,5 mm²

1шт.

r00409-55

P40955

END FITTING

Ø 1,8 mm, 0,75 mm²

1шт.

u00409-35

P40935

END FITTING

Ø 1,9 mm, 1,5 to 2,5 mm²

1шт.

v00409-36

P40936

END FITTING

Ø 2,8 mm, 2,5 to 6 mm²

1шт.

p02409-38

P240938

TERMINAL CONNECTOR

1,3 to 2,6 mm²

1шт.

s00409-79

P40979

CLIP,ELECTRICAL

4 to 6,6 mm²

1шт.

v00409-82

P40982

CLIP,ELECTRICAL

0,6 to 2,6 mm²

1шт.

a00409-40

P40940

TERMINAL

0,6 to 2,6 mm²

1шт.

c00414-71

P41471

LIGHT FAIRING

1шт.

x00409-38

P40938

CONNECTION

0,6 to 2,6 mm²

1шт.

g00409-23

P40923

BUSHING

1,5 to 2,5 mm²

1шт.

s06409-34

P640934

END FITTING

0,6 to 2,6 mm²

1шт.

d00409-43

P40943

CONNECTION,ELECTRIC

0,8 to 6,6 mm²

1шт.

q04409-01

P440901

CONNECTOR,ELECTRIC

1,5 to 2,5 mm²

1шт.

e00409-21

P40921

END FITTING

0,6 to 2,6 mm²

1шт.

l19472-59

P1947259

CABLE EXTENSION

2,5 to 6,6 mm²

1шт.

t00312-05

P31205

CABLE

50 mm²

1шт.

p01045-02

P104502

CABLE

95 mm²

1шт.

c00409-19

P40919

TERMINAL CONNECTOR

50 mm²

1шт.

b00409-87

P40987

TERMINAL CONNECTOR

95 mm²

1шт.

d00409-20

P40920

CLAMP

50 mm²

1шт.

c00409-88

P40988

TERMINAL CONNECTOR

95 mm²

1шт.

s00409-33

P40933

TERMINAL CONNECTOR

Ø 8 mm, 42,4 to 60 mm²

1шт.

z00409-85

P40985

TERMINAL CONNECTOR

Ø 8 mm, 78 to 96 mm²

1шт.

t00409-34

P40934

TERMINAL CONNECTOR

Ø 10 mm, 42,4 to 60 mm²

1шт.

a00409-86

P40986

TERMINAL CONNECTOR

Ø 10 mm, 78 to 96 mm²

1шт.
