Запчасти Case 75C (HM45 A11.0) - LEVER (05) - UPPERSTRUCTURE CHASSIS

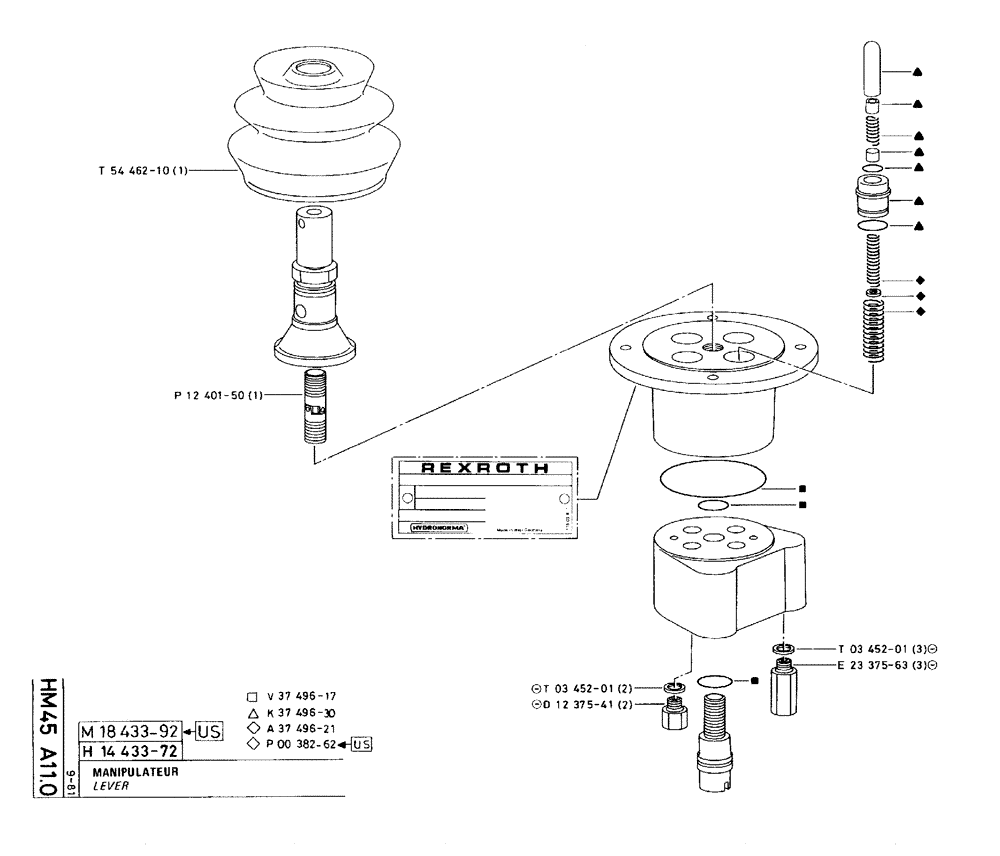

Схема запчастей Case 75C - (HM45 A11.0) - LEVER (05) - UPPERSTRUCTURE CHASSIS
p00382-62
t03452-01
m18433-92
a37496-21
h14433-72
e23375-63
p12401-50
d12375-41
k37496-30
t54462-10
v37496-17
t03452-01

Артикул

Название

Примечание

Количество

h14433-72

H1443372

BLOCK ASSY.

1шт.

m1843392

M1843392

BLOCK ASSY.

1шт.

Part Valid only for United States

1шт.

v37496-17

P3749617

KIT

1шт.

Repair Kit

1шт.

k37496-30

P3749630

KIT

1шт.

Repair Kit

1шт.

a37496-21

P3749621

KIT

1шт.

Repair Kit

1шт.

p00382-62

P38262

KIT

SPARE PART

1шт.

Part Valid only for United States

1шт.

Repair Kit

1шт.

t54462-10

P5446210

BELLOWS

1шт.

p12401-50

P1240150

COUPLING

U JOINT

1шт.

t03452-01

P345201

SEAL

13,2 x 18 x 1,2

2шт.

Part not Sold under the Assembly Number

1шт.

d12375-41

P1237541

UNION

2шт.

Part not Sold under the Assembly Number

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in K37496-30 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in K37496-30 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in K37496-30 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in K37496-30 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in K37496-30 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in K37496-30 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in K37496-30 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in A37496-21 and P00382-62 Repair Kits

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in A37496-21 and P00382-62 Repair Kits

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in A37496-21 and P00382-62 Repair Kits

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in A37496-21 and P00382-62 Repair Kits

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in V37496-17 Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in V37496-17 Repair Kit

1шт.

e23375-63

P2337563

UNION

3шт.

Part not Sold under the Assembly Number

1шт.

Выбрано товаров: 46
