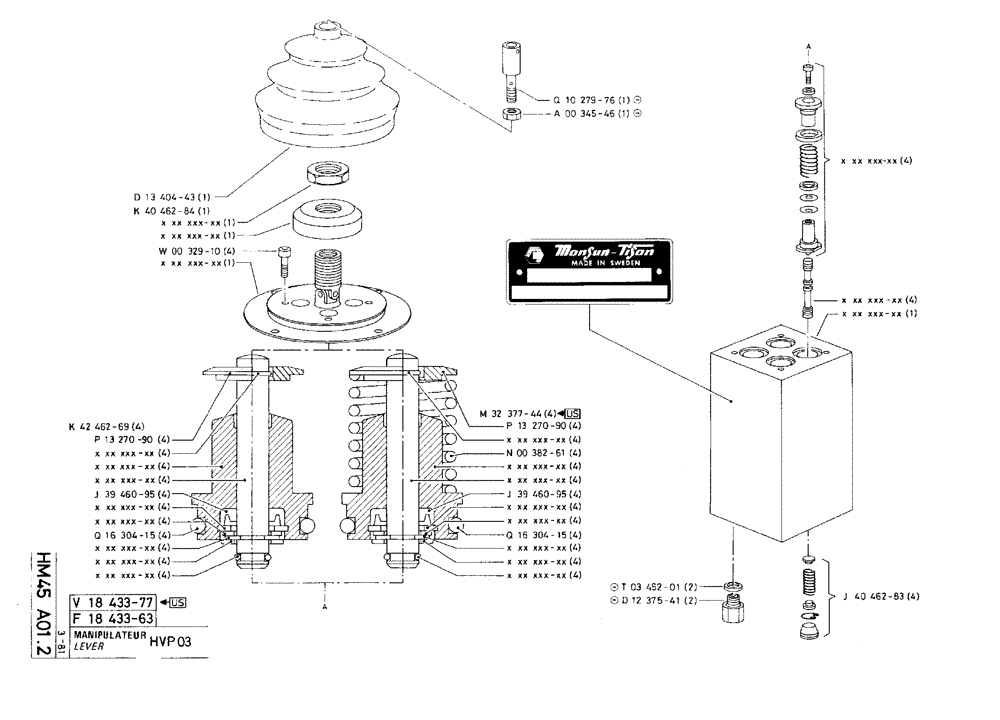

Запчасти Case 75C (HM45 A01.2) - LEVER - HVP 03 (05) - UPPERSTRUCTURE CHASSIS

f18433-63

P1843363

BLOCK ASSY.

1шт.

v1843377

P1843377

BLOCK ASSY.

1шт.

Part Valid only for United States

1шт.

d13404-43

P1340443

BELLOWS

1шт.

k40462-84

P4046284

LARGE PLATE

PLATE, LARGE

1шт.

w00329-10

P32910

SCREW

/BOLT, M6 x 16

4шт.

k42462-69

P4246269

CARTRIDGE

4шт.

p13270-90

P1327090

CUPEL

4шт.

j39460-95

P3946095

SEAL

6 x 11 x 3,5-70

4шт.

q16304-15

P1630415

O-RING

2,4 x 15,3-70

4шт.

q10279-76

P1027976

PIN

1шт.

Part not Sold under the Assembly Number

1шт.

a00345-46

P34546

NUT

1шт.

Part not Sold under the Assembly Number

1шт.

m32377-44

P3237744

CARTRIDGE

4шт.

Part Valid only for United States

1шт.

p13270-90

P1327090

CUPEL

4шт.

n00382-61

P38261

SPRING

4шт.

j39460-95

P3946095

SEAL

6 x 11 x 3,5-70

4шт.

q16304-15

P1630415

O-RING

2,4 x 15,3-70

4шт.

t03452-01

P345201

SEAL

13,2 x 18 x 1,2

2шт.

Part not Sold under the Assembly Number

1шт.

d12375-41

P1237541

UNION

2шт.

Part not Sold under the Assembly Number

1шт.

j40462-83

P4046283

CARTRIDGE

SPARE PART

4шт.
