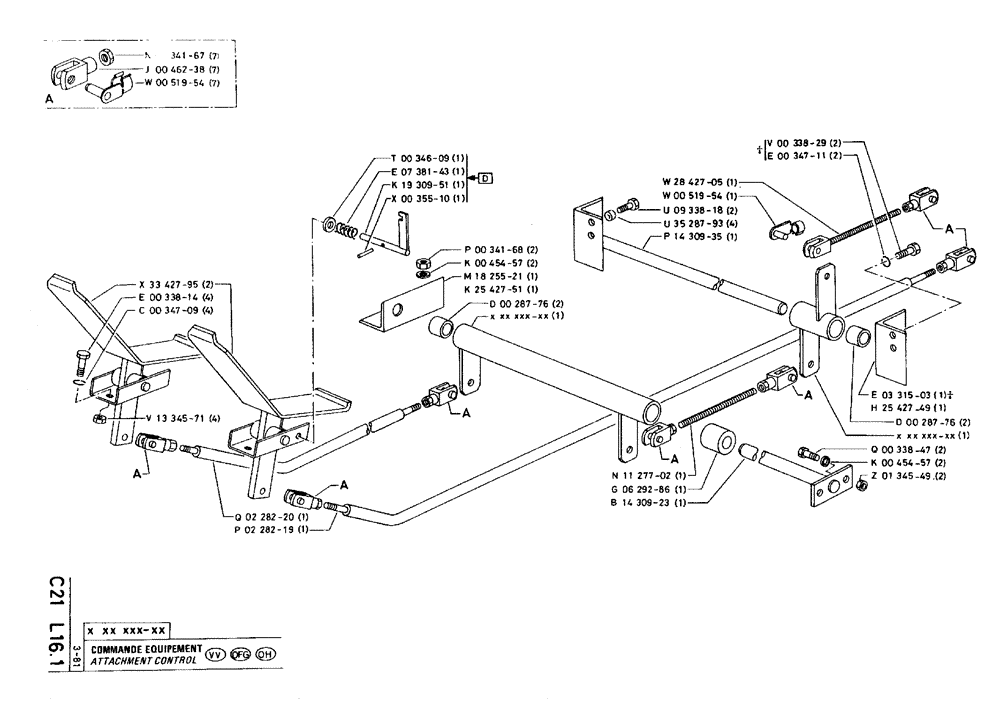

Запчасти Case 75C (C21 L16.1) - ATTACHMENT CONTROL (05) - UPPERSTRUCTURE CHASSIS

n00341-67

337475

NUT,M12, Cl 10

7шт.

j00462-38

P46238

CLEVIS

7шт.

w00519-54

P51954

LARGE PIN

PIN, LARGE

7шт.

x33427-95

X3342795

PEDAL

2шт.

e00338-14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

c00347-09

P34709

WASHER

4шт.

v13345-71

P1334571

NUT

4шт.

q02282-20

Q228220

THREADED ROD

1шт.

p02282-19

P228219

THREADED ROD

1шт.

t00346-09

P34609

WASHER

1шт.

Part Valid only for Germany

1шт.

e07381-43

P738143

COMPRESSION SPRING

1шт.

Part Valid only for Germany

1шт.

k19309-51

K1930951

LARGE PIN

PIN, LARGE

1шт.

Part Valid only for Germany

1шт.

x00355-10

P35510

SPLIT PIN

2 x 20

1шт.

Part Valid only for Germany

1шт.

p00341-68

P34168

NUT

2шт.

k00454-57

P45457

WASHER

32 x 15 x 16

2шт.

m18255-21

M1825521

ANGLE

1шт.

k25427-51

K2542751

CRANK LEVER

1шт.

d00287-76

P28776

SELF LUB RING

20 x 26

2шт.

w28427-05

W2842705

STEM

SPARE PART

1шт.

w00519-54

P51954

LARGE PIN

PIN, LARGE

1шт.

u09338-18

P933818

SCREW

/BOLT, M10 x 40 x 40

2шт.

u35287-93

P3528793

WASHER

12,5 x 8 x 30

4шт.

p14309-35

P1430935

LARGE PIN

SPARE PART

1шт.

n11277-02

N1127702

ROD,THREADED

THREADED ROD

1шт.

g06292-86

G629286

SPACER

1шт.

b14309-23

B1430923

LARGE PIN

PIN, LARGE

1шт.

v00338-29

P33829

SCREW

/BOLT, M10 x 30

2шт.

Not Existing on New Model

1шт.

e00347-11

P34711

WASHER

2шт.

Not Existing on New Model

1шт.

e03315-03

E331503

ANGLE BAR

SPARE PART

1шт.

Not Existing on New Model

1шт.

h25427-49

H2542749

CRANK LEVER

1шт.

d00287-76

P28776

SELF LUB RING

20 x 26

2шт.

q00338-47

P33847

SCREW

/BOLT, M14 x 45

2шт.

k00454-57

P45457

WASHER

32 x 15 x 16

2шт.

z01345-49

P134549

SAFETY NUT

2шт.
