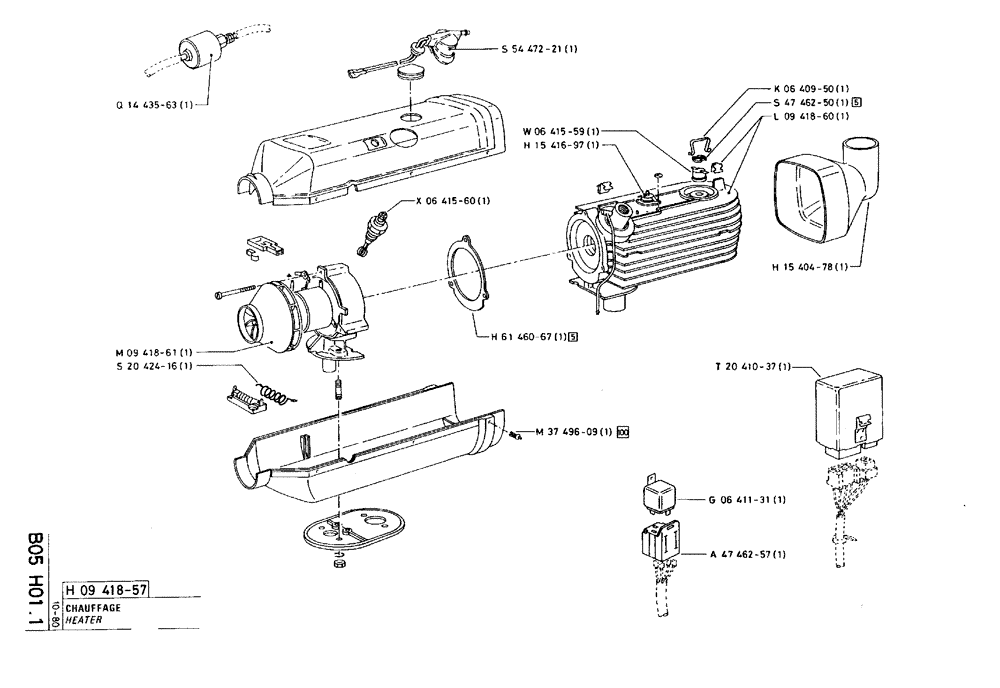

Запчасти Case 75C (B05 H01.1) - HEATER (05) - UPPERSTRUCTURE CHASSIS

h09418-57

P941857

HEATER ASSY.

1шт.

q14435-63

P1443563

PUMP

1шт.

m09418-61

P941861

VENTILATOR

FAN

1шт.

s20424-16

S2042416

RESISTOR

1шт.

s54472-21

P5447221

CABLE

/ROPE

1шт.

w06415-59

P641559

TEMPERATURE SENDER

THERMOSTAT

1шт.

h15416-97

P1541697

SWITCH

1шт.

x06415-60

P641560

HEATER PLUG

1шт.

h61460-67

P6146067

SEAL

1шт.

Kit Containing 5 Identical Parts

1шт.

m37496-09

P3749609

KIT

SET

1шт.

Kit Containing 100 Identical Parts

1шт.

k06409-50

P640950

CLIP

CIRCLIP

1шт.

s47462-50

P4746250

SUPPORT

1шт.

Kit Containing 5 Identical Parts

1шт.

l09418-60

P941860

DISTRIBUTOR

SELECTOR BLOCK

1шт.

h15404-78

P1540478

ORIFICE RING

NOZZLE

1шт.

t20410-37

P2041037

ELECTRICAL CABINET

1шт.

g06411-31

P641131

RELAY

1шт.

a47462-57

P4746257

SUPPORT

1шт.
