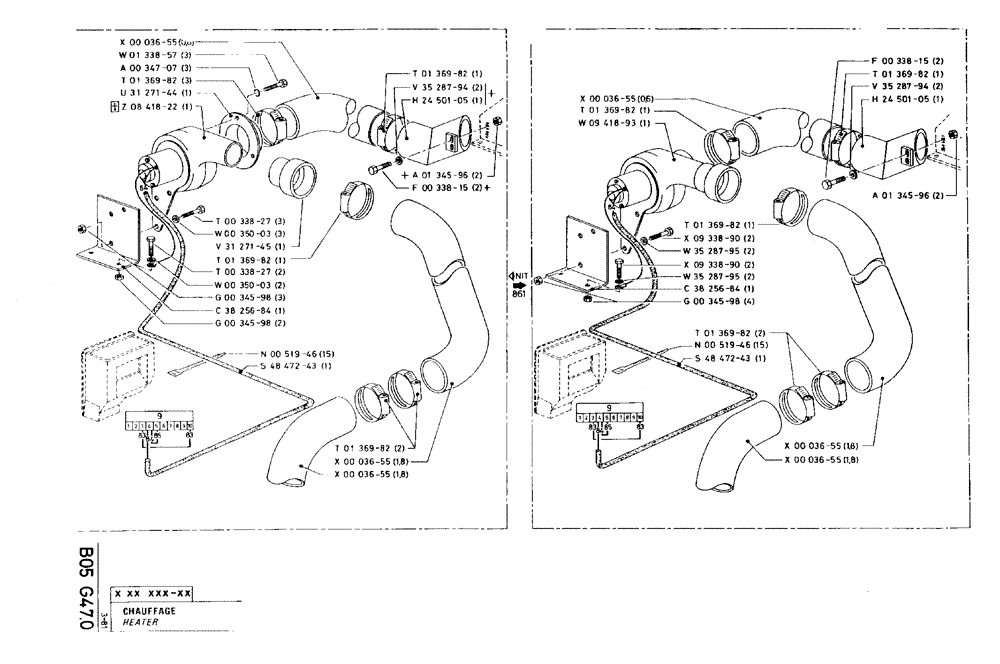

Запчасти Case 75C (B05 G47.0) - HEATER (05) - UPPERSTRUCTURE CHASSIS

x00036-55

P3655

HOSE, BULK

HOSE, METERS PIPE

1шт.

w01338-57

P133857

SCREW

/BOLT, M6 x 12

3шт.

a00347-07

P34707

WASHER

3шт.

t01369-82

P136982

COLLAR CLAMP

3шт.

u31271-44

P3127144

SPARE PART

1шт.

z08418-22

P841822

SPARE PART

1шт.

No Longer Sold

1шт.

t00338-27

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

w00350-03

P35003

WASHER

3шт.

v31271-45

P3127145

SPARE PART

1шт.

t01369-82

P136982

COLLAR CLAMP

1шт.

t00338-27

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

w00350-03

P35003

WASHER

2шт.

g00345-98

P34598

SAFETY NUT

3шт.

c38256-84

C3825684

SUPPORT

SPARE PART

1шт.

g00345-98

P34598

SAFETY NUT

2шт.

n00519-46

P51946

CLAMP

COLLAR

15шт.

s48472-43

S4847243

HARNESS

1шт.

t01369-82

P136982

COLLAR CLAMP

2шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

2шт.

Part Added on New Model

1шт.

h24501-05

H2450105

MANIFOLD

SPARE PART

1шт.

Part Added on New Model

1шт.

a01345-96

P134596

SAFETY NUT

2шт.

Part Added on New Model

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

Part Added on New Model

1шт.

t01369-82

P136982

COLLAR CLAMP

1шт.

x00036-55

P3655

HOSE, BULK

HOSE, METERS PIPE

1,8шт.

x00036-55

P3655

HOSE, BULK

HOSE, METERS

1шт.

t01369-82

P136982

COLLAR CLAMP

1шт.

w09418-93

W941893

VENTILATOR

1шт.

x09338-90

P933890

SCREW

/BOLT, M10 x 30 x 30

2шт.

w35287-95

P3528795

WASHER

10,25 x 7 x 25

2шт.

x09338-90

P933890

SCREW

/BOLT, M10 x 30 x 30

2шт.

w35287-95

P3528795

WASHER

10,25 x 7 x 25

2шт.

c38256-84

C3825684

SUPPORT

SPARE PART

1шт.

g00345-98

P34598

SAFETY NUT

4шт.

t01369-82

P136982

COLLAR CLAMP

2шт.

n00519-46

P51946

CLAMP

COLLAR

15шт.

s48472-43

S4847243

HARNESS

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

2шт.

h24501-05

H2450105

MANIFOLD

SPARE PART

1шт.

a01345-96

P134596

SAFETY NUT

2шт.
