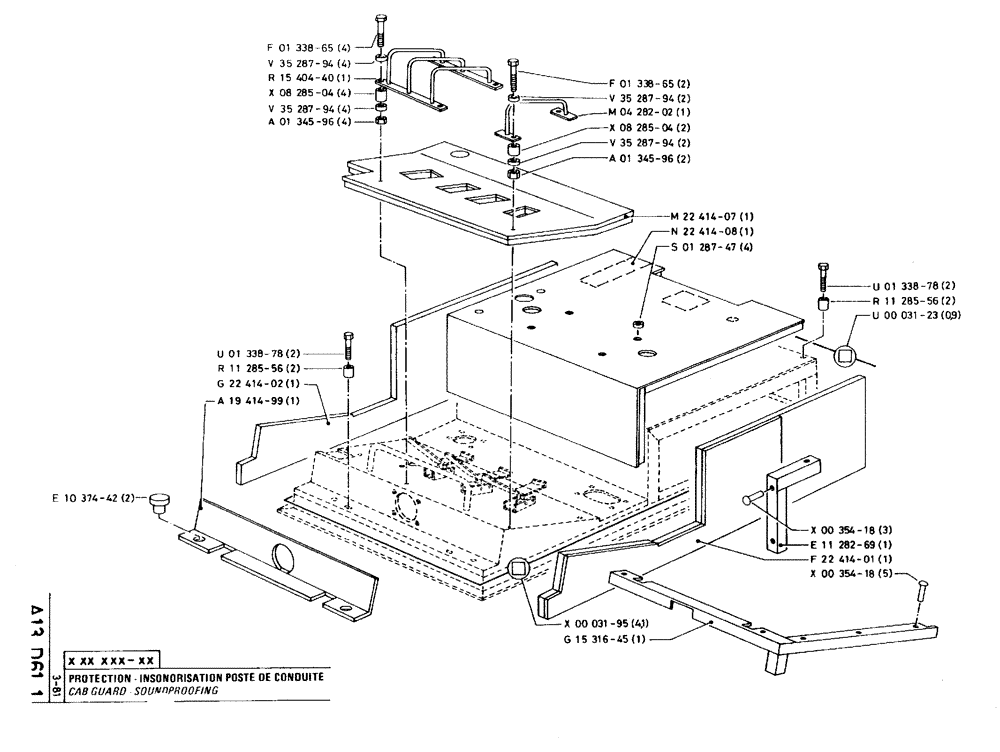

Запчасти Case 75C (A13 D61.1) - CAB GUARD, SOUNDPROOFING (05) - UPPERSTRUCTURE CHASSIS

f01338-65

P133865

SCREW

/BOLT, M8 x 60

4шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

4шт.

r15404-40

P1540440

PROTECTOR

1шт.

x08285-04

P828504

BUSHING

4шт.

a01345-96

P134596

SAFETY NUT

4шт.

u01338-78

P133878

SCREW

/BOLT, M14 x 70

2шт.

r11285-56

R1128556

BUSHING, LARGE

BUSHING,LARGE

2шт.

g22414-02

P2241402

SPARE PART

1шт.

a19414-99

P1941499

LARGE PLATE

PLATE, LARGE

1шт.

e10374-42

P1037442

BLANK-OFF PLUG

2шт.

f01338-65

P133865

SCREW

/BOLT, M8 x 60

2шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

2шт.

m04282-02

M428202

PROTECTOR

1шт.

x08285-04

P828504

BUSHING

2шт.

a01345-96

P134596

SAFETY NUT

2шт.

m22414-07

M2241407

MAT

1шт.

n22414-08

N2241408

MAT

1шт.

s01287-47

P128747

BUSHING, LARGE

BUSHING,LARGE

4шт.

x00031-95

P3195

GASKET

SEAL, 40 x 30

4,1шт.

g15316-45

P1531645

ANGLE BAR

IRON

1шт.

u01338-78

P133878

SCREW

/BOLT, M14 x 70

2шт.

r11285-56

R1128556

BUSHING, LARGE

BUSHING,LARGE

2шт.

u00031-23

P3123

GASKET

SEAL, 30 x 30

1шт.

x00354-18

P35418

RIVET

D4,8 x 17

3шт.

e11282-69

P1128269

ANGLE

PIECE

11шт.

f22414-01

P2241401

LARGE PLATE

PLATE, LARGE

1шт.

x00354-18

P35418

RIVET

D4,8 x 17

5шт.
