(A13 C81.0) - UPPERSTRUCTURE AND COWLING SOUND PROOFING

Запчасти Case 75C (A13 C81.0) - UPPERSTRUCTURE AND COWLING SOUND PROOFING (05) - UPPERSTRUCTURE CHASSIS

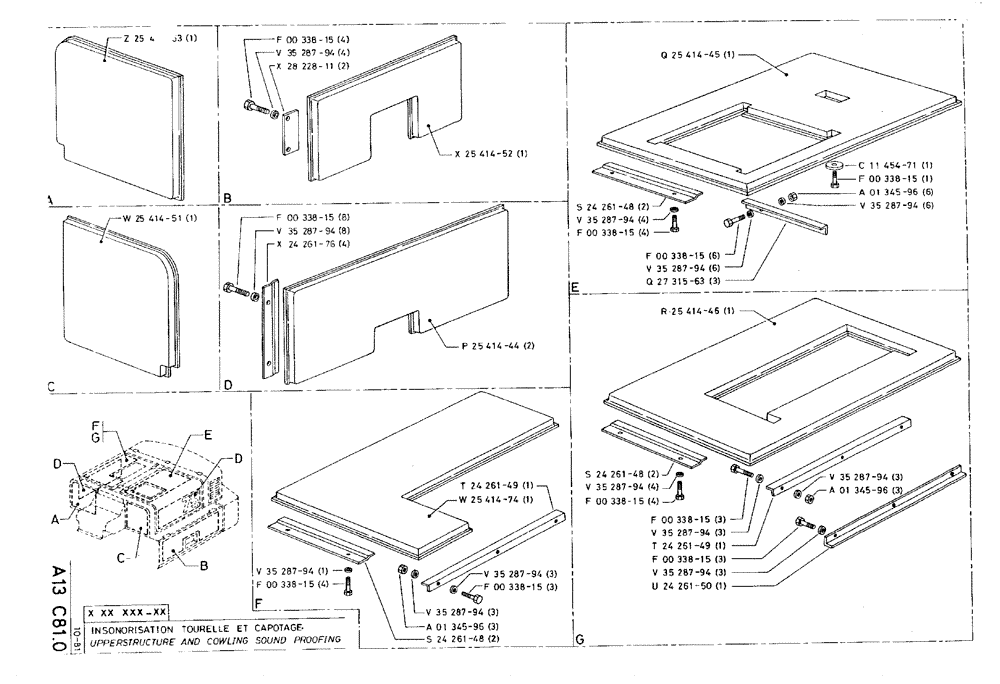

Схема запчастей Case 75C - (A13 C81.0) - UPPERSTRUCTURE AND COWLING SOUND PROOFING (05) - UPPERSTRUCTURE CHASSIS
v35287-94
a01345-96
v35287-94
f00338-15
w25414-51
a01345-96
f00338-15
f00338-15
s24261-48
f00338-15
c11454-71
s24261-48
f00338-15
v35287-94
v35287-94
w25414-74
v35287-94
t24261-49
s24261-48
f00338-15
q27315-63
p25414-44
a01345-96
v35287-94
f00338-15
v35287-94
f00338-15
v35287-94
q25414-45
v35287-94
v35287-94
v35287-94
f00338-15
t24261-49
v35287-94
x25414-52
x24261-76
f00338-15
u24261-50
x28228-11
r25414-46
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

z25414-53

P2541453

PANEL

1шт.

w25414-51

P2541451

PANEL

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

v35287-94

P3528794

WASHER

4шт.

x28228-11

P2822811

PLATE

2шт.

x25414-52

P2541452

PANEL

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

v35287-94

P3528794

WASHER

8шт.

x24261-76

P2426176

HOOD

4шт.

p25414-44

P2541444

LARGE PLATE

SPARE PART

2шт.

t24261-49

P2426149

HOOD

1шт.

w25414-74

P2541474

LARGE PLATE

PLATE, LARGE

1шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

3шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

a01345-96

P134596

SAFETY NUT

3шт.

s24261-48

P2426148

HOOD

2шт.

q25414-45

P2541445

LARGE PLATE

PLATE, LARGE

1шт.

s24261-48

P2426148

HOOD

2шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

4шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

v35287-94

P3528794

WASHER

8,25 x 6 x 20

6шт.

q27315-63

P2731563

ANGLE BAR

3шт.

r25414-46

R2541446

LARGE PLATE

PLATE, LARGE

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

u24261-50

U2426150

PROFILE

1шт.

c11454-71

P1145471

WASHER

10 x 4 x 45

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

a01345-96

P134596

SAFETY NUT

6шт.
