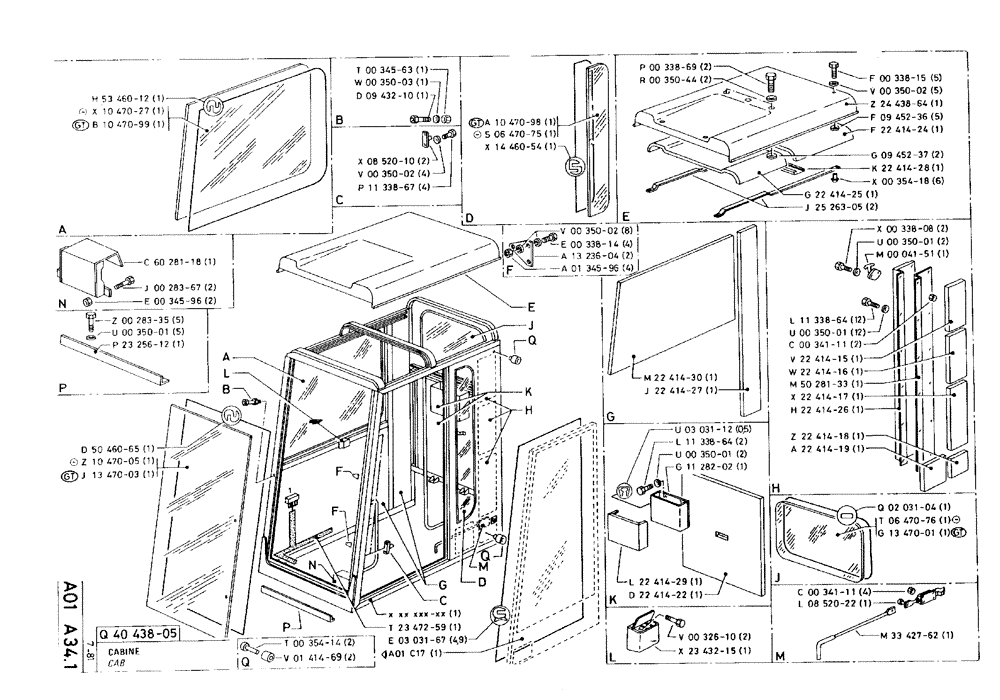

Запчасти Case 75C (A01 A34.1) - CAB (05) - UPPERSTRUCTURE CHASSIS

q40438-05

P4043805

CAB

1шт.

h53460-12

P5346012

SEAL

1шт.

x10470-27

P1047027

GLASS

PANE

1шт.

Part not Sold under the Assembly Number

1шт.

b10470-99

P1047099

GLASS

1шт.

Tinted Glass

1шт.

c60281-18

P6028118

SPARE PART

1шт.

j00283-67

P28367

SCREW

/BOLT, M12 x 25

2шт.

e00345-96

P34596

LOCK NUT

2шт.

z00283-35

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

5шт.

u00350-01

P35001

WASHER

5шт.

p23256-12

P2325612

ANGLE BAR

1шт.

d50460-65

P5046065

SEAL

1шт.

z10470-05

P1047005

SPARE PART

1шт.

Part not Sold under the Assembly Number

1шт.

j13470-03

J1347003

GLASS,CAB

1шт.

Tinted Glass

1шт.

t00345-63

P34563

NUT

1шт.

w00350-03

P35003

WASHER

1шт.

d09432-10

P943210

JET

NOZZLE

1шт.

x08520-10

P852010

CATCH PLATE

2шт.

v00350-02

P35002

WASHER

4шт.

p11338-67

P1133867

SCREW

/BOLT, M8 x 10

4шт.

t00354-14

P35414

RIVET

D4.8 x 30

2шт.

v01414-69

P141469

STOP

2шт.

a10470-98

P1047098

GLASS

1шт.

Tinted Glass

1шт.

s06470-75

P647075

GLASS

PANE

1шт.

Part not Sold under the Assembly Number

1шт.

x14460-54

P1446054

GASKET

SEAL

1шт.

v00350-02

P35002

WASHER

8шт.

e00338-14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

a13236-04

P1323604

HOOD

2шт.

a01345-96

P134596

SAFETY NUT

4шт.

t23472-59

P2347259

HARNESS

wire

1шт.

e03031-67

P303167

GASKET

SEAL

4,9шт.

p00338-69

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

2шт.

r00350-44

P35044

WASHER

2шт.

m22414-30

P2241430

LARGE PLATE

PLATE, LARGE

1шт.

j22414-27

P2241427

LARGE PLATE

PLATE, LARGE

1шт.

u03031-12

P303112

SEAL

1шт.

l11338-64

P1133864

SCREW

/BOLT, M6 x 16

2шт.

u00350-01

P35001

WASHER

2шт.

g11282-02

P1128202

BOX

SPARE PART

1шт.

l22414-29

P2241429

LINING

1шт.

d22414-22

P2241422

LARGE PLATE

PLATE, LARGE

1шт.

v00326-10

P32610

SCREW

/BOLT, M4 x 16

2шт.

x23432-15

P2343215

ASH TRAY

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

v00350-02

P35002

WASHER

5шт.

z24438-64

P2443864

ROOF

1шт.

f09452-36

P945236

WASHER

6 x 16 x 1

5шт.

f22414-24

P2241424

LARGE PLATE

PLATE, LARGE

1шт.

g09452-37

P945237

WASHER

15 x 45 x 2

2шт.

k22414-28

P2241428

LINING

1шт.

x00354-18

P35418

RIVET

D4.8 x 17

6шт.

g22414-25

P2241425

LARGE PLATE

PLATE, LARGE

1шт.

j25263-05

P2526305

PLATE

2шт.

x00338-08

P33808

SCREW

/BOLT, M6 x 30 x 30

2шт.

u00350-01

P35001

WASHER

2шт.

m00041-51

P4151

COAT HOOK

1шт.

l11338-64

P1133864

SCREW

/BOLT, M6 x 16

12шт.

u00350-01

P35001

WASHER

12шт.

c00341-11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

v22414-15

P2241415

LARGE PLATE

PLATE, LARGE

1шт.

w22414-16

P2241416

LARGE PLATE

PLATE, LARGE

1шт.

m50281-33

P5028133

LINING

1шт.

x22414-17

P2241417

LARGE PLATE

PLATE, LARGE

1шт.

h22414-26

P2241426

LARGE PLATE

PLATE, LARGE

1шт.

z22414-18

P2241418

LARGE PLATE

PLATE, LARGE

1шт.

a22414-19

P2241419

LARGE PLATE

PLATE, LARGE

1шт.

q02031-04

P203104

PACKAGE, REPAIR

SEAL

1шт.

t06470-76

P647076

GLASS

PANE

1шт.

Part not Sold under the Assembly Number

1шт.

g13470-01

P1347001

GLASS

1шт.

Tinted Glass

1шт.

c00341-11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

l08520-22

P852022

LOCK

1шт.

m33427-62

P3342762

ROD

1шт.
