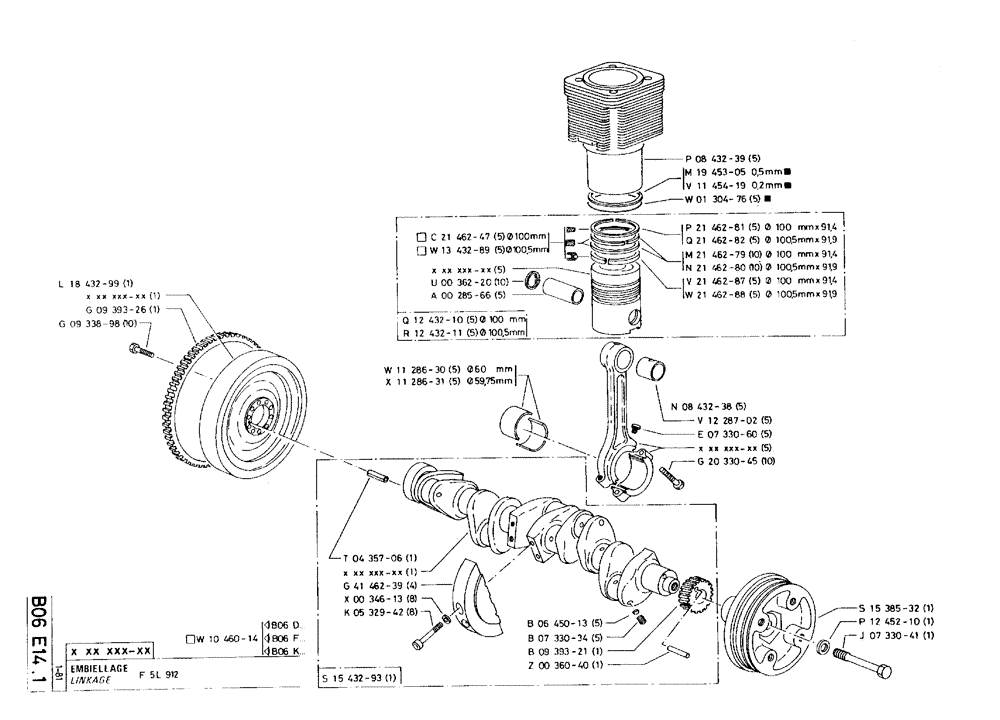

Запчасти Case 75C (B06 E14.1) - LINKAGE - F5L 912 (01) - ENGINE

l18432-99

P1843299

SPARE PART

1шт.

g09393-26

P939326

DEUTZ PART

RING slewing

1шт.

g09338-98

P933898

BOLT

RING slewing

10шт.

c21462-47

P2146247

SPARE PART Ø 100 mm

5шт.

Repair Kit

1шт.

w13432-89

P1343289

SPARE PART Ø 100,5 mm

5шт.

Repair Kit

1шт.

u00362-20

P36220

DEUTZ PART

10шт.

a00285-66

P28566

DEUTZ PART

5шт.

q12432-10

P1243210

SPARE PART Ø 100 mm

5шт.

r12432-11

P1243211

SPARE PART Ø 100,5 mm

5шт.

w11286-30

P1128630

DEUTZ PART

Ø 60 mm

5шт.

x11286-31

P1128631

DEUTZ PART

Ø 59,75 mm

5шт.

t04357-06

P435706

DEUTZ PART

PIN split/safety, 8 x 18

1шт.

g41462-39

P4146239

DEUTZ PART

COUNTERWEIGHT

4шт.

x00346-13

P34613

WASHER

8шт.

k05329-42

P532942

SCREW

/BOLT, M12 x 60

8шт.

s15432-93

P1543293

SPARE PART

1шт.

b06450-13

P645013

DEUTZ PART

BUTTON

5шт.

b07330-34

P733034

BOLT

SCREW/BOLT

5шт.

b09393-21

P939321

DEUTZ PART

1шт.

z00360-40

P36040

DEUTZ PART

PIN split/safety 8 x 45

1шт.

p08432-39

P843239

SLEEVE

5шт.

m19453-05

P1945305

DEUTZ PART

SHIM, 0,5 mm

1шт.

Included in Repair Kit

1шт.

v11454-19

P1145419

DEUTZ PART

SHIM, 0,2 mm

1шт.

Included in Repair Kit

1шт.

w01304-76

P130476

SPARE PART

5шт.

Included in Repair Kit

1шт.

p21462-81

P2146281

SEGMENT

Ø 100 mm x 91,4

5шт.

q21462-82

P2146282

SPARE PART Ø 100,5 mm x 91,9

5шт.

m21462-79

P2146279

SPARE PART Ø 100 mm x 91,4

10шт.

n21462-80

P2146280

SPARE PART Ø 100,5 mm x 91,9

10шт.

v21462-87

P2146287

SPARE PART Ø 100 mm x 91,4

5шт.

w21462-88

P2146288

SPARE PART Ø 100,5 mm x 91,9

5шт.

n08432-38

P843238

SPARE PART

5шт.

v12287-02

P1228702

DEUTZ PART

5шт.

e07330-60

P733060

SPARE PART

5шт.

g20330-45

P2033045

SPARE PART

10шт.

s15385-32

P1538532

SPARE PART

1шт.

p12452-10

P1245210

WASHER

1шт.

j07330-41

P733041

BOLT

SCREW/BOLT, M24 x 2

1шт.

w10460-14

P1046014

DEUTZ PART

SET OF SEALS

1шт.

Repair Kit

1шт.
