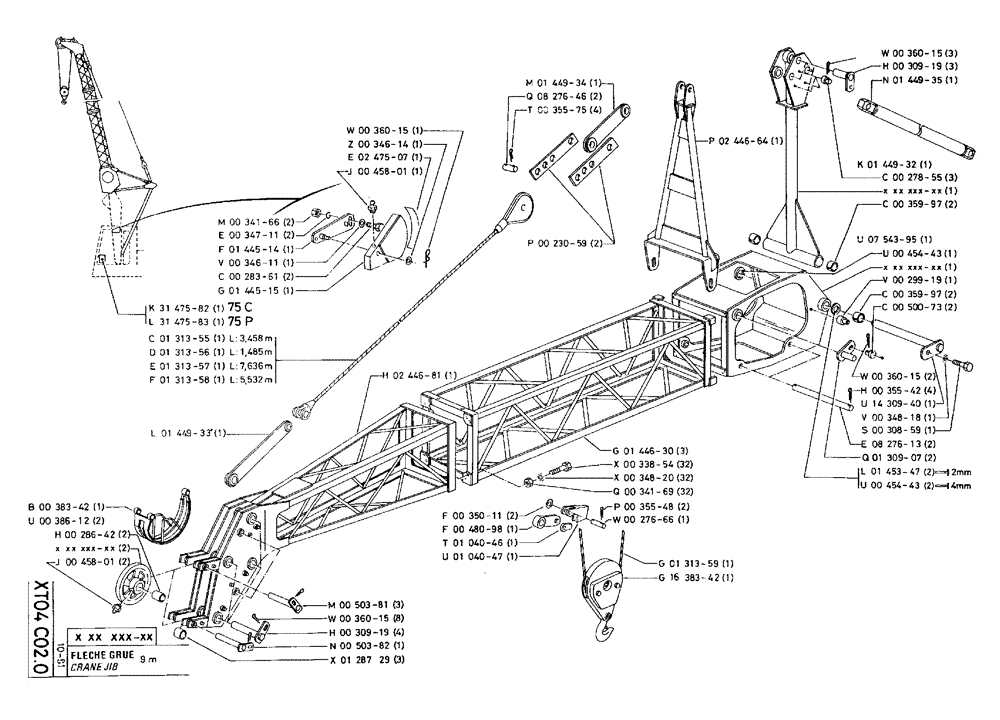

Запчасти Case 75C (XT04 C02.0) - CRANE JIB - 9 M (18) - ATTACHMENT ACCESSORIES

w00360-15

P36015

SPLIT PIN/SAFETY PIN

1шт.

z00346-14

P34614

WASHER

1шт.

e02475-07

P247507

SPARE PART

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

2шт.

e00347-11

P34711

WASHER

2шт.

f01445-14

P144514

SUPPORT

1шт.

v00346-11

P34611

WASHER

1шт.

c00283-61

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

g01445-15

P144515

SECTOR

1шт.

k31475-82

P3147582

75 C

1шт.

l31475-83

L3147583

ADHESIVE

75 P

1шт.

c01313-55

C131355

SLING

L:3,458 m

1шт.

d01313-56

D131356

SLING

L:1,485 m

1шт.

e01313-57

E131357

SLING

L:7,636 m

1шт.

f01313-58

F131358

SLING

L:5,532 m

1шт.

l01449-33

P144933

SPARE PART

1шт.

u00383-42

U38342

1шт.

u00386-12

U38612

PULLEY

2шт.

h00286-42

P28642

SPARE PART

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

m01449-34

P144934

1шт.

q08276-46

Q827646

LARGE PIN

PIN, LARGE

2шт.

t00355-75

P35575

SPARE PART

4шт.

p00230-59

P23059

2шт.

h02446-81

H244681

JIB HEAD SECTION

1шт.

g01446-30

G144630

ELEMENT

3шт.

x00338-54

P33854

SCREW

/BOLT, M16 x 50

32шт.

x00348-20

P34820

WASHER

32шт.

q00341-69

P34169

NUT

32шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

6 x 70

2шт.

w00276-66

P27666

SPARE PART

1шт.

g01313-59

G131359

CABLE

1шт.

c00383-43

C38343

PULLEY BLOCK

1шт.

f00350-11

P35011

WASHER

2шт.

f00480-98

F48098

WELDABLE LUG

1шт.

t01040-45

P104046

SHANK, BUCKET TOOTH

1шт.

u01040-47

P104047

ROPE ANCHOR BOX

1шт.

m00503-81

M50381

LARGE PIN

PIN, LARGE

3шт.

w00360-15

P36015

SPLIT PIN/SAFETY PIN

8шт.

h00309-19

P30919

HEADED PIN

4шт.

n00503-82

P50382

SPARE PART

1шт.

x01287-29

P128729

BUSHING

3шт.

p02446-64

P244664

ARM

1шт.

w00360-15

P36015

SPLIT PIN/SAFETY PIN

3шт.

h00309-19

P30919

HEADED PIN

3шт.

n01449-35

N144935

TRUSS ROD

1шт.

k01449-32

P144932

1шт.

c00278-55

P27855

SHAFT LOCK

3шт.

c00359-97

P35997

BUSHING, LARGE

BUSHING,LARGE

2шт.

u07543-95

U754395

JIB FOOT SECTION

1шт.

u00454-43

P45443

WASHER

1шт.

v00299-19

P29919

SPARE PART

1шт.

c00359-97

P35997

BUSHING, LARGE

BUSHING,LARGE

2шт.

c00500-73

P50073

SHAFT LOCK

2шт.

w00360-15

P36015

SPLIT PIN/SAFETY PIN

2шт.

h00355-42

P35542

SPLIT PIN

4шт.

u14309-40

P1430940

LARGE PIN

PIN, LARGE

1шт.

v00348-18

P34818

WASHER

1шт.

s00308-59

P30859

BOLT

/BOLT

1шт.

e08276-13

E827613

LARGE PIN

PIN, LARGE

2шт.

q01309-07

P130907

HEADED PIN

2шт.

l01453-47

P145347

WASHER

61 x 110 x 2, 2 mm in thickness

2шт.

u00454-43

P45443

WASHER

4 mm in thickness

2шт.
