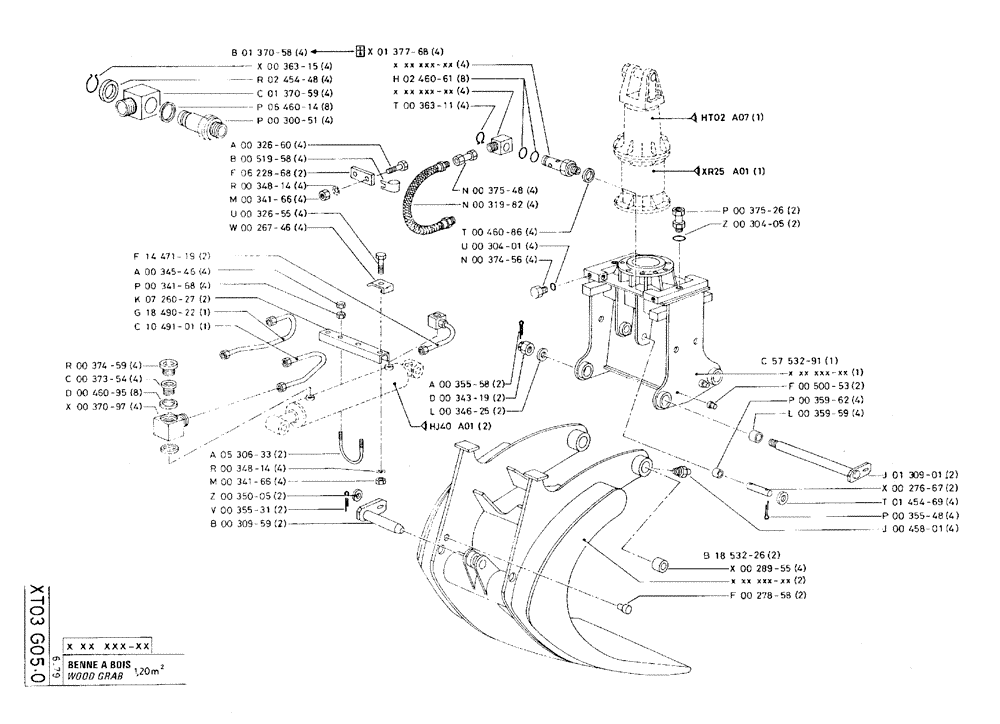

Запчасти Case 75C (XT03 G05.0) - WOOD GRAB - 1,20 M² (18) - ATTACHMENT ACCESSORIES

b01370-58

P137058

FITTING

CONNECTION

4шт.

Replaces X01377-68

1шт.

x00363-15

P36315

RING, SNAP

RING SNAP RING locking

4шт.

r02454-48

P245448

WASHER

4шт.

c01370-59

P137059

BODY

4шт.

p06460-14

P646014

SPECIAL MAT. SEAL

8шт.

p00300-51

P30051

SHAFT

4шт.

a00326-60

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

b00519-58

P51958

CLAMP

COLLAR

4шт.

f06228-68

P622868

PLATE

2шт.

r00348-14

P34814

WASHER

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

u00326-55

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

4шт.

w00267-46

P26746

PIPE CLAMP

4шт.

f14471-19

P1447119

SPARE PART 11 x 17

2шт.

a00345-46

P34546

NUT

4шт.

p00341-68

P34168

NUT

4шт.

k07260-27

P726027

SHIN

BRACKET

2шт.

g18490-22

P1849022

PIPE

11 x 17

1шт.

c10491-01

P1049101

SPARE PART 11 x 17

1шт.

r00374-59

P37459

PLUG

D27 x 1,5

4шт.

c00373-54

P37354

END FITTING

4шт.

d00460-95

P46095

BUSHING

8шт.

x00370-97

P37097

FITTING

CONNECTION

4шт.

a05306-33

P530633

STIRRUP

BRACKET, 115 x 114

2шт.

r00348-14

P34814

WASHER

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

z0350-05

P35005

WASHER

2шт.

v00355-31

P35531

SPLIT PIN

4 x 40

2шт.

b00309-59

P30959

HEADED PIN

2шт.

x01377-68

X137768

FITTING

CONNECTION

4шт.

No Longer Sold

1шт.

h02460-61

P246061

SPARE PART

8шт.

t00363-11

P36311

CIRCLIP

RING locking

4шт.

n00375-48

P37548

PIPE

11 x 17

4шт.

n00319-82

P31982

HOSE

4шт.

t00460-86

P46086

BUSHING

4шт.

u00304-01

P30401

O-RING,2.5mm Thk x 18.5mm ID

4шт.

n00374-56

P37456

PLUG

4шт.

a00355-58

P35558

SPLIT PIN

8 x 100

2шт.

d00343-19

P34319

SLOTTED NUT

2шт.

l00346-25

P34625

WASHER

2шт.

p00375-26

P37526

SUN VISOR

CONNECTION

2шт.

z00304-05

P30405

O-RING

SEAL, 2,62 x 32,99-80

2шт.

c57532-91

P5753291

SPARE PART

1шт.

f00500-53

P50053

SHAFT LOCK

2шт.

p00359-62

P35962

BUSHING

40 x 50 x 35

4шт.

l00359-59

P35959

BUSHING

55 x 70 x 35

4шт.

j01309-01

P130901

SPARE PART

2шт.

x00276-67

P27667

SPARE PART

2шт.

t01454-69

P145469

WASHER

41 x 75 x 5

4шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

6 x 70

4шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

b18532-26

B1853226

SHELL

2шт.

x00289-55

P28955

SPARE PART 55 x 75 x 65

4шт.

f00278-58

P27858

SHAFT LOCK

2шт.
