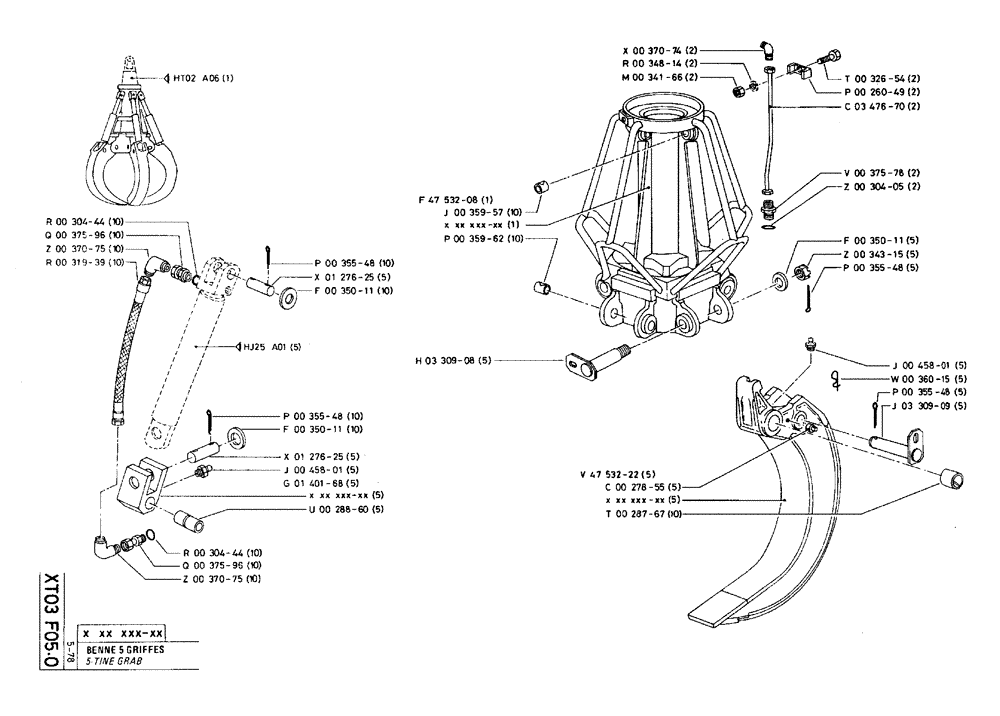

Запчасти Case 75C (XT03 F05.0) - 5-TINE GRAB (18) - ATTACHMENT ACCESSORIES

r00304-44

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2,5 x 15

10шт.

q00375-96

P37596

FITTING

CONNECTION

10шт.

z00370-75

P37075

ELBOW

10шт.

r00319-39

P31939

HOSE

10шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

6 x 70

10шт.

x01276-25

P127625

PIN

5шт.

f00350-11

P35011

WASHER

10шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

5шт.

g01401-58

P140168

COUPLING

5шт.

u00288-60

P28860

BUSHING

5шт.

r00304-44

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2,5 x 15

10шт.

q00375-96

P37596

FITTING

CONNECTION

10шт.

z00370-75

P37075

ELBOW

10шт.

f47532-08

P4753208

FRAME

1шт.

j00359-57

P35957

BUSHING

10шт.

p00359-62

P35962

BUSHING

40 x 50 x 35

10шт.

h03309-08

P330908

HEADED PIN

5шт.

x00370-74

P37074

ELBOW-CONNECTION

ELBOW-CONECTION

2шт.

r00348-14

P34814

WASHER

2шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

2шт.

v47532-22

P4753222

SPARE PART

5шт.

c00278-55

P27855

SHAFT LOCK

5шт.

t00287-67

P28767

BUSHING

40 x 55 x 45

10шт.

t00326-54

P32654

SCREW

2шт.

p00260-49

P26049

PIPE CLAMP

2шт.

c03476-70

P347670

PIPE

2шт.

v00375-78

P37578

UNION

2шт.

z00304-05

P30405

O-RING

SEAL, 2,62 x 32,99-80

2шт.

f00360-11

P35011

WASHER

5шт.

z00343-15

P34315

NUT

5шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

6 x 70

5шт.

w00360-15

P36015

SPLIT PIN/SAFETY PIN

5шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

6 x 70

5шт.

j03309-09

P330909

HEADED PIN

5шт.
