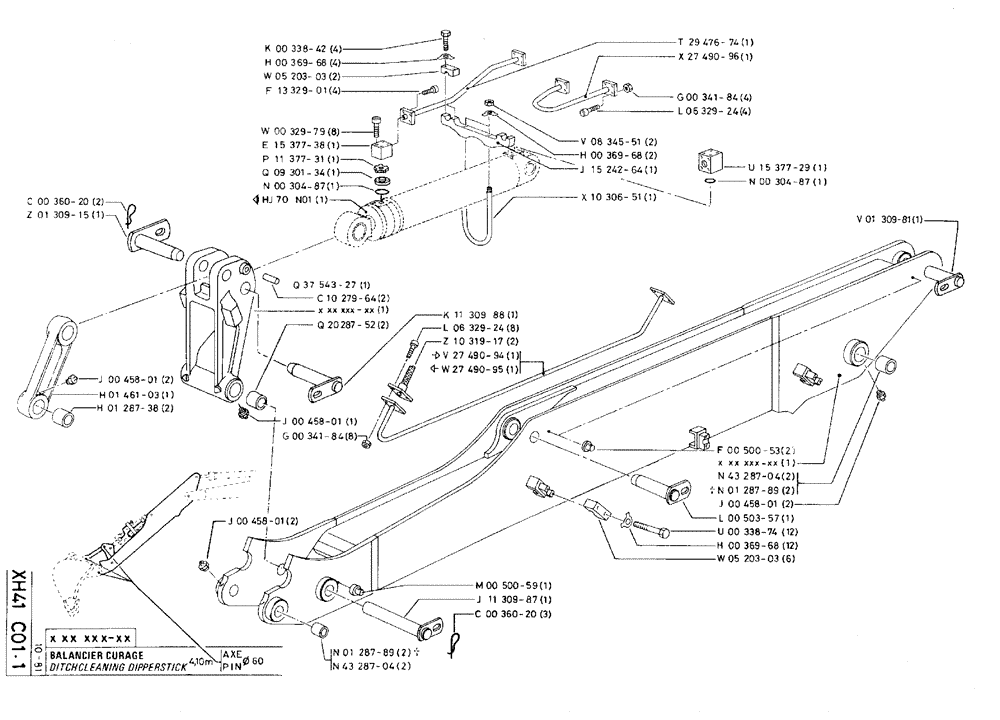

Запчасти Case 75C (XH41 C01.1) - DITCH CLEANING DIPPERSTICK - 4,10 M, PIN Ø 60 (14) - DIPPERSTICKS

c00360-20

P36020

SPLIT PIN/SAFETY PIN

2шт.

z01309-15

P130915

HEADED PIN

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

h01461-03

P146103

CONNECTING ROD

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

2шт.

k00338-42

P33842

SCREW

M12 x 50

4шт.

h00369-68

P36968

BRAKE

locking

4шт.

w05203-03

P520303

SHIN

BRACKET

2шт.

f13329-01

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

w00329-79

P32979

SCREW

M14 x 80

8шт.

e15377-38

P1537738

BODY

1шт.

p11377-31

P1137731

VALVE POPPET

1шт.

q09301-34

P930134

STOP

1шт.

n00304-87

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2,62 x 37,77-80

1шт.

q37543-27

Q3754327

LINKAGE YOKE

1шт.

c10279-64

C1027964

LARGE PIN

SPARE PART

2шт.

q20287-52

P2028752

BUSHING

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

g00341-84

86500689

NUT,M10 x 1.5, Cl 10

4шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

k11309-88

P1130988

HEADED PIN

1шт.

l06329-24

L632924

SCREW

M10 x 55

8шт.

z10319-17

P1031917

HOSE

2шт.

v27490-94

P2749094

PIPE

1шт.

Right Hand

1шт.

w27490-95

P2749095

PIPE

1шт.

Left Hand

1шт.

m00500-59

P50059

SHAFT LOCK

1шт.

j11309-87

J1130987

PIN

1шт.

c00360-20

P36020

SPLIT PIN/SAFETY PIN

3шт.

n01287-89

P128789

BUSHING

60 x 75 x 65

2шт.

Not Existing on New Model

1шт.

n43287-04

P4328704

SPARE PART

2шт.

t29476-74

P2947674

PIPE

1шт.

x27490-96

P2749096

PIPE

1шт.

g00341-84

86500689

NUT,M10 x 1.5, Cl 10

4шт.

l06329-24

L632924

SCREW

BOLT, M10 x 50

4шт.

v08345-51

100016

NUT,M10 x 1.5, Cl 8

2шт.

h00369-68

P36968

BRAKE

locking

2шт.

j15242-64

P1524264

SHIN

1шт.

x10306-51

P1030651

STIRRUP

1шт.

u15377-29

P1537729

SHIN

1шт.

n00304-87

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2,62 x 37,77-80

1шт.

v01309-81

P130981

LARGE PIN

PIN, LARGE

1шт.

f00500-53

P50053

SHAFT LOCK

2шт.

n43287-04

P4328704

SPARE PART

2шт.

n01287-89

P128789

BUSHING

60 x 75 x 65

2шт.

Not Existing on New Model

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

l00503-57

P50357

HEADED PIN

1шт.

u00338-74

P33874

SCREW

M12 x 60

12шт.

h00369-68

P36968

BRAKE

locking

12шт.

w05203-03

P520303

SHIN

BRACKET

6шт.
