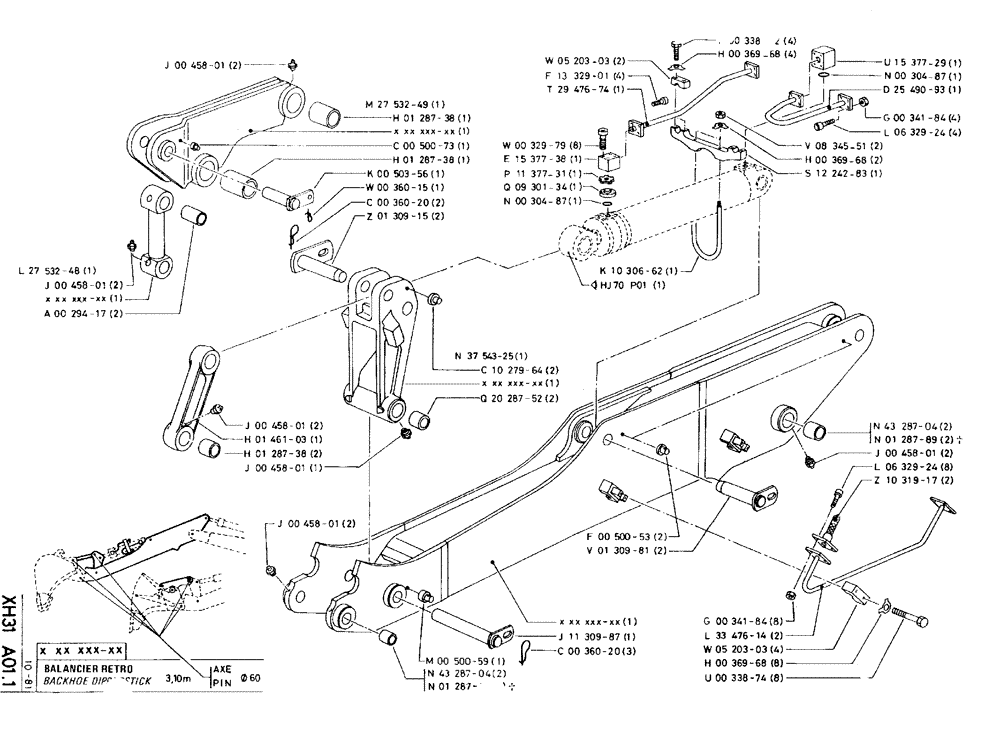

Запчасти Case 75C (XH31 A01.1) - BACKHOE DIPPERSTICK - 3,10 M, PIN Ø 60 (14) - DIPPERSTICKS

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

l27532-48

P2753248

SPARE PART

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

a00294-17

P29417

BUSHING

40 x 50 x 70

2шт.

m27532-49

P2753249

SPARE PART

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

1шт.

c00500-73

P50073

SHAFT LOCK

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

1шт.

k00503-56

P50356

HEADED PIN

1шт.

w00360-15

P36015

SPLIT PIN/SAFETY PIN

1шт.

c00360-20

P36020

SPLIT PIN/SAFETY PIN

2шт.

z01309-15

P130915

HEADED PIN

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

h01461-03

P146103

CONNECTING ROD

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

w05203-03

P520303

SHIN

BRACKET

2шт.

f13329-01

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

t29476-74

P2947674

PIPE

1шт.

w00329-79

P32979

SCREW

/BOLT, M14 x 80

8шт.

e15377-38

P1537738

BODY

1шт.

p11377-31

P1137731

VALVE POPPET

1шт.

q09301-34

P930134

STOP

1шт.

n00304-87

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2,62 x 37,77-80

1шт.

k10306-62

P1030662

STIRRUP

1шт.

n37543-25

N3754325

LINKAGE YOKE

1шт.

c10279-64

C1027964

LARGE PIN

SPARE PART

2шт.

q20287-52

P2028752

BUSHING

2шт.

f00500-53

P50053

SHAFT LOCK

2шт.

v01309-81

P130981

LARGE PIN

PIN, LARGE

2шт.

j11309-87

J1130987

PIN

1шт.

c00360-20

P36020

SPLIT PIN/SAFETY PIN

3шт.

m00500-59

P50059

SHAFT LOCK

1шт.

n43287-04

N4328704

BUSHING

2шт.

n01287-89

P128789

BUSHING

60 x 75 x 65

2шт.

Not Existing on New Model

1шт.

h00369-68

P36968

BRAKE

locking

4шт.

u15377-29

P1537729

SHIN

1шт.

n00304-87

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2,62 x 37,77-80

1шт.

d25490-93

P2549093

PIPE

1шт.

d25490-93

P2549093

PIPE

NUT

4шт.

l06329-24

L632924

SCREW

/BOLT, M10 x 50

4шт.

v08345-51

100016

NUT,M10 x 1.5, Cl 8

2шт.

h00369-68

P36968

BRAKE

2шт.

s12242-83

P1224283

SHIN

1шт.

n43287-04

P4328704

SPARE PART

2шт.

n01287-89

P128789

BUSHING

0 x 75 x 65

2шт.

Not Existing on New Model

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

l06329-24

L632924

SCREW

/BOLT, M10 x 55

8шт.

z10319-17

P1031917

HOSE

2шт.

g00341-84

86500689

NUT,M10 x 1.5, Cl 10

8шт.

l33476-14

P3347614

PIPE

2шт.

w05203-03

P520303

SHIN

BRACKET

4шт.

h00369-68

P36968

BRAKE

locking

8шт.

u00338-74

P33874

SCREW

/BOLT, M12 x 60

8шт.
