(HT08 B07.0) - SWING JOINT PIVOT - 8P

Запчасти Case 75C (HT08 B07.0) - SWING JOINT PIVOT - 8P (07) - HYDRAULIC SYSTEM

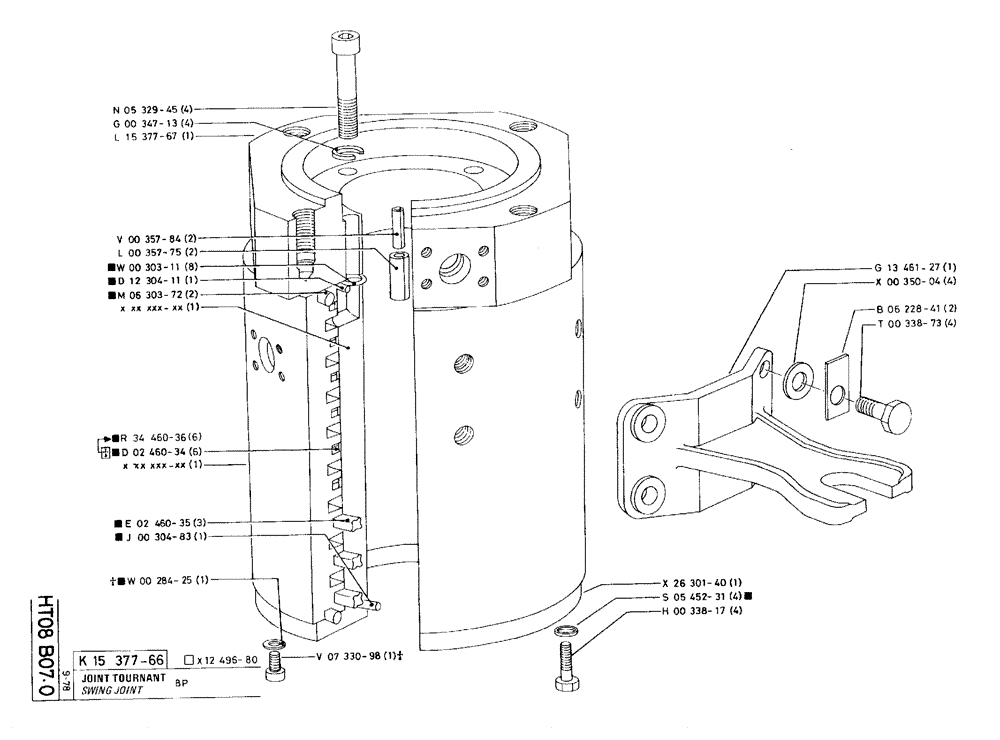

Схема запчастей Case 75C - (HT08 B07.0) - SWING JOINT PIVOT - 8P (07) - HYDRAULIC SYSTEM
x26301-40
l15377-67
h00338-17
m06303-72
d02460-34
l00357-75
v00357-84
g13461-27
g00347-13
r34460-36
b06228-41
x12496-80
w00284-25
w00303-11
x00350-04
j00304-83
t00338-73
n05329-45
k15377-66
s05452-31
d12304-11
v07330-98
e02460-35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

k15377-66

P1537766

HYDRAULIC SWIVEL

1шт.

x12496-80

P1249680

SEAL PACKAGE

1шт.

Repair Kit

1шт.

n05329-45

P532945

SCREW

/BOLT, M12 x 65

4шт.

g00347-13

P34713

WASHER

4шт.

l15377-67

P1537767

HEAD

1шт.

v00357-84

P35784

SPLIT PIN/SAFETY PIN

2шт.

l00357-75

P35775

SPLIT PIN/SAFETY PIN

2шт.

w00303-11

P30311

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL, 2,62 x 13,94-80

8шт.

Included in Repair Kit

1шт.

d12304-11

P1230411

O-RING

1шт.

Included in Repair Kit

1шт.

m06303-72

P630372

O-RING

SEAL, 6,99 x 196,22-80

2шт.

Included in Repair Kit

1шт.

r34460-36

P3446036

GASKET

6шт.

Replaces D02460-34

1шт.

Included in Repair Kit

1шт.

d02460-34

P246034

SPECIAL MAT. SEAL

6шт.

No Longer Sold

1шт.

Included in Repair Kit

1шт.

e02460-35

P246035

GASKET

3шт.

Included in Repair Kit

1шт.

j00304-83

P30483

O-RING

1шт.

Included in Repair Kit

1шт.

w00284-25

P28425

COMPOSITE SEAL

1шт.

Not Existing on New Model

1шт.

Included in Repair Kit

1шт.

v07330-98

P733098

SCREW

1шт.

Not Existing on New Model

1шт.

g13461-27

P1346127

SUPPORT

BRACKET

1шт.

x00350-04

P35004

WASHER

4шт.

b06228-41

P622841

BRAKE

locking

2шт.

t00338-73

P33873

SCREW

/BOLT, M12 x 25

4шт.

x26301-40

P2630140

WASHER

1шт.

s05452-31

P545231

WASHER

4шт.

Included in Repair Kit

1шт.

h00338-17

P33817

SCREW

/BOLT, M8 x 30

4шт.
