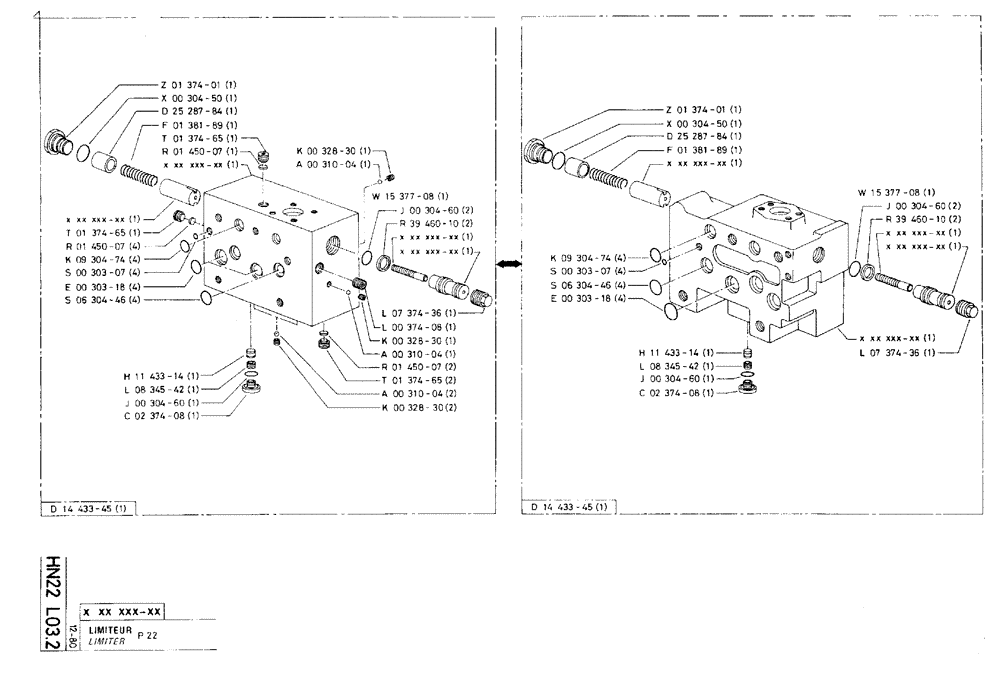

Запчасти Case 75C (HN22 L03.2) - LIMITER - P22 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
d14433-45
P1443345
SPEED LIMITER
1шт.
z01374-01
P137401
PLUG
1шт.
x00304-50
P30450
O-RING,3mm Thk x 36mm ID
3 x 36
1шт.
d25287-84
P2528784
SPARE PART
1шт.
f01381-89
P138189
COMPRESSION SPRING
SPARE PART
1шт.
t01374-65
P137465
PLUG
1шт.
r01450-07
P145007
HOLE PLUG BUTTON
1шт.
t01374-65
P137465
PLUG
1шт.
r01450-07
P145007
HOLE PLUG BUTTON
4шт.
k07304-74
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2,62 x 15,54-80
4шт.
s00303-07
P30307
O-RING
SEAL, 1,9 x 8,9
4шт.
e00303-18
P30318
O-RING
SEAL, 3,6 x 23
4шт.
s06304-46
P630446
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
4шт.
h11433-14
P1143314
VALVE POPPET
1шт.
l08345-42
P834542
NUT
M18 x 1.5
1шт.
j00304-60
P30460
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL, 2,62 x 25,07-80
1шт.
c02374-08
P237408
PLUG
1шт.
k00328-30
P32830
SCREW
/BOLT, M10 x 10
1шт.
a00310-04
P31004
BALL
1шт.
w15328-30
P1537708
SLEEVE
1шт.
j00304-60
P30460
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL, 2,62 x 25,07-80
2шт.
r39460-10
P3946010
BACK-UP RING
2шт.
l07374-36
P737436
SPARE PART
1шт.
l00374-08
P37408
SPARE PART
1шт.
k00328-30
P32830
SCREW
/BOLT, M10 x 10
1шт.
a00310-04
P31004
BALL
1шт.
r01450-07
P145007
HOLE PLUG BUTTON
2шт.
t01374-65
P137465
PLUG
2шт.
a00310-04
P31004
BALL
2шт.
k00328-30
P32830
SCREW
/BOLT, M10 x 10
2шт.
d14433-45
P1443345
SPEED LIMITER
1шт.
z01374-01
P137401
PLUG
1шт.
x00304-50
P30450
O-RING,3mm Thk x 36mm ID
3 x 36
1шт.
d25287-84
P2528784
SPARE PART
1шт.
f01381-89
P138189
COMPRESSION SPRING
SPARE PART
1шт.
k09304-74
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2,62 x 15,54-80
4шт.
s00303-07
P30307
O-RING
SEAL, 1,9 x 8,9
4шт.
s06304-46
P630446
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
4шт.
e00303-18
P30318
O-RING
SEAL, 3,6 x 23
4шт.
h11433-14
P1143314
VALVE POPPET
1шт.
l08345-42
P834542
NUT
M18 x 1,5
1шт.
j00304-60
P30460
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL, 2,62 x 25,07-80
1шт.
c02374-08
P237408
PLUG
1шт.
w15377-08
P1537708
SLEEVE
1шт.
j00304-60
P30460
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL, 2,62 x 25,07-80
2шт.
r39460-10
P3946010
BACK-UP RING
2шт.
l07374-36
P737436
SPARE PART
1шт.
Выбрано товаров: 47
